12. scanCONTROL Gateway

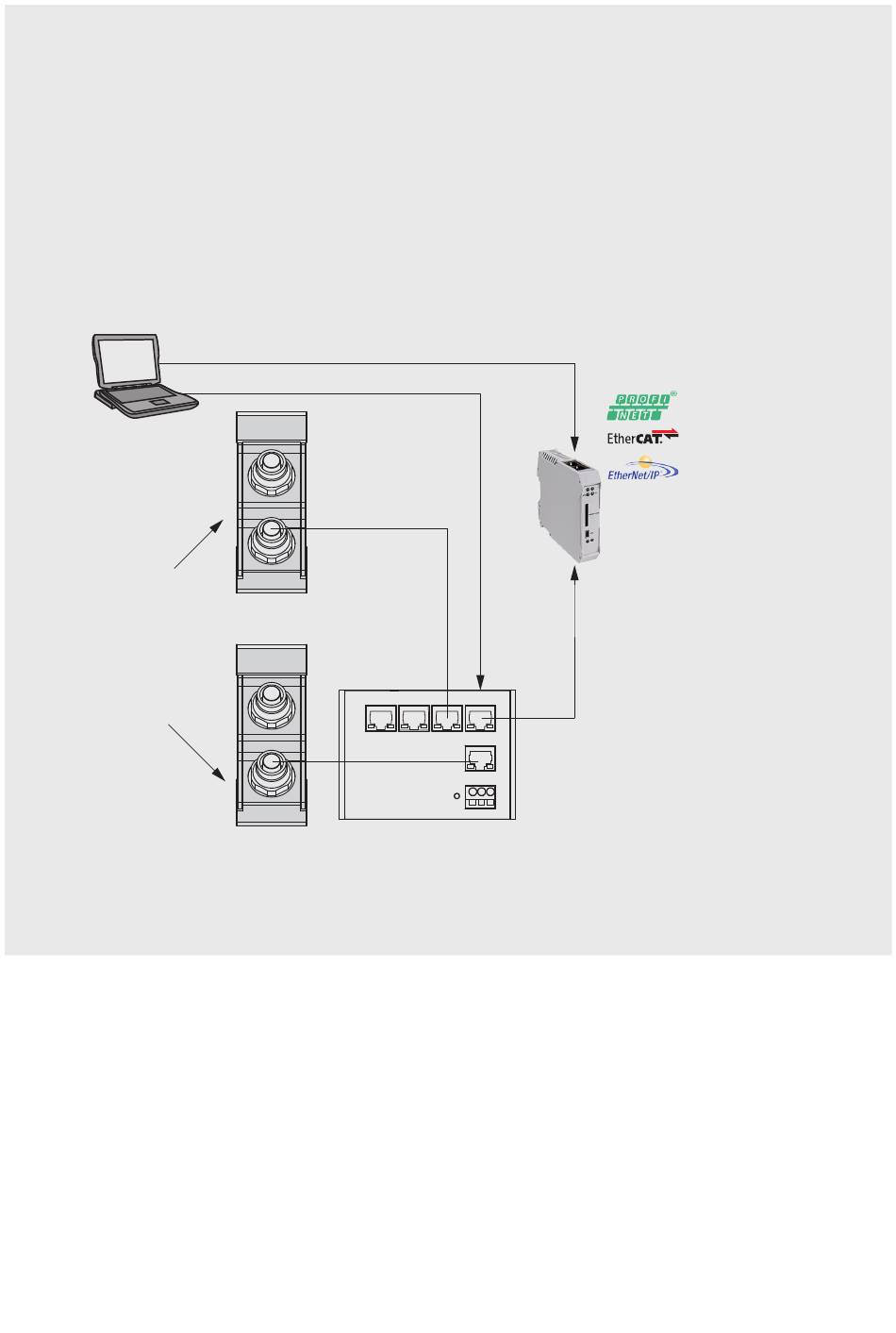

scanCONTROL Gateway allows for scanCONTROL SMART sensors to be integrated
into various fieldbus systems:
- PROFINET
- EtherNet/IP
- EtherCAT
All measurement results obtained from the profile evaluation carried out of a scanCON-
TROL SMART sensor can be transmitted to a PLC via one of these fieldbus systems.
Furthermore, all scanCONTROL sensor settings can be set via the scanCONTROL
Gateway (e. g. Laser on/off or switch User Mode).
Sensor
parameterization
Power supply
Triggering
Encoder
Synchronization
Mode switching
Sensor control
scanCONTROL Gateway can connect up to four scanCONTROL SMART sensors to the
fieldbus. Measurement values are transmitted at up to 500 Hz.
Please refer to TechNote T026 (scanCONTROL fieldbus integration) for more details.
