QUICK START PROCEDURE

To evaluate the performance of
• DC2331A-A without using the multi-chip (master-
slave) feature of the LT8550, follow steps 1–8 of the
procedure below
• DC2331A-A and DC2331A-B using the multi-chip (mas-
ter-slave) feature of the LT8550, follow steps 9–17 of
the procedure below.
INPUT SUPPLY
0V TO 56V
60A
+
+
–
–
+
–
Follow Steps 1–8 to Use DC2331A-A Without the
Multi-Chip (Master-Slave) Feature:
1. Use a single DC2331A-A assembly
2. Prepare to use the SHDN terminal to control the
3. Set the MODE jumper JP4 to FLOAT if phase shedding
4. Set the SYNC jumper JP5 to GND.
– –
+ +

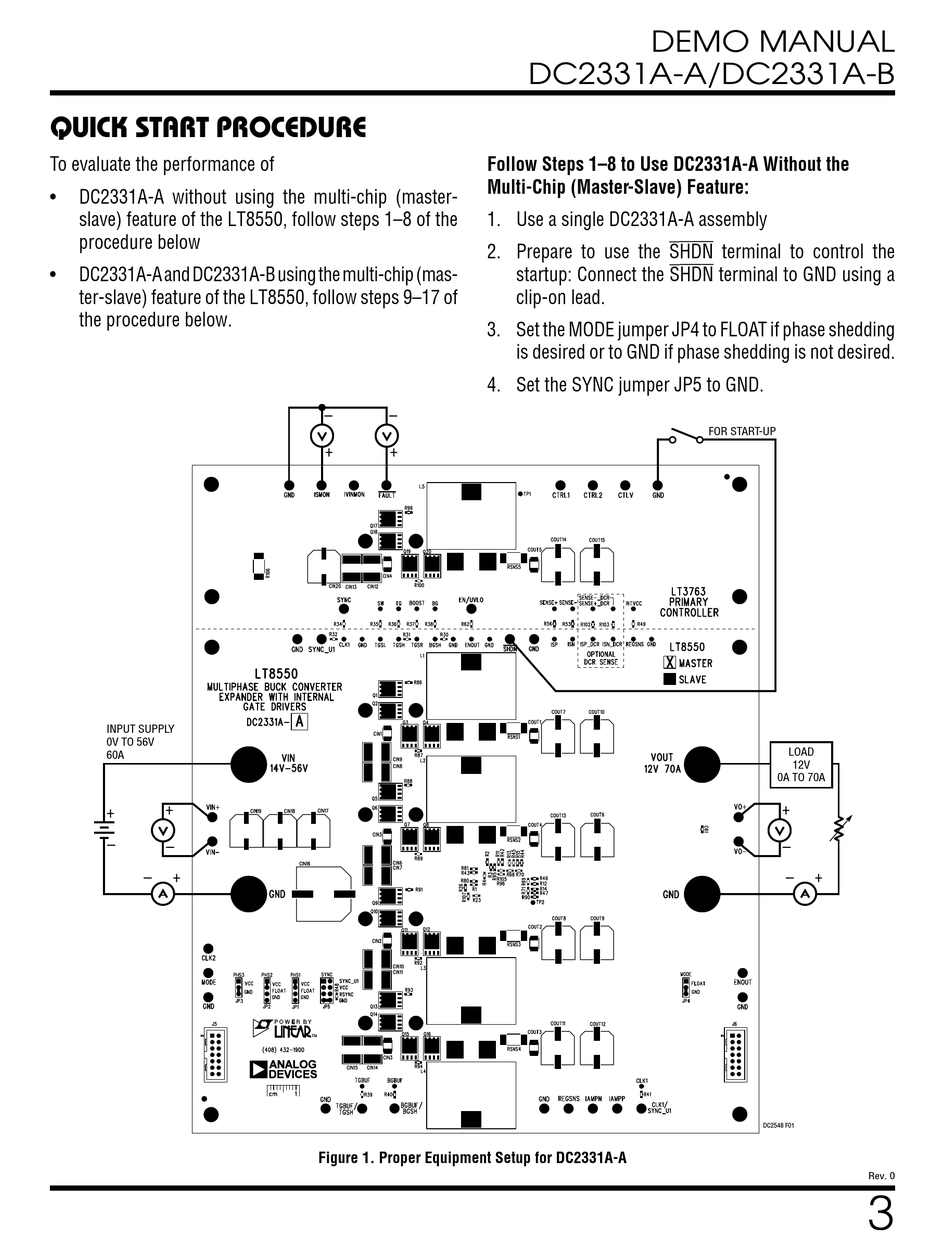

Figure 1. Proper Equipment Setup for DC2331A-A
DEMO MANUAL
DC2331A-A/DC2331A-B
startup: Connect the SHDN terminal to GND using a
clip-on lead.
is desired or to GND if phase shedding is not desired.
FOR START-UP
LOAD
12V
0A TO 70A
+
–
+
–
DC2548 F01
