Ultrathin Dual 14A or Single 28A µModule Regulator
DESCRIPTION
Demonstration circuit 3089A is a dual-output, high effi-
ciency, high density, µModule regulator with 2.7V to 5.75V
input range. Each output can supply 14A maximum load
current. The demo board has a
regulator, which is a dual 14A or single 28A step-down
regulator with digital power system management. Please
see LTM4686B data sheet for more detailed information.
DC3089A powers up to default settings and produce
power based on configuration resistors without the need
for any serial bus communication. This allows easy evalu-
ation of the DC/DC converter. To fully explore the extensive
power system management features of the part, download
the GUI software LTpowerPlay™ onto your PC and use
2
LTC's I
C/SMBus/PMBus dongle DC1613A to connect to

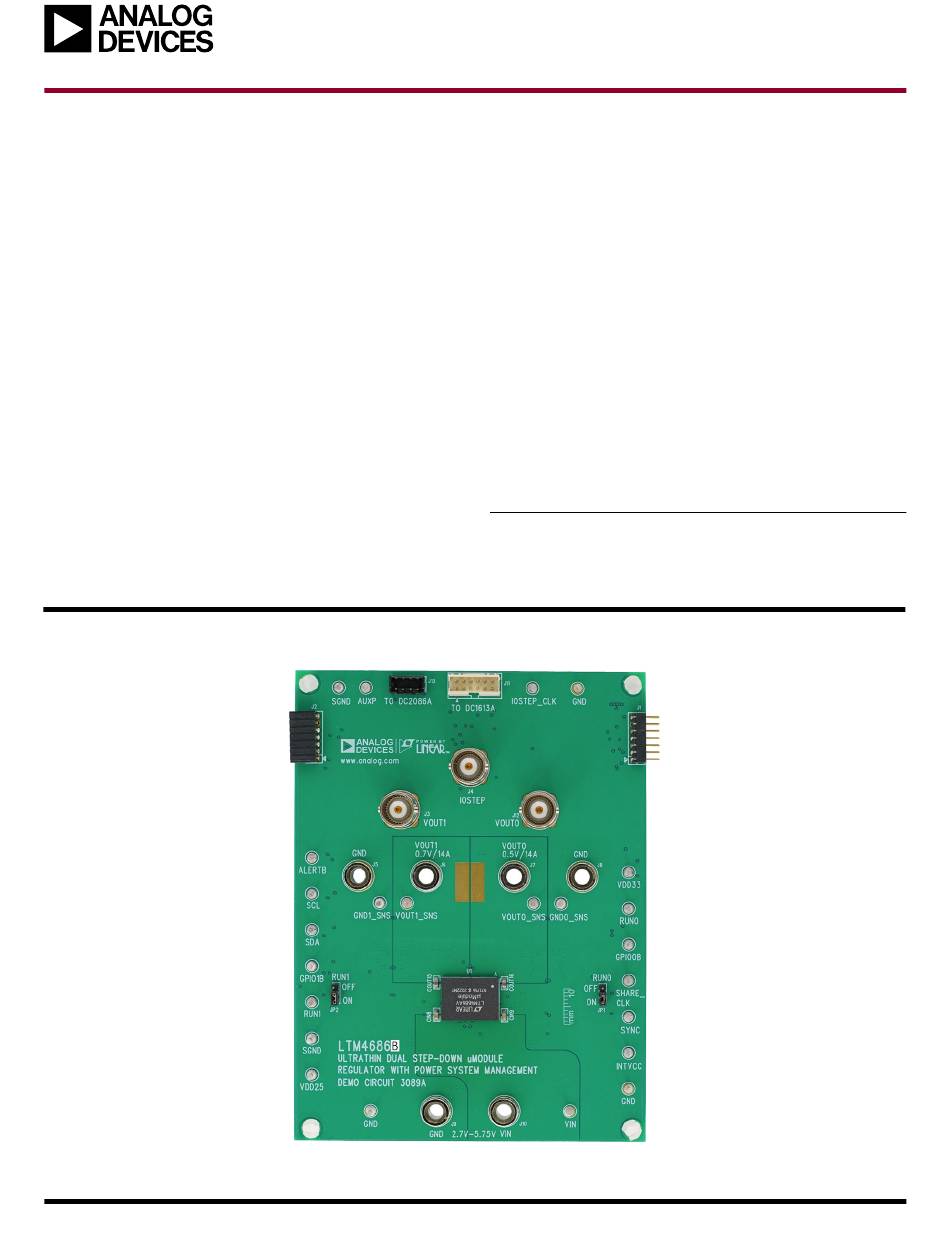

BOARD PHOTO
With Digital Power System Management
LTM4686B
µModule
Figure 1. Dual-Output LTM4686B/DC3089A Demo Circuit
DEMO MANUAL DC3089A
the board. LTpowerPlay allows the user to reconfigure the
part on the fly and store the configuration in EEPROM,
view telemetry of voltage, current, temperature and fault
status.
GUI Download
The software can be downloaded from:
For more details and instructions of LTpowerPlay, please
refer to LTpowerPlay GUI for LTM4686B Quick Start Guide.
Design files for this circuit board are available.
All registered trademarks and trademarks are the property of their respective owners.
LTM4686B
ltpowerplay
Rev 0
1
Advertisement
Table of Contents
Related Manuals for Analog Devices DC3089A
Summary of Contents for Analog Devices DC3089A
- Page 1 LTM4686B data sheet for more detailed information. The software can be downloaded from: ltpowerplay DC3089A powers up to default settings and produce For more details and instructions of LTpowerPlay, please power based on configuration resistors without the need refer to LTpowerPlay GUI for LTM4686B Quick Start Guide.
-
Page 2: Performance Summary
DEMO MANUAL DC3089A PERFORMANCE SUMMARY Specifications are at T = 25°C PARAMETER CONDITIONS VALUE Input Voltage Range 2.7V to 5.75V Output Voltage, V = 2.7-5.75V, I = 0A to 14A 0.5V to 3.6V, Default: 0.5V OUT0 OUT0 Maximum Output Current, I = 2.7-5.75V, V... -
Page 3: Quick Start Procedure
DEMO MANUAL DC3089A QUICK START PROCEDURE Demonstration circuit 3089A is easy to set up to evaluate 6. Once the proper output voltages are established, adjust the performance of the LTM4686B. Refer to Figure 2 for the loads within the operating range and observe the... - Page 4 DEMO MANUAL DC3089A QUICK START PROCEDURE Figure 2. Proper Measurement Equipment Setup – Figure 3. Measuring Output Voltage Ripple Rev 0...
-
Page 5: Usb Cable
DEMO MANUAL DC3089A QUICK START PROCEDURE Connecting a PC to DC3089A sequencing parameters, the fault log, fault responses, GPIOs and other functionalities. The DC1613A dongle You can use a PC to reconfigure the power management may be plugged when V is present. - Page 6 DEMO MANUAL DC3089A QUICK START PROCEDURE OUT0 OUT1 20mV/DIV 20mV/DIV 0A TO 7A 0A TO 7A LOAD STEP LOAD STEP 5A/DIV 5A/DIV dc3089a F07 dc3089a F08 ms/DIV ms/DIV Figure 7. Output Voltage V vs Load Current (V = 0.5V) Figure 8. Output Voltage V vs Load Current (V = 0.7V)
- Page 7 DEMO MANUAL DC3089A QUICK START PROCEDURE Figure 11. Thermal at V = 3.3V, V = 0.5V, I = 14A, V = 0.7V, I = 14A, T = 25°C, No Airflow OUT0 OUT0 OUT1 OUT1 Rev 0...
- Page 8 DEMO MANUAL DC3089A LTPOWERPLAY SOFTWARE GUI LTpowerPlay is a powerful Windows based development nose power issues when bringing up rails. LTpowerPlay environment that supports Linear Technology power utilizes the DC1613A USB-to-SMBus controller to com- system management ICs and μModules, including the...
- Page 9 1. Download and install the LTPowerPlay GUI: ltpowerplay 2. Launch the LTpowerPlay GUI. a. The GUI should automatically identify the DC3089A. The system tree on the left-hand side should look like this: Then, click the “W” (PC to RAM) icon to write these register values to the LTM4686B.
- Page 10 DEMO MANUAL DC3089A PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER, PART NUMBER Required Circuit Components CIN1 CAP ., 150µF, ALUM. ELECT., 35V, 20%, 8x10.2mm PANASONIC, EEHZA1V151P SMD, RADIAL, AEC-Q200 C16, C17 CAP ., OPTION, 0603 C2, C15 CAP ., 100pF, COG, 25V, 5%, 0603...
-
Page 11: Parts List
LABEL SPEC, DEMO BOARD SERIAL NUMBER BRADY, THT-96-717-10 MH1, MH2, MH3, MH4 STANDOFF , NYLON, SNAP-ON, 0.50 KEYSTONE, 8833 PCB, DC3089A ADI APPROVED SUPPLIER, 600-DC3089A XSTR., MOSFET, N-CH, 40V, 14A, DPAK (TO-252) VISHAY, SUD50N04-8M8P-4GE3 XSTR., MOSFET, P-CH, 30V, 3.5A, SOT23-3, DIODES INC., DMP3130LQ-7 AEC-Q101 R2, R22 RES., 7.5k, 1%, 1, 10W, 0603... - Page 12 RES., 10Ω, 1%, 1, 1/10W, 0603 NIC, NRC06F10R0TRF PANASONIC, ERJ3EKF10R0V VISHAY, CRCW060310R0FKEA RES., OPTION, 1206 STNCL1 TOOL, STENCIL, 700-DC3089A ADI APPROVED SUPPLIER, 830-DC3089A IC, DUAL 10A OUTPUTS STEP-DOWN, µModule ANALOG DEVICES, LTM4685EV#PBF REGULATOR, BGA IC, MEMORY, EEPROM, 2Kb (256x8), TSSOP-8, MICROCHIP , 24LC025-I, ST 400kHz...
-
Page 13: Schematic Diagram
DEMO MANUAL DC3089A SCHEMATIC DIAGRAM Rev 0... - Page 14 DEMO MANUAL DC3089A SCHEMATIC DIAGRAM Rev 0...
- Page 15 Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
- Page 16 Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
