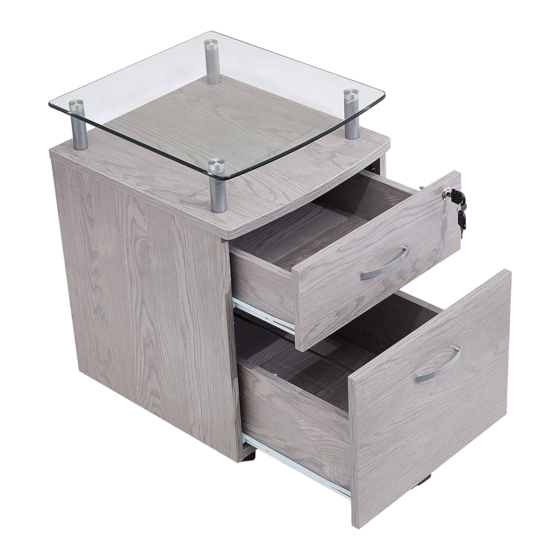

MODEL RTA-S06
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.LS-6541-0222-5

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-S06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-S06

Summary of Contents for Techni Mobili RTA-S06

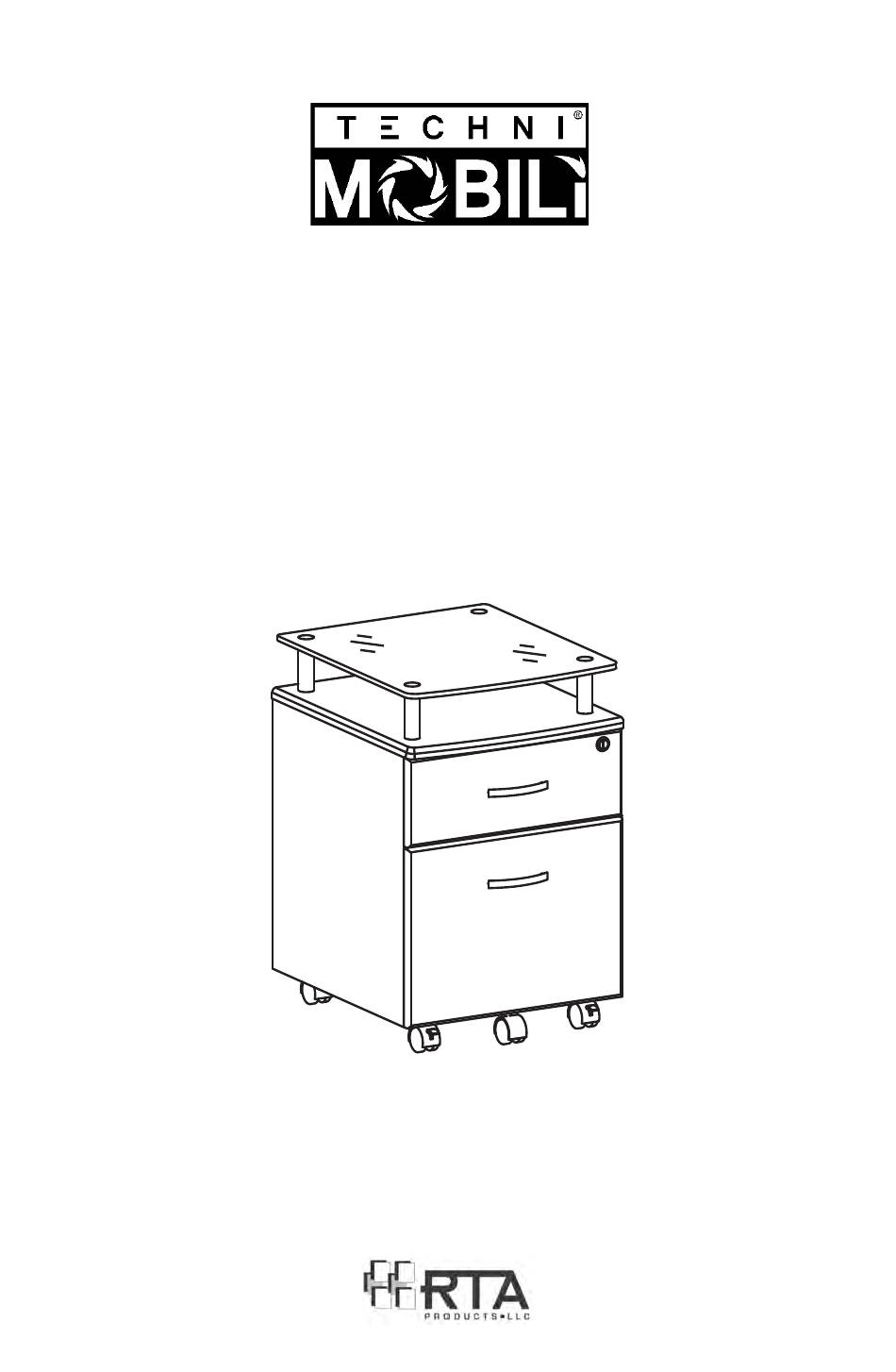

  • Page 1 MODEL RTA-S06 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.LS-6541-0222-5...
  • Page 2 RTA-S06 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-S06 MAIN PARTS LIST Top drawer left Top drawer right Locking caster Top drawer front panel panel panel Non-locking caster Drawer bottom panel Top drawer back Bottom drawer left Bottom drawer right panel panel panel File tubes, Set of 2 pcs...
  • Page 4 RTA-S06 MAIN PARTS LIST Top wood panel L bracket Bottom drawer Support tube and Nut front wheel Top glass panel Metal fitting A, Metal fitting B, Metal fitting C, x1 Set x1 Set x1 Set set of 2 pcs set of 2 pcs...
  • Page 5 RTA-S06 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
  • Page 6 RTA-S06 ❼ BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-S06 ASSEMBLY STEPS STEP 1 Attach the casters 3 to the bottom surface of panel 16 with screws E as Hardware: indicated: • The locking casters 3L go at the FRONT of the panel. • The non-locking casters 3N go at the BACK.
  • Page 8 RTA-S06 ASSEMBLY STEPS STEP 3 Assemble the locking system 23 to the right panel 15 by attaching the Hardware: fittings 23A with screws C as shown. M3x15 (23E goes with rods at top) STEP 4 Grab all the sets of sliders 12 (total 8 pcs) and separate them into 2 groups according to their shape: - The “Flat”...
  • Page 9 RTA-S06 STEP 5 Assemble the “Flat” sliders 12 to the side panels 14 and 15 with screws Hardware: C. Please note: • The wheel is at the front, and faces down with 2 holes above it. • The sliders attach at the front on the 2nd hole.
  • Page 10 RTA-S06 STEP 7 Slide in the back panel 17 through the grooves of panels 14 and 15 and into the groove of panel 16. STEP 8 • Attach bolts A to the bottom surface of the top wood panel 18.
  • Page 11 P.10 RTA-S06 P.10 STEP 10 Assemble the support tubes 21 to the top wood panel 18 with screws H Hardware: from underneath. M6x35 STEP 11 Attach the metal fitting 23B to the drawers right panels 2 and 8 Hardware: respectively with screws C.
  • Page 12 P.11 RTA-S06 P.11 STEP 13 STEP 12 For the top drawer, Hardware: assemble side panels 1 Slide one of the bottom panels 5 through and 2 to the front panel 4 the grooves of the side panels and into the with bolts A.
  • Page 13 P.12 RTA-S06 P.12 STEP 17 Flip the drawer upside-down and assemble the “L” sliders 12 with screws Hardware: C, making sure the wheel goes towards the back, and that they don’t protrude, otherwise, the drawer raises 1” and won’t fit in the cabinet.
  • Page 14 P.13 RTA-S06 P.13 STEP 20 STEP 21 Assemble the back panel Slide the bottom panel 5 Hardware: 10 to the side panels 7 through the grooves of the side panels and and 8 with screws B. into the front panel as shown.
  • Page 15 P.14 RTA-S06 P.14 STEP 25 • Insert the drawers into the cabinet, starting with the bottom then the top. Insert at an angle with their fronts facing down, making sure the wheels from the drawer slide in the middle of the sliders inside the cabinet. If the top drawer does not enter, review the assembly done in steps 5, 17 and 24.
  • Page 16 P.15 RTA-S06 P.15 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 30 Lbs. (13.6 Kg) 22 Lbs. (10 Kg) 22 Lbs. (10 Kg) 22 Lbs. (10 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 17 RTA-S06 P.16 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 18 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
