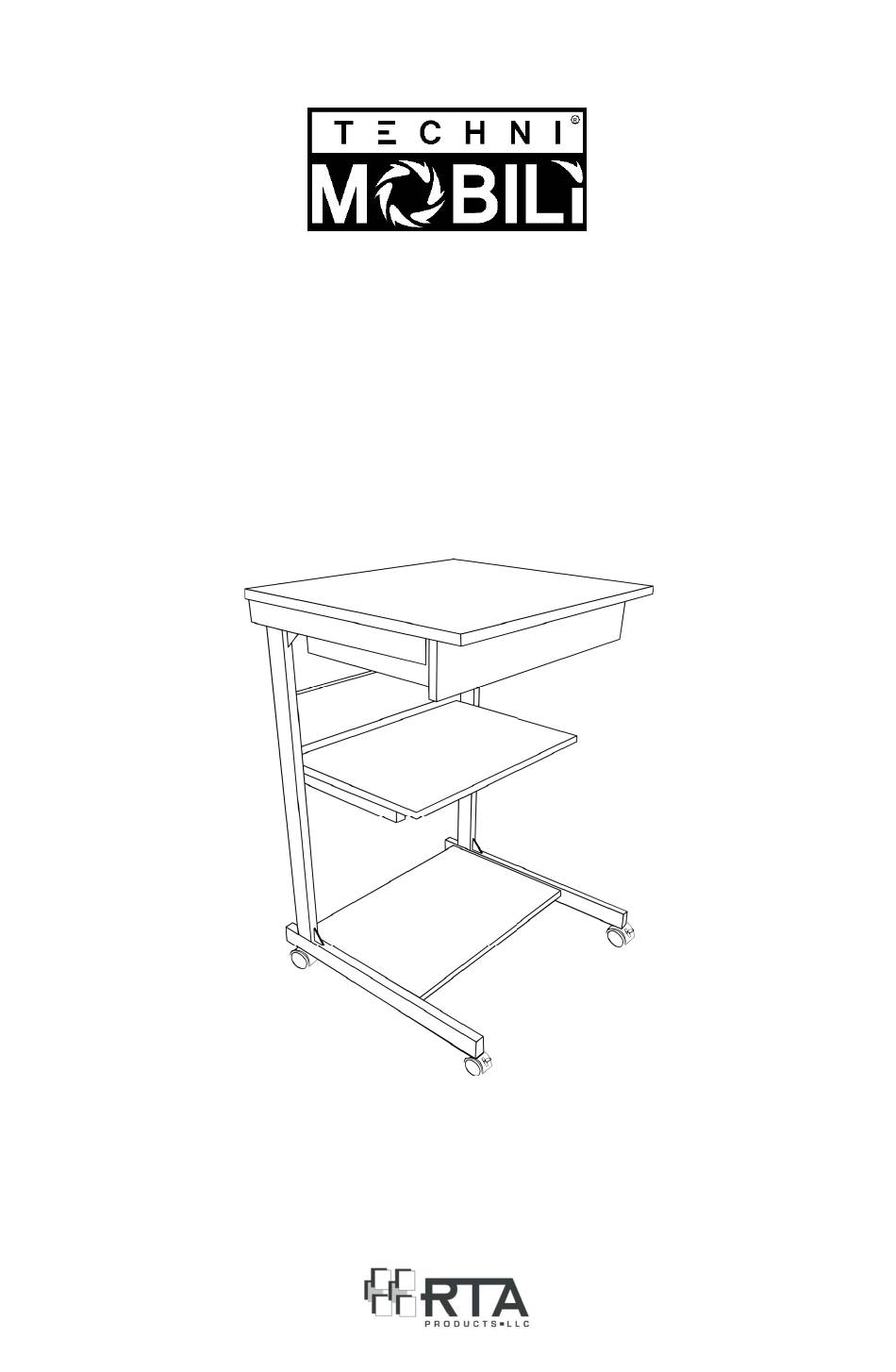

MODEL RTA-B018
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.CS-092021-3

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-B018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-B018

Summary of Contents for Techni Mobili RTA-B018

  • Page 1 MODEL RTA-B018 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.CS-092021-3...
  • Page 2 RTA-B018 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-B018 MAIN PARTS LIST Top panel Left frame Back panel Right frame Shelf Drawer left panel Drawer right panel Drawer front panel Drawer back panel Drawer bottom panel MAIN PARTS LAYOUT (FOR REFERENCE):...

  • Page 4: List Of Hardware

    RTA-B018 LIST OF HARDWARE PART QTY ITEM M6x50 M6x30 Cam Bolt ST4x12 ST4x35 M6x12 Cam Lock Non- Locking caster Locking caster Sliders Allen key Wrench (Spanner) You will also need a Phillips screwdriver (not included)
  • Page 5 RTA-B018 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
  • Page 6 RTA-B018 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-B018 ASSEMBLY STEPS STEP 1 Grab and extend each of the sliders J towards your RIGHT and separate the small track from the rest by pressing UP firmly the locking lever, at Hardware: the same time that you pull the small track out. The big pieces J-1 will be...
  • Page 8 RTA-B018 STEP 3 Attach the casters H and I to the bottom of the frames 2 and 3 using the wrench, and following this order: Hardware: • The Non-Locking casters H go at the back of the frame. • The Locking casters I go at the front of the frame.
  • Page 9 RTA-B018 STEP 5 • Place the tabletop 1 upside-down on the floor over a towel or rug to protect its surface, and place the frames 2 and 3 over it making the Hardware: holes coincide, then insert the screws A but do not tighten yet.
  • Page 10 RTA-B018 STEP 7 Assemble the drawer side panels 7 and 8 to the drawer back panel 9 with screws E from the side. Hardware: ST4x35 Make sure all the grooves match at the bottom of the panels STEP 8 Slide the drawer bottom panel 10 through the grooves of the side panels 7 and 8, and into the groove of panel 9.
  • Page 11 P.10 RTA-B018 P.10 STEP 10 Use a screwdriver (not included) to assemble the drawer front panel 6 to the side panels 7 and 8 with cam locks G as shown and as explained in Hardware: page 4. Cam lock (NOT INCLUDED)
  • Page 12 P.11 RTA-B018 P.11 STEP 12 • On the frame first make sure that the piece with the ball bearing is all the way to the front. • Insert the drawer making sure that simultaneously on both sides, the tracks J-2 on the drawer go through the black plastic guides and the ball bearing pieces on the sliders J-1.
  • Page 13 P.12 RTA-B018 P.12 ALL DONE! Give yourself a nice pat on the back. You did a great job!
  • Page 14 P.13 RTA-B018 P.13 CARE, MAINTENANCE AND SAFETY WARNINGS: 90 Lbs. WEIGHT LIMITS (40.82 Kg) 10 Lbs. (4.53 Kg) 50 Lbs. (22.68 Kg) 70 Lbs. (31.75 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 15 P.14 RTA-B018 P.14 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 16 P.15 RTA-B018 P.15 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
