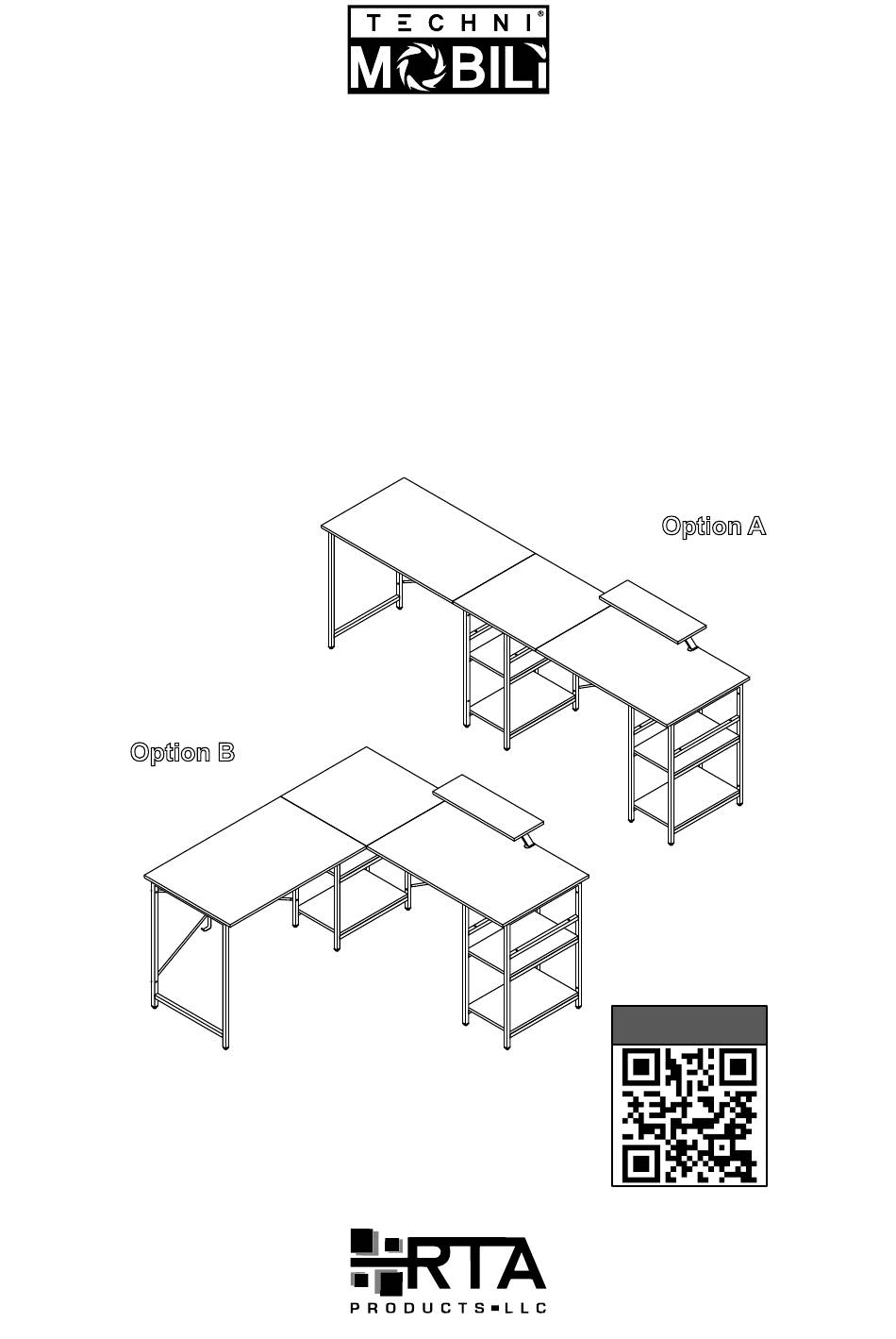

- Page 1 L-SHAPE INDUSTRIAL DESK WITH STORAGE SHELVES MODEL RTA-733DL ASSEMBLY INSTRUCTIONS Thank you for purchasing our product Option A Option B Scan QR to view full assembly video REV.PFT-7059-1222...
- Page 2 RTA-733DL • You can assemble the item as a long worksation for 2 people, or as an L-Shape personal desk, however, the shelves can only assemble on the right side and the center; placing shelves on the right is not possible.
-
Page 3: Main Parts List
RTA-733DL The replacement parts service is limited to Do a quick inventory Missing, damaged and defective the 48 contiguous United States. parts can be replaced at no cost of all the parts and If you reside in AK, HI, PR, U.S. territories to you. -
Page 4: Hardware List
RTA-733DL MAIN PARTS LAYOUT (For reference) HARDWARE LIST INCLUDED TOOLS M4 Allen Wrench SIZE ITEM PART M10 Spanner M6x12 M6x30 M6x40 M6/M10 Nut cap M6, Ø 28x21 Screw knob 30x25mm Protector 25x25mm Metal bracket... - Page 5 RTA-733DL BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance.
-
Page 6: Assembly Steps
RTA-733DL ASSEMBLY STEPS STEP 1 • Assemble one of the shelves 4 to the bottom bars on the right frames Hardware 7 with screws B from underneath. • Assemble another shelf 4 to either set of middle bars on the frames 7... - Page 7 RTA-733DL STEP 3 • Assemble the right-top-back tube 11 and the right-top-front tube 12 in Hardware between the frames 7 in their corresponding positions with screws C. • Pay attention to the orientation of the holes on the frames and tubes.
- Page 8 RTA-733DL STEP 5 • With the help of another person, place the corner top 2 and the right This step tabletop 3 over the frame, making sure the holes align. requires of • Secure the tabletops to the frames 7, 8 and the tubes 11 and 12 with...
- Page 9 RTA-733DL STEP 7 • With the left tabletop 1 flipped upside-down, assemble to it the tubes Hardware 6, 9 and 10 with screws B, but leave the screws loose to allow flexibility to fix any misalignments. M6x12 • Attach the bracket G to the tube 9 with screw A. Make sure to leave the bracket facing towards the outside.
- Page 10 RTA-733DL IF YOU ARE ASSEMBLING IN L SHAPE, SKIP PAGES 9 AND 10 AND CONTINUE READING FROM PAGE 11. STEP 9A With the help of another person, assemble the left tabletop 1 to the rest This step of the unit using: requires of •...
- Page 11 RTA-733DL P.10 P.10 STEP 11A • Mount the supports 15 to either tabletop 1 or 3 with the screw knobs Hardware E and the protector F. Screw knob 30x25mm Protector ON RIGHT SIDE Scan QR to view step OR ON LEFT SIDE...
- Page 12 RTA-733DL P.11 P.11 STEP 9B With the help of another person, assemble the left tabletop 1 to the rest This step of the unit using: requires of • Screw B going through the frame 8 and the bracket G on the tube 9 at 2 persons the back of the unit, and secure with nut cap D.
- Page 13 RTA-733DL P.12 P.12 STEP 11B • Mount the supports 15 to either tabletop 1 or 3 with the screw knobs Hardware E and the protector F. Screw knob 30x25mm (Front) ON RIGHT SIDE Protector Scan QR to view step OR ON...
-
Page 14: Weight Limits
RTA-733DL P.13 P.13 WEIGHT LIMITS 88 Lbs 88 Lbs (40 Kg) (40 Kg) 22 Lbs (10 Kg) 88 Lbs 66 Lbs (40 Kg) (30 Kg) 66 Lbs (30 Kg) WARNINGS Do not exceed the indicated weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. - Page 15 RTA-733DL P.14 P.14 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 16 Your satisfaction is very important to us. Our Support agents can help you with any issues you may have, please feel free to contact us with any questions you have about our products, or to request replacement parts. FOR ADDITIONAL INFORMATION PLUS HELP OPTIONS VISIT: WWW.TECHNIMOBILI.COM CLICK ON SUPPORT TAB...
