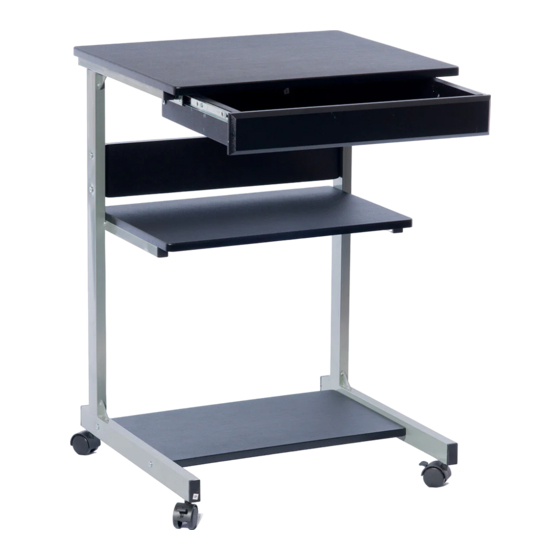

ROLLING LAPTOP CART WITH STORAGE
MODEL RTA-B018
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
Scan QR code to
view assembly video
REV.CS-6886-0822

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-B018 and is the answer not in the manual?

Questions and answers

Related Manuals for Techni Mobili RTA-B018

Summary of Contents for Techni Mobili RTA-B018

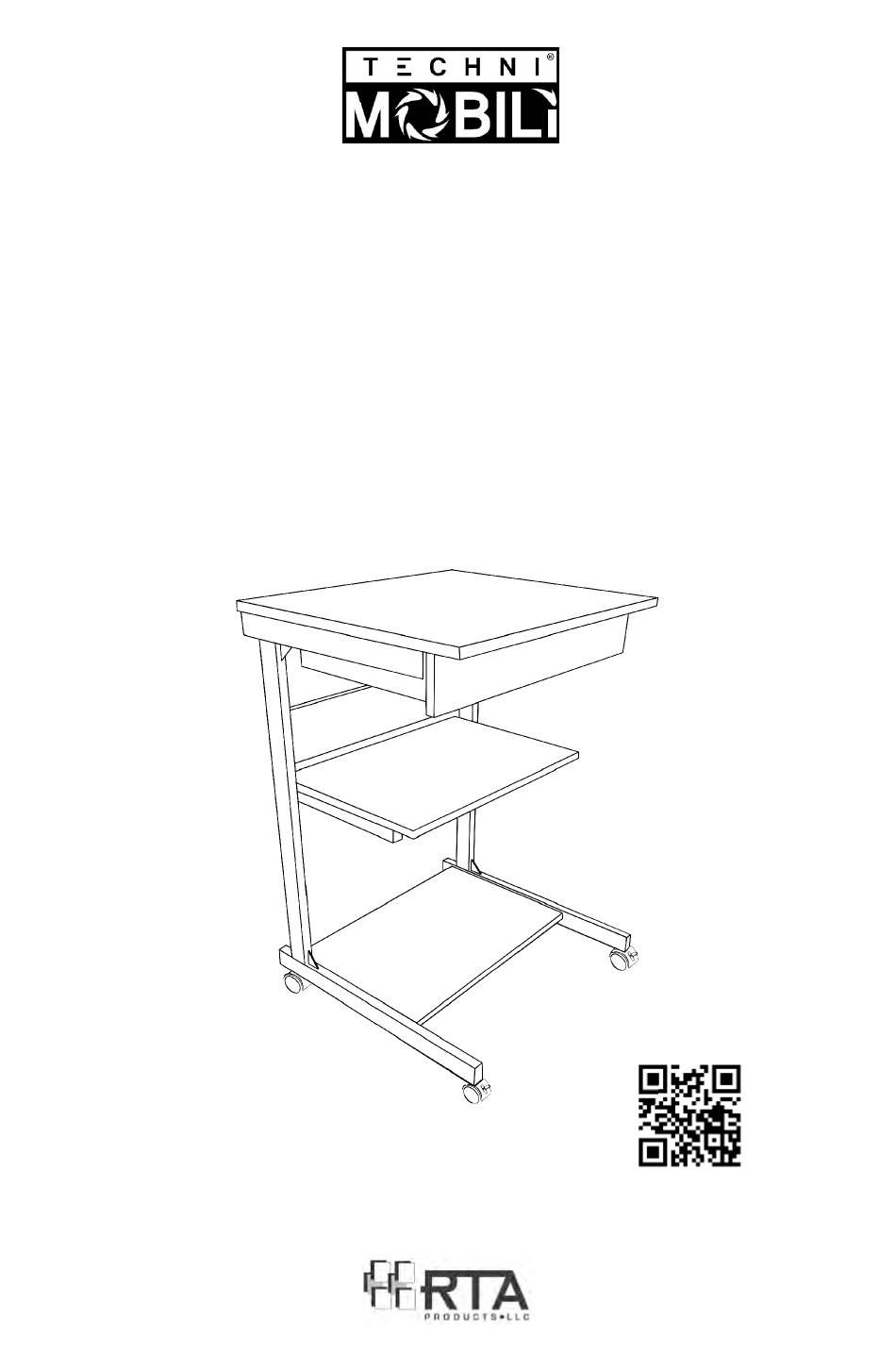

  • Page 1 ROLLING LAPTOP CART WITH STORAGE MODEL RTA-B018 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. Scan QR code to view assembly video REV.CS-6886-0822...
  • Page 2 RTA-B018 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Scan the above QR code to view the complete assembly video online.
  • Page 3 RTA-B018 The replacement parts service is limited to the Do a quick inventory Missing, damaged and defective 48 contiguous United States. If you reside in of all the parts and parts can be replaced at no cost AK, HI, PR, U.S. territories or other countries, hardware listed in the to you.
  • Page 4 RTA-B018 MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF INCLUDED HARDWARE AND TOOLS PART ITEM PART ITEM M6x50 Non-locking caster (back) M6x30 M6x30 Locking Cam bolt caster (front) M4x12 Sliders M4x35 Allen Wrench M6x12 Wrench Cam lock (Spanner) OTHER TOOLS THAT ARE REQUIRED (But not included with the product)
  • Page 5 RTA-B018 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance. Please refer to the last pages on this manual.

  • Page 6: Assembly Steps

    RTA-B018 ASSEMBLY STEPS STEP 1 Grab and extend each of the sliders J towards your RIGHT and separate the small track from the rest by pressing UP firmly the locking lever, at Hardware: the same time that you pull the small track out. The big pieces J-1 will be...
  • Page 7 RTA-B018 STEP 3 Attach the casters H and I to the bottom of the frames 2 and 3 using the Hardware: wrench, and following this order: • The Non-Locking casters H go at the back of the frame. • The Locking casters I go at the front of the frame.
  • Page 8 RTA-B018 STEP 5 • Place the tabletop 1 upside-down on the floor over a blanket to Hardware: protect its surface, and place the frames 2 and 3 over it making the holes coincide, and secure with screws A but do not tighten yet.
  • Page 9 RTA-B018 STEP 7 • Assemble the drawer side panels 7 and 8 to the drawer back panel 9 Hardware: with screws E from the side. • Slide the drawer bottom panel 10 through the grooves of the side panels 7 and 8, and into the groove of panel 9.
  • Page 10 RTA-B018 STEP 9 Attach the small sliders J-2 to the side panels 7 and 8 with screws D. Hardware: M4x12 (Front) Small (Right) Tools required (But not included) Scan QR Code to view this step (Left) STEP 10 • On the frame first make sure that the piece with the ball bearing is all the way to the front.
  • Page 11 P.10 RTA-B018 P.10 ALL DONE! Give yourself a nice pat on the back, you did a great job! Enjoy your new unit.

  • Page 12: Weight Limits

    P.11 RTA-B018 P.11 WEIGHT LIMITS 90 Lbs. WEIGHT LIMITS (40.82 Kg) 10 Lbs. (4.53 Kg) 50 Lbs. (22.68 Kg) 70 Lbs. (31.75 Kg) CARE, MAINTENANCE AND SAFETY WARNINGS: • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 13 P.12 RTA-B018 P.12 TECHNI MOBILI DESK WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 14 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: AND CLICK ON SUPPORT TAB Or scan the following QR Code: Scan the following QR Code to order replacement parts: EMAIL US: SUPPORT@RTAPRODUCTS.COM...
