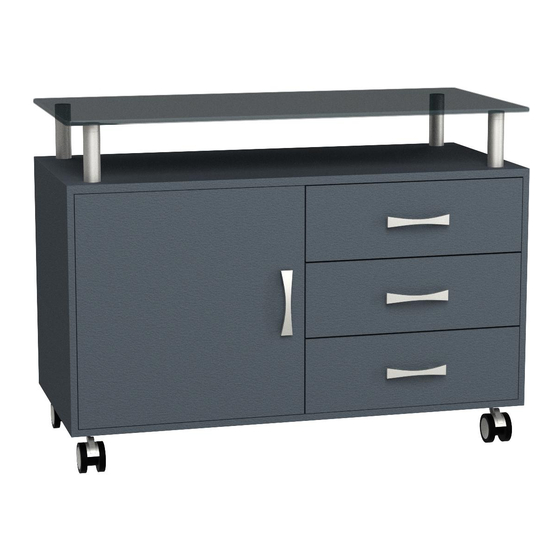

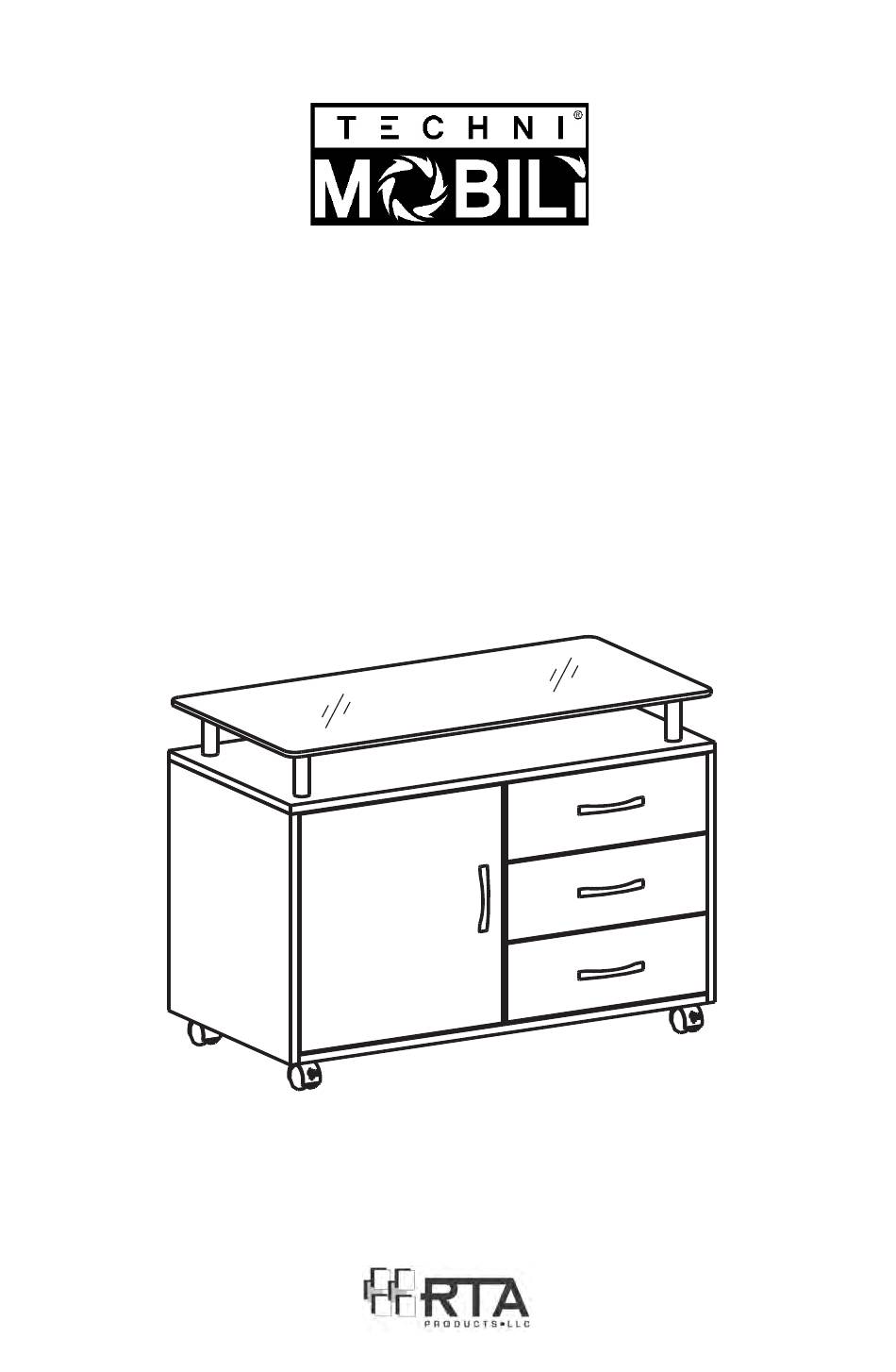

MODEL RTA-S10
(This product comes in 2 boxes)
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.LS-6541-0122-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-S10 and is the answer not in the manual?

Questions and answers

Related Manuals for Techni Mobili RTA-S10

Summary of Contents for Techni Mobili RTA-S10

  • Page 1 MODEL RTA-S10 (This product comes in 2 boxes) ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.LS-6541-0122-2...
  • Page 2 RTA-S10 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-S10 MAIN PARTS LIST Left panel Center panel Locking casters Right panel Non-locking casters Left shelf Back panel Bottom panel Top wood panel Support Top glass panel tube Drawer left Drawer right Drawer front Drawer Drawer back panel panel panel...
  • Page 4 RTA-S10 MAIN PARTS LAYOUT (FOR REFERENCE): “Flat” Non-locking “L shaped” Locking LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M4x14 M6x25 Bolt M6x40 Bolt M4x35 M6x20 M3x15 (Headless) M4x20 M6x25 Screwdriver M4x16...
  • Page 5 RTA-S10 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
  • Page 6 RTA-S10 ❼ BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-S10 ASSEMBLY STEPS Grab all the sets of sliders 16 (total 12 pcs) and separate them into 2 STEP 1 groups according to their shape: - The “Flat” ones will be used on the next step. The “L Shaped” will be used until step 19, set them aside.
  • Page 8 RTA-S10 • Attach bolts B on the other side of panel 2. STEP 3 • Make sure the cam locks on panel 5 are aligned and ready to receive Hardware: the bolts, just as as explained in page 4. • Join panel 5 to panel 2 and turn the cam locks.
  • Page 9 RTA-S10 Using bolts B, and following the procedures explained in page 4: STEP 6 • Assemble the left panel 1 to panels 5 and 6. Hardware: • Assemble the right panel 4 to panel 6. M6x40 The groove on 1 and 4 face towards the back...
  • Page 10 RTA-S10 Assemble the tubes 9 to the metal discs of the top glass panel 10 with STEP 10 screws C (headless). Hardware: M6x20 Headless Assemble the tubes 9 from the glass panel 10 to the top wood panel STEP 11 8 with screws D from underneath.
  • Page 11 P.10 RTA-S10 P.10 Assemble the hinges 19 on the door 18 to panel 1 with screws E. STEP 14A If the door does not close smoothly or requires alignment, follow the Hardware: instructions 14B, otherwise, continue to step 15. M4x16...
  • Page 12 P.11 RTA-S10 P.11 For each of the 3 drawers, STEP 16 STEP 15 assemble the side panels For each of the 3 drawers, slide the bottom Hardware: 11 and 12 to the front panel 14 through the grooves of the side panel 13 with bolts F as panels and into the front panel as shown.
  • Page 13 P.12 RTA-S10 P.12 STEP 20 • Insert the drawers into the cabinet, starting with the bottom one, then middle, then top. Insert at an angle with their fronts facing down, making sure the wheels from the drawer slide in the middle of the sliders inside the cabinet.
  • Page 14 P.13 RTA-S10 P.13 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS 60 Lbs. 60 Lbs. (27.2 Kg) (27.2 Kg) 15 Lbs. (6.8 Kg) 15 Lbs. 30 Lbs. (6.8 Kg) (13.6 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 15 P.14 RTA-S10 P.14 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 16 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
