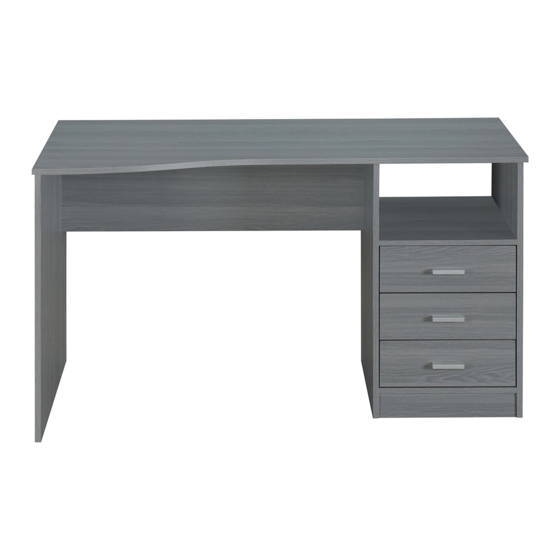

Techni Mobili RTA-8404 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Techni Mobili Manuals
  4. Indoor Furnishing
  5. RTA-8404
  6. Assembly instructions manual

Techni Mobili RTA-8404 Assembly Instructions Manual

Hide thumbs Also See for RTA-8404:

Advertisement

Quick Links

Download this manual

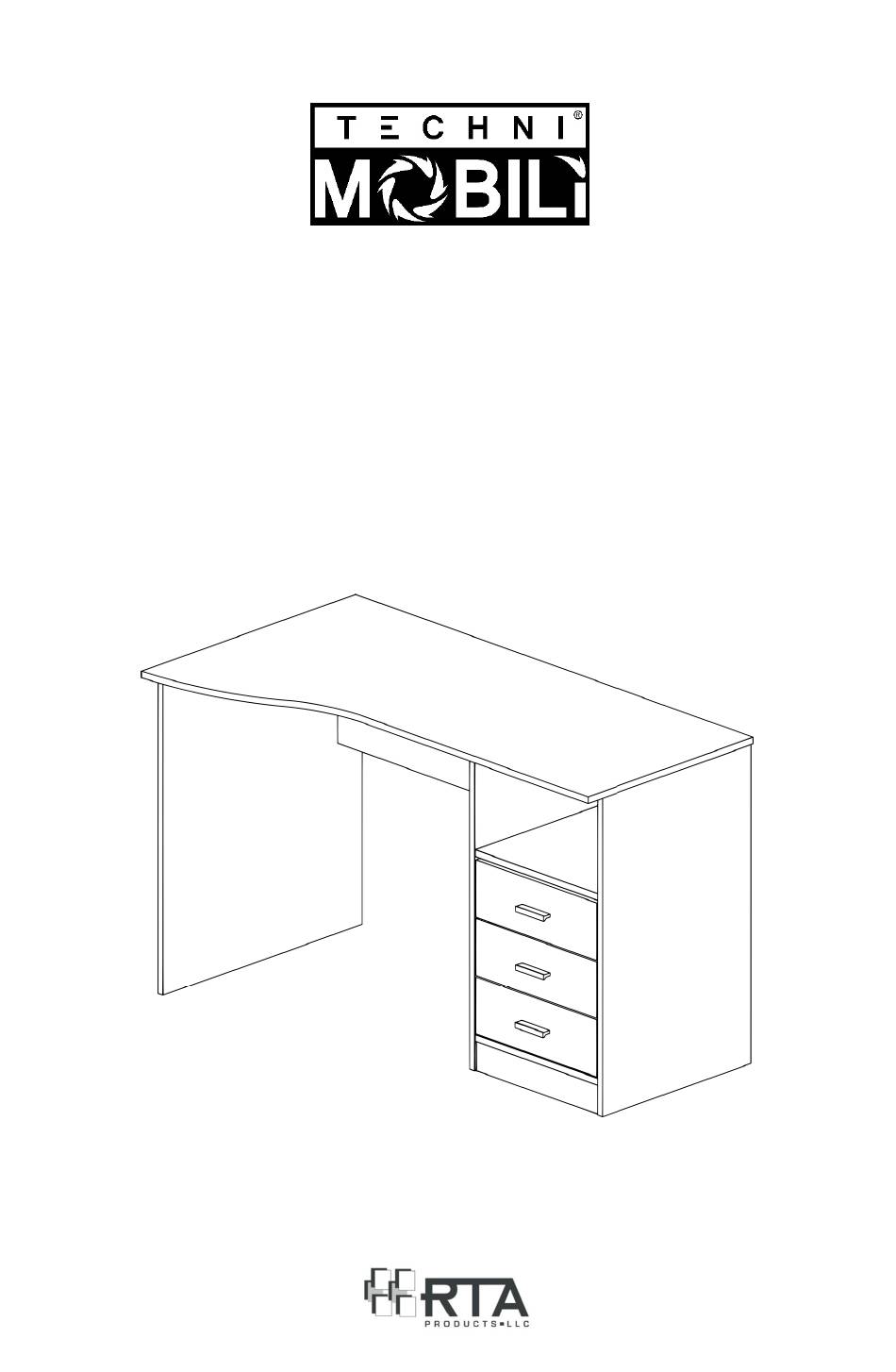

MODEL RTA-8404
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product.
REV.FP-1121-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-8404 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-8404

Summary of Contents for Techni Mobili RTA-8404

  • Page 1 MODEL RTA-8404 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.FP-1121-2...
  • Page 2 RTA-8404 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.

  • Page 3: Main Parts List

    RTA-8404 MAIN PARTS LIST Tabletop Left back panel Left panel Middle panel Right panel Right shelf panel Drawer left panel Bottom panel Drawer front panel Bottom skirt panel Right back panel Drawer right panel Drawer back panel Drawer bottom panel...
  • Page 4 RTA-8404 MAIN PARTS LAYOUT (FOR REFERENCE): LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM Wooden 2 “flat” per set: ” per set: dowel Sliders, set ST5x8 of 4 pcs 2 “L” per set: Euro screw sets ST3x16 Plastic glide...
  • Page 5 RTA-8404 ☛ This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1.
  • Page 6 RTA-8404 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...

  • Page 7: Assembly Steps

    RTA-8404 ASSEMBLY STEPS STEP 1 ATTENTION: DO NOT JOIN ANY PANELS IN THIS STEP! Insert the wooden pins 1 into the indicated holes of panels B, C, D, E, F, Hardware: G, I, J and K as shown. Make sure to insert in the correct holes as others are intended for other hardware in other steps.
  • Page 8 RTA-8404 STEP 3 Grab the “flat” metal sliders 7 (the “L” shaped will be used until step 12, please set them aside). With the panels D and E positioned as shown, Hardware: assemble the flat sliders using screws 2 as shown.
  • Page 9 RTA-8404 STEP 5 With the help of another person, flip over the pieces assembled in step 4, and assemble the panels F and G to panel E with cam locks 5 as Hardware: shown and as explained in page 4.
  • Page 10 RTA-8404 STEP 7 • Assemble the panel D to panels F and G with cam locks 5 as shown and as explained in page 4. Hardware: • Attach the plastic glides 8 to the bottom of panels C, D and E.
  • Page 11 P.10 RTA-8404 P.10 STEP 9 • Attach the Z brackets 9 to the upper corners of the back panel N with screws 3. Hardware: • Install the hole covers 6 over the cam locks on the indicated places. ST3x16 Covers...
  • Page 12 P.11 RTA-8404 P.11 STEP 11 For each of the 3 drawers, assemble the back panel L to the side panels J and K with screws 4 as shown. Hardware: ST4x38 (NOT INCLUDED) STEP 12 For each of the drawers, assemble the L shaped sliders 7 to the bottom of the drawer with screws 11 as shown.
  • Page 13 P.12 RTA-8404 P.12 STEP 13 For each of the 3 drawers, install the handle 10 to the front panel H using its own screws, then cover the cam lock holes on panels J and K Hardware: with 6 as shown.
  • Page 14 P.13 RTA-8404 P.13 CARE, MAINTENANCE AND SAFETY WARNINGS: WEIGHT LIMITS WEIGHT LIMITS 90 Lbs. (40.5 Kg) 19 Lbs. (8.55 Kg) 10 Lbs. (4.5 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 15 P.14 RTA-8404 P.14 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 16 P.15 RTA-8404 P.15 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
