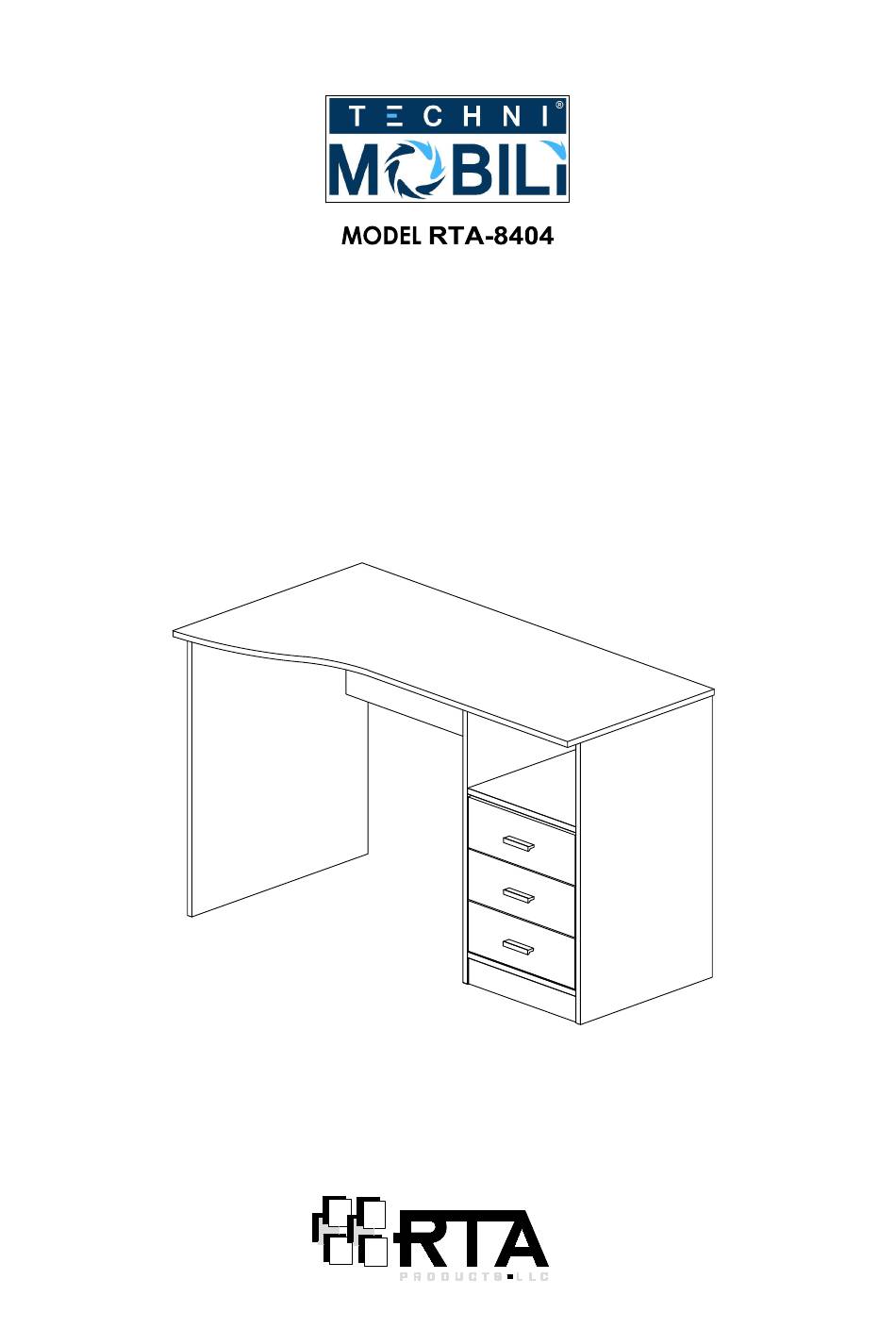

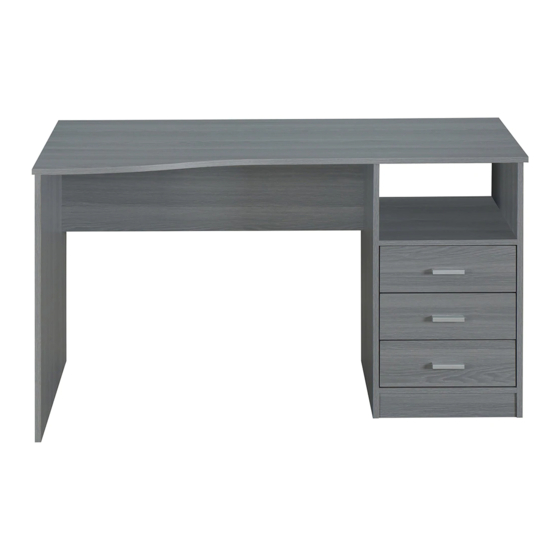

- Page 1 ASSEMBLY INSTRUCTIONS Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference.
- Page 3 - Tabletop Left Panel Right Panel -Drawer Front Partition Panel Bottom Panel Leg Panel Middle Panel Panel x 3 Drawer Back -Drawer Bottom -Drawer Right -Drawer Left -Back Panel Panel x 3 Panel x 3 Panel x 3 Panel x 3 PART QTY.
- Page 4 RTA-8404 HOW TO ASSEMBLE PARTS USING CAM BOLTS AND CAM LOCKS. ☛ This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware. Cam Lock Cam Bolt 1. Screw the bolt into the corresponding panel.
- Page 6 ATTENTION: IN THIS STEP YOU WON'T BE JOINING ANY OF THE PANELS. Insert the wooden pins (1) into the corresponding holes of panels (B), (C), (D), (E), (F), (G), (J) and (K) as shown. Make sure to insert in the correct holes as some are intended for other purposes in other steps.
- Page 7 Grab the Metal Sliders (7) and group them by their shape (Flat or L shaped). All the L shaped sliders will be used until step 11, so please set them aside. With the panels (D) and (E) positioned as shown, assemble the flat Sliders using screws (2) as shown.
- Page 8 Insert and align the cam locks (5) into the corresponding holes on panels (F) and (G), and assemble them to (E) as shown and as explained in page 4. Insert...
- Page 9 - Insert and align the cam locks (5) into the corresponding holes on panels (G) and (F), and assemble to them the panel (D) as shown and as explained in page 4. - Attach the Plastic Feet (8) to the bottom of panels (C), (D) and (E) as shown. - Insert and align the cam locks (5) into the corresponding holes on panels (B), (C), (D) and (E), and assemble the Tabletop (A) as shown and as explained in page 4.
- Page 10 - Attach the Z bracket (9) to the upper corners of the back panel (N) using screws (3). Then Install the Hole Covers (6) over the cam locks on the places indicated. First insert and align the cam locks (5) in the drawer side panels (K) and (J), and assemble the panels to the front panel (H) as shown and as - Assemble the drawer back panel (L) to the side...
- Page 11 - Install the Handle (10) to the drawer front - Assemble the L shaped Sliders (7) to the panel using its own screws, then cover the bottom of the drawer using screws (11) as cam lock holes on panel (J) and (K) with (6) as shown.
