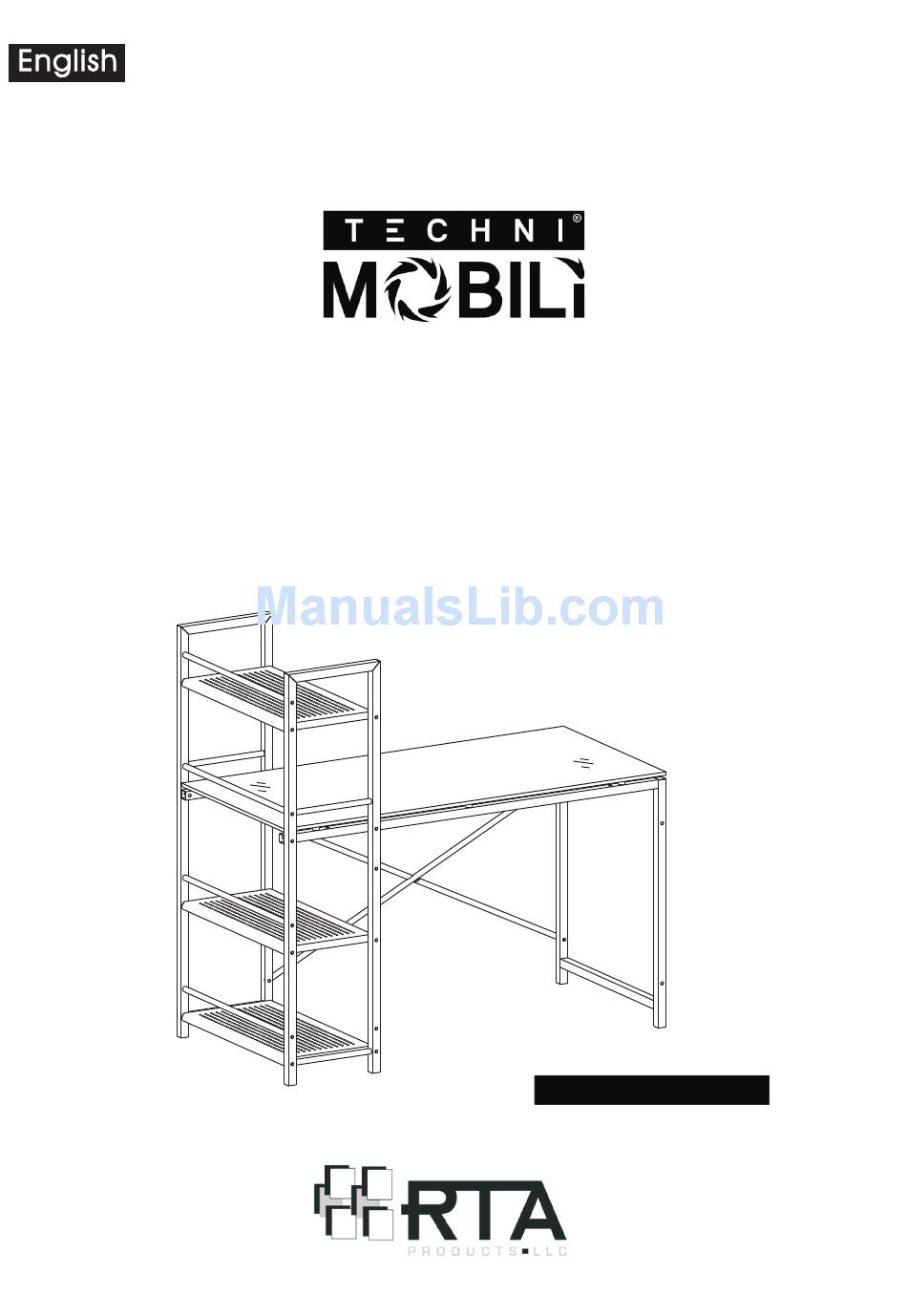

- Page 1 ASSEMBLY INSTRUCTIONS MODEL RTA - 7337 This product comes in 2 boxes. Thanks for purchasing one of our products. Please read carefully the assembly instructions before the installation. Please save this manual for future reference. MODEL RTA-7337...
- Page 2 RTA-7337 DIMENSIONS Product Size: 49"W x 25"D x 47 1/2"H MAXIMUM WEIGHT CAPACITIES DO NOT exceed this limit Please use care and good judgement Product Net Weight:61.73 lbs when placing objects on wood surface...
- Page 3 RTA-7337...
- Page 4 RTA-7337 Support Tube Long Tube Long Structure Back Support Tube Metal Panel Short Structure Glass Table Top Connect Tube...
- Page 5 RTA-7337 PART QTY. ITEM PART QTY. ITEM 6X40MM 6X12MM 6X55 MM 6X30MM 6X35MM TO ALLOW FLEXIBILITY AND ENSURE PROPER ALIGNMENT OF ALL PARTS, SCREW LOOSELY AND DO NOT TIGHTEN ANY OF THE SCREWS UNTIL THE END OF STEP No.7! 6X40MM...
- Page 6 RTA-7337 Use screws A to assemble the Long Tubes (3) to the Short Structure (5). 6X40MM There are two assemble options while you assemble the Back Support Tubes (6) in step 6.
- Page 7 RTA-7337 Use screws C to assemble the Back Support Tubes (6) to the Long Structure (1) and Short Structure (5). Use screw D to fix the Back Support Tubes (6). 6X12MM 6X35MM 6X30MM Use screws E to assemble the Glass Table Top (7) to the Long Tubes (3).
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE English - DO NOT EXPOSE THE SURFACES TO DIRECT SUNLIGHT OR EXTREME ENVIRONMENTAL CONDITIONS. ANY DAMAGE RESULTING FROM SUCH EXPOSURE IS NOT COVERED BY THE PRODUCT’S WARRANTY. - THE PREFERABLE METHOD TO CLEAN THE SURFACES IS TO WIPE THEM USING A SOFT CLOTH DAMPENED WITH A SOLUTION SOAP AND WATER, THEN DRY WITH A CLEAN TOWEL.
