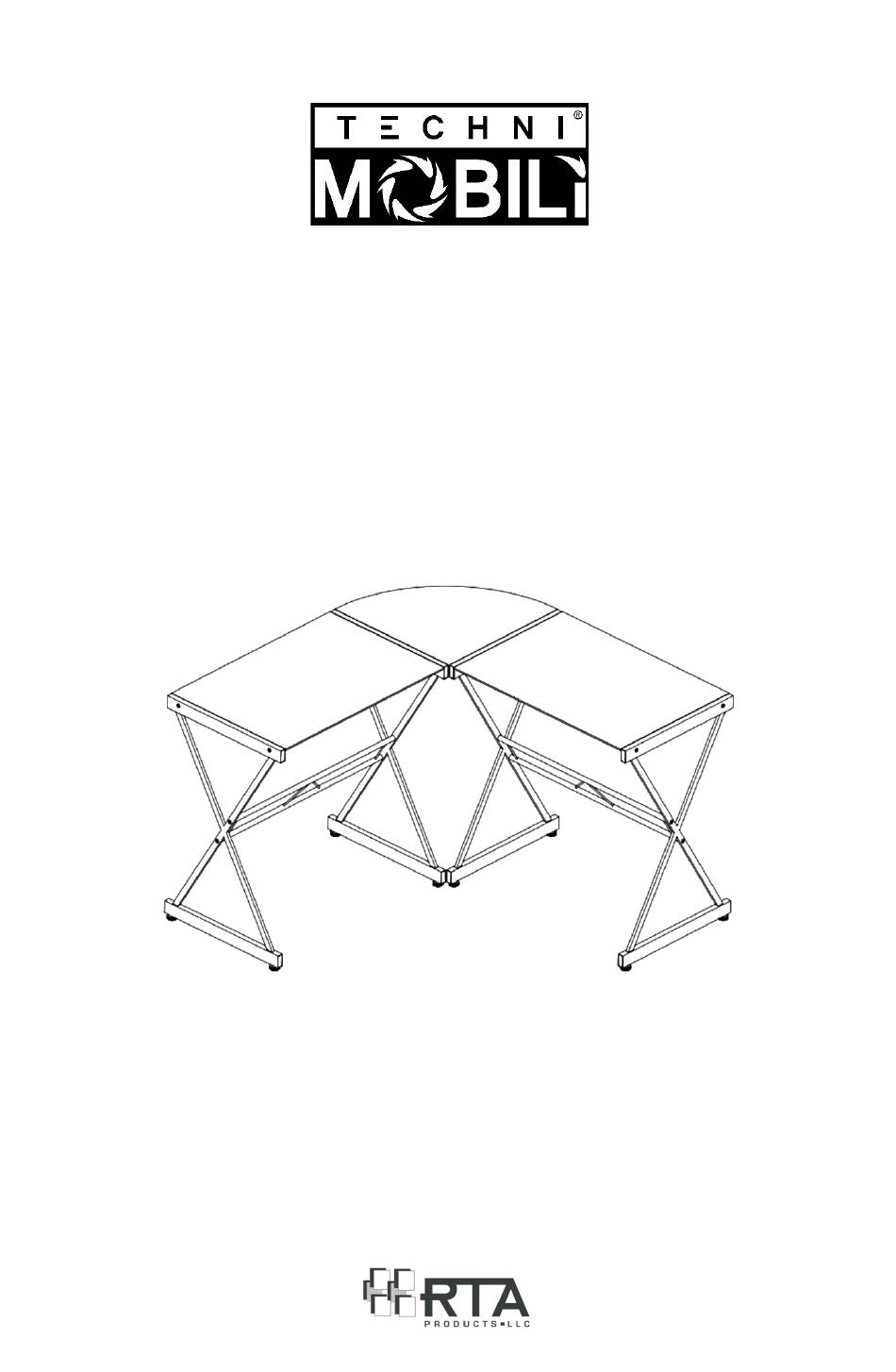

- Page 1 MODEL RTA-3805L ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.122020-1...
- Page 2 RTA-3805L • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-3805L MAIN PARTS LIST Main structure Support structure Horizontal tube Corner structure Corner glass Glide studs Main glass LIST OF SCREWS PART ITEM PART ITEM M6x20mm M6x23mm M6x40mm M6x8mm M6x60mm MAIN PARTS LAYOUT (FOR REFERENCE):... - Page 4 RTA-3805L BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 5: Assembly Steps
RTA-3805L ASSEMBLY STEPS STEP 1 Insert the glide studs G into the bottom of all the structures A. Hardware: (Top) STEP 2 Do not tighten any screws in this step, leave them all loose. Hardware: Assemble the support structure B in between the main structures A with screws H but leave them loose. - Page 6 RTA-3805L STEP 3 Do not tighten any screws in this step, leave them all loose. Hardware: With the help of another person, assemble the horizontal tubes C to: - The structure A with screws I on the left, - The structure A and the corner structure D with screws J on the right.
- Page 7 RTA-3805L STEP 5 Do not tighten any screws in this step, leave them all loose. Hardware: With the help of another person, carefully place the glass tops over the frame, and assemble: - The corner glass E to the corner structure D with screws L from M6x23 underneath, through the frame and into the round metal discs.
- Page 8 RTA-3805L ALL DONE! Give yourself a nice pat on the back. You did a great job!
- Page 9 RTA-3805L AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS = 110 Lbs. (50 Kg) = 66 Lbs. (30 Kg) • Do not exceed the indicated weight limits. • Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
- Page 10 RTA-3805L TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 11 P.10 RTA-3805L P.10 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNIMOBILI.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@RTAPRODUCTS.COM OR EMAIL US:...
