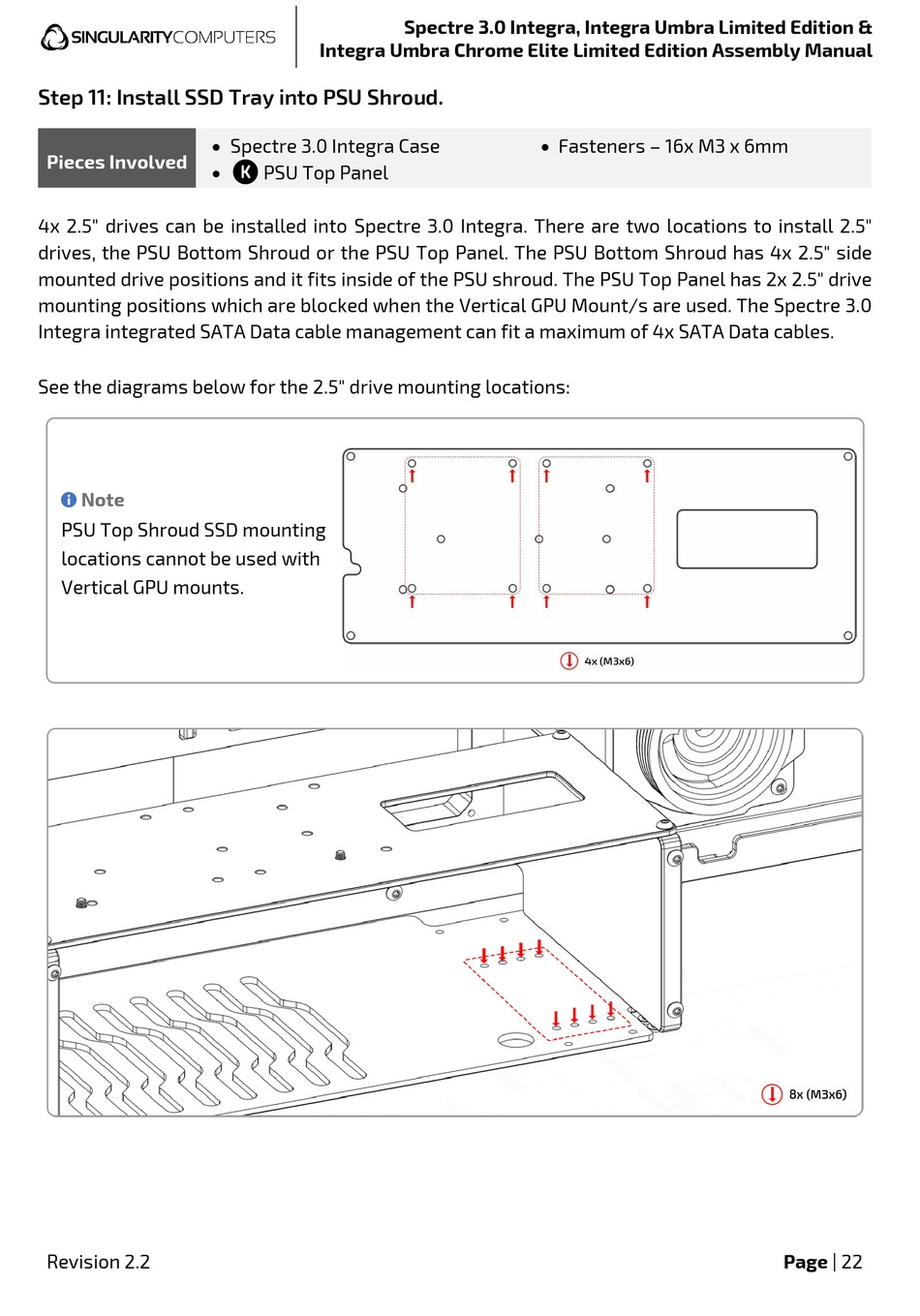

Step 11: Install SSD Tray into PSU Shroud.

Pieces Involved
4x 2.5" drives can be installed into Spectre 3.0 Integra. There are two locations to install 2.5"
drives, the PSU Bottom Shroud or the PSU Top Panel. The PSU Bottom Shroud has 4x 2.5" side
mounted drive positions and it fits inside of the PSU shroud. The PSU Top Panel has 2x 2.5" drive
mounting positions which are blocked when the Vertical GPU Mount/s are used. The Spectre 3.0
Integra integrated SATA Data cable management can fit a maximum of 4x SATA Data cables.
See the diagrams below for the 2.5" drive mounting locations:

Note
PSU Top Shroud SSD mounting
locations cannot be used with
Vertical GPU mounts.
Revision 2.2
Integra Umbra Chrome Elite Limited Edition Assembly Manual
• Spectre 3.0 Integra Case
k
•
PSU Top Panel
Spectre 3.0 Integra, Integra Umbra Limited Edition &
• Fasteners – 16x M3 x 6mm
Page | 22
