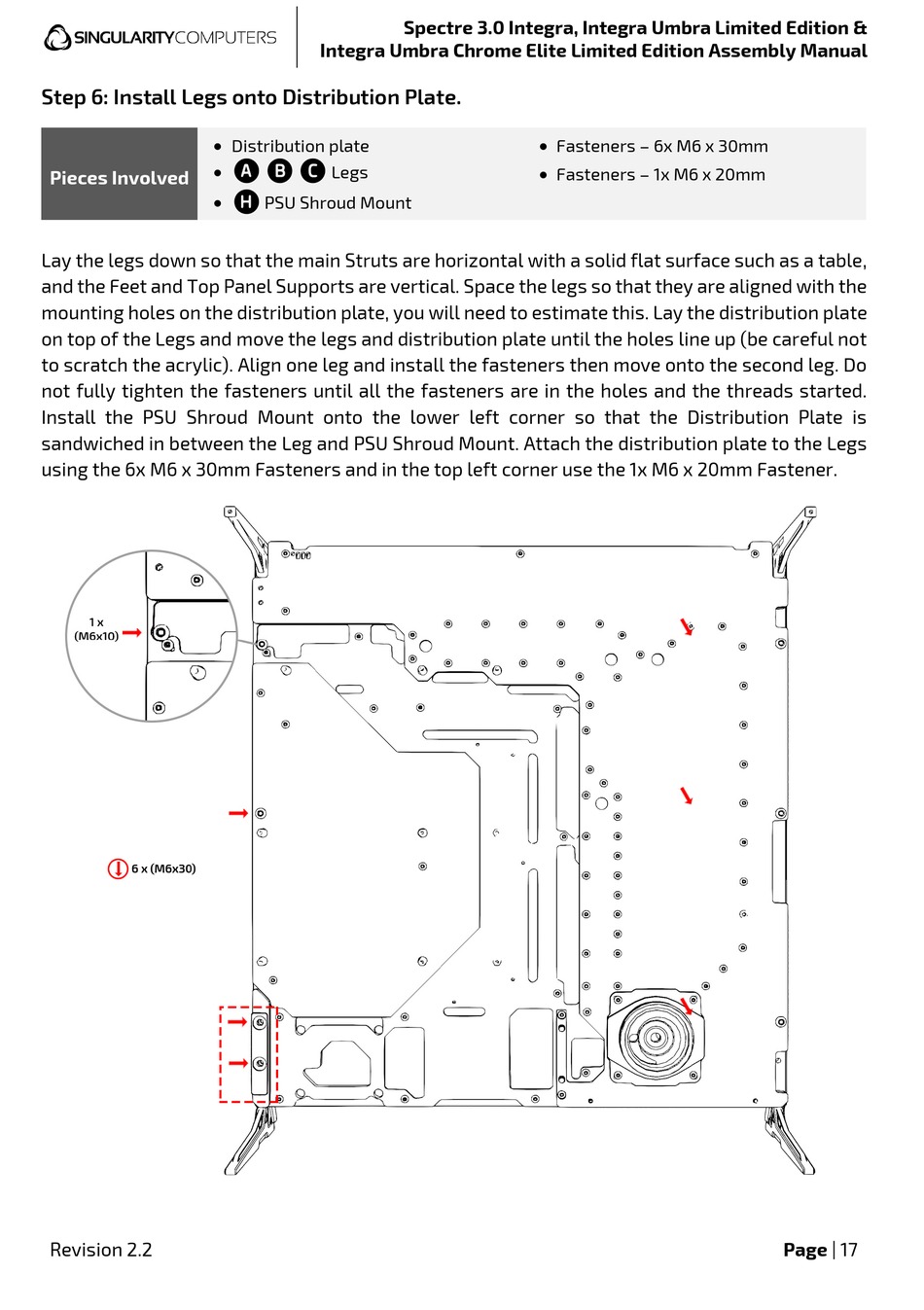

Step 6: Install Legs onto Distribution Plate.

Pieces Involved
Lay the legs down so that the main Struts are horizontal with a solid flat surface such as a table,
and the Feet and Top Panel Supports are vertical. Space the legs so that they are aligned with the
mounting holes on the distribution plate, you will need to estimate this. Lay the distribution plate
on top of the Legs and move the legs and distribution plate until the holes line up (be careful not
to scratch the acrylic). Align one leg and install the fasteners then move onto the second leg. Do
not fully tighten the fasteners until all the fasteners are in the holes and the threads started.
Install the PSU Shroud Mount onto the lower left corner so that the Distribution Plate is
sandwiched in between the Leg and PSU Shroud Mount. Attach the distribution plate to the Legs
using the 6x M6 x 30mm Fasteners and in the top left corner use the 1x M6 x 20mm Fastener.
Revision 2.2
Integra Umbra Chrome Elite Limited Edition Assembly Manual
•
Distribution plate
abc
•
Legs
h
•
PSU Shroud Mount
Spectre 3.0 Integra, Integra Umbra Limited Edition &
•
Fasteners – 6x M6 x 30mm
•
Fasteners – 1x M6 x 20mm
