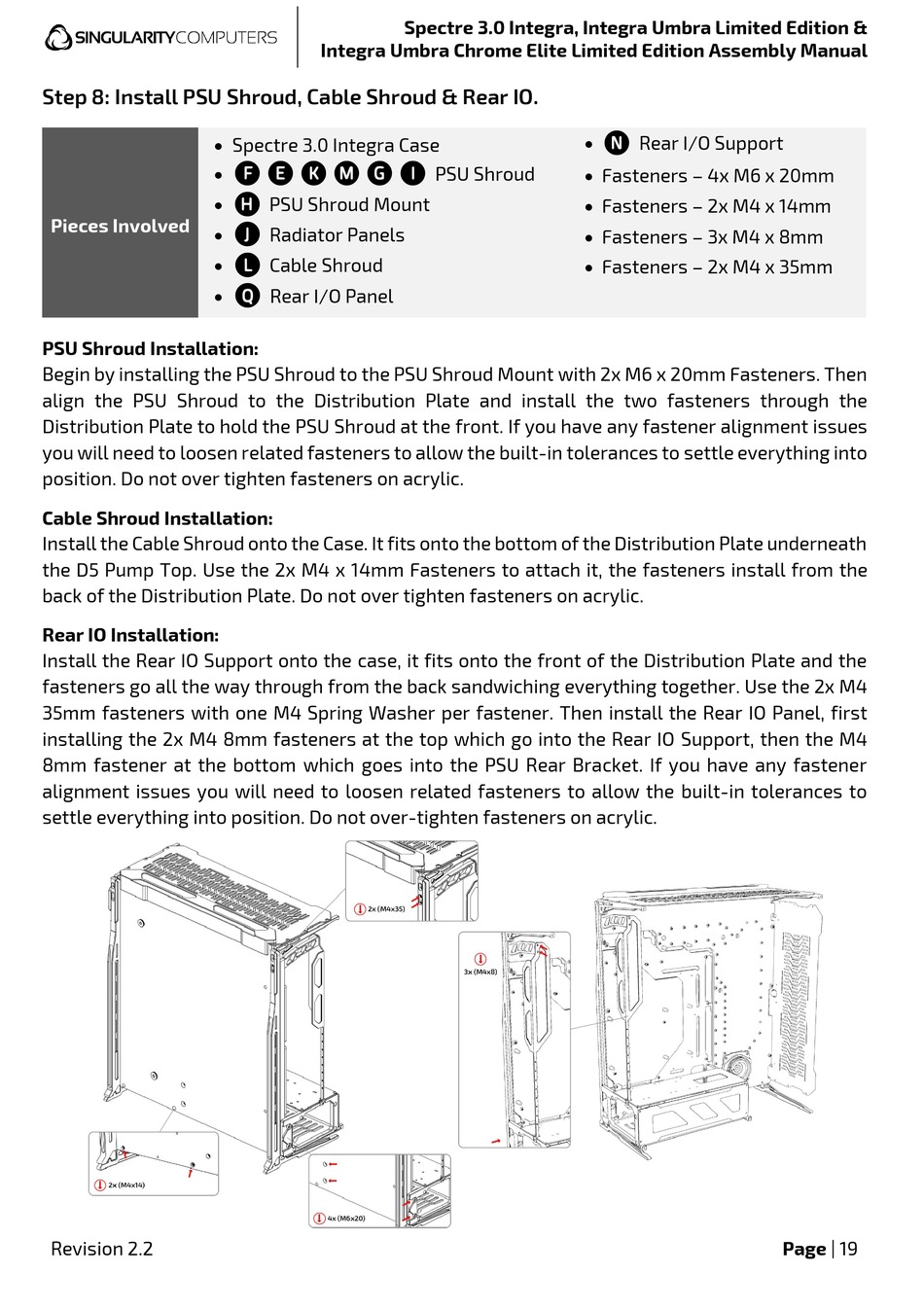

Step 8: Install PSU Shroud, Cable Shroud & Rear IO.
Pieces Involved
PSU Shroud Installation:
Begin by installing the PSU Shroud to the PSU Shroud Mount with 2x M6 x 20mm Fasteners. Then
align the PSU Shroud to the Distribution Plate and install the two fasteners through the
Distribution Plate to hold the PSU Shroud at the front. If you have any fastener alignment issues
you will need to loosen related fasteners to allow the built-in tolerances to settle everything into
position. Do not over tighten fasteners on acrylic.
Cable Shroud Installation:
Install the Cable Shroud onto the Case. It fits onto the bottom of the Distribution Plate underneath
the D5 Pump Top. Use the 2x M4 x 14mm Fasteners to attach it, the fasteners install from the
back of the Distribution Plate. Do not over tighten fasteners on acrylic.
Rear IO Installation:
Install the Rear IO Support onto the case, it fits onto the front of the Distribution Plate and the
fasteners go all the way through from the back sandwiching everything together. Use the 2x M4
35mm fasteners with one M4 Spring Washer per fastener. Then install the Rear IO Panel, first
installing the 2x M4 8mm fasteners at the top which go into the Rear IO Support, then the M4
8mm fastener at the bottom which goes into the PSU Rear Bracket. If you have any fastener
alignment issues you will need to loosen related fasteners to allow the built-in tolerances to
settle everything into position. Do not over-tighten fasteners on acrylic.
Revision 2.2
Integra Umbra Chrome Elite Limited Edition Assembly Manual
• Spectre 3.0 Integra Case
fekmgi
h
PSU Shroud Mount
J
Radiator Panels
l
Cable Shroud
q
Rear I/O Panel
Spectre 3.0 Integra, Integra Umbra Limited Edition &
PSU Shroud
n
Rear I/O Support
• Fasteners – 4x M6 x 20mm
• Fasteners – 2x M4 x 14mm
• Fasteners – 3x M4 x 8mm
• Fasteners – 2x M4 x 35mm
Page | 19
