Summary of Contents for SINGULARITY COMPUTERS WRAITH 2.0

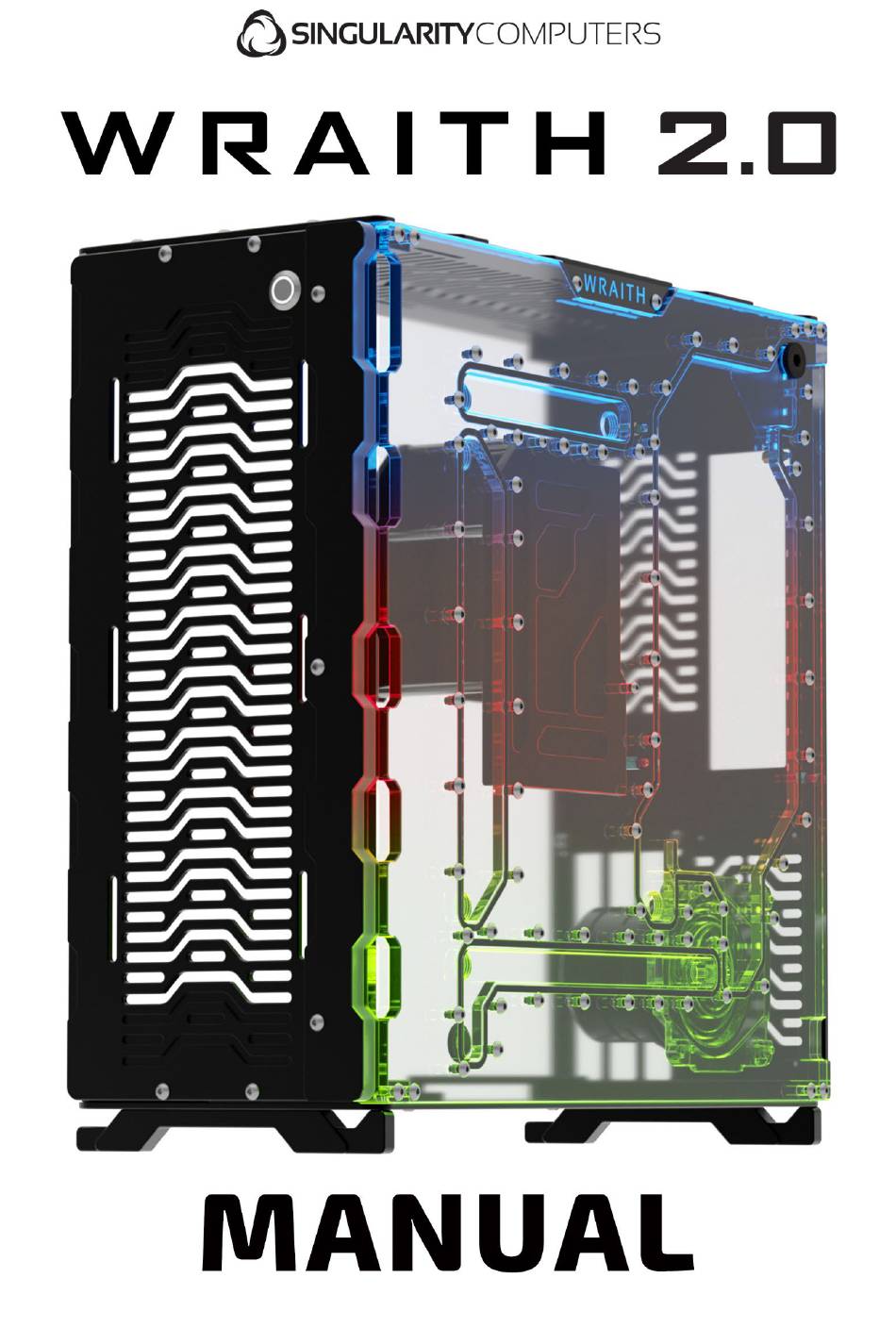

- Page 1 Revision 1.00...
-
Page 2: Table Of Contents
Step 3 - Attach LED Diffusor and LED Shroud to Front Panel ............10 Step 4 - Attach Rear I/O Block to Rear Panel ..................11 Step 5 - Assemble Wraith 2.0 Outer Panels .................... 11 Step 6 - Install Wraith 2.0 Manifold ......................12 Step 7 - Assemble Cable Shroud/Drive Cage and attach it to the case ...........13... - Page 3 IMPORTANT: Wraith 2.0 Warranty Wraith 2.0 has a limited 2-year warranty. Welcome to Singularity Computers and your new Wraith 2.0! We look forward to seeing what you create. 1: The Integrated Liquid Cooling System is pressure tested at the factory, so there is no need to adjust the fasteners on the manifold.
-
Page 4: Introducing Wraith 2.0
All metal components have been redesigned. Wraith 2.0 has two PSU locations, the one on the rear panel is for a future Wraith 2.0 version and addon which is coming for the case but cannot be used with the distribution plate. -
Page 5: Features
High End Components Despite its compact size Wraith 2.0 is designed to fit a high-end liquid cooled build. It can fit the largest high-end GPUs and the largest SFX-L PSUs. For the water-cooling system it can fit 2x 240mm radiators 30mm thick with a single set of fans and the D5 pump. -
Page 6: Specifications
Pump Compatibility All D5 pumps (Pump not included) Vertical GPU Mount 1x Singularity Computers PCIe 4.0 Bracket & Riser Cable Materials 6061 Anodized Aluminum, Cast Acrylic, Stainless Steel Manufacturing Process CNC Router, CNC Mill, CNC Lathe... -
Page 7: Wraith 2.0 Liquid Cooling System Layout
Wraith 2.0 Liquid Cooling System Layout Revision 1.00... -
Page 8: Table Of Panels, Accessories & Fasteners
Table of Panels, Accessories & Fasteners Panels Accessories Page Name Quantity Name Quantity Reference Top Panel Vertical GPU Mount Bottom Panel 30cm DRGB LED Strips Front Panel D5 O-Ring Rear Panel 11, 15 Power Button Corner Pieces Power Cable Feet Fasteners LED Diffusor Type... - Page 9 Assembly Tolerances & Alignment Wraith 2.0 uses CNC machining and very thick materials. This means it is manufactured with extreme precision and there is no flex or play in any of the materials. Due to this we have built in tolerances to most mounting holes to allow for the looser tolerances on the components being installed.
-
Page 10: Step 1 - Attach Corner Pieces To Top Panel
Step 1 - Attach Corner Pieces to Top Panel • Top Panel x1 • M4 x 10mm Button Head Fasteners x6 Parts Involved • Corner Pieces x2 Attach the corner pieces to the top panel using x6 M4 10mm Button Head Fasteners. Step 2 - Attach Corner Pieces and Feet to Bottom Panel •... -
Page 11: Step 3 - Attach Led Diffusor And Led Shroud To Front Panel
Attach Vertical GPU Mount to bottom panel in the position marked in the diagram below using x2 M4 6mm fasteners. Step 3 - Attach LED Diffusor and LED Shroud to Front Panel • Front Panel x1 • 30cm LED Strip x1 •... -
Page 12: Step 4 - Attach Rear I/O Block To Rear Panel
GPU to the Rear I/O Block during building the system. Remove the adhesive backing from the LED strip and attach it to the LED strip position highlighted in the diagram below. Step 5 - Assemble Wraith 2.0 Outer Panels • Front Panel Assembly x1 •... -
Page 13: Step 6 - Install Wraith 2.0 Manifold
Pieces facing so that the side with the two holes is facing upwards. Install the Wraith 2.0 Manifold into the Wraith 2.0 Metal Parts Assembly. If the Manifold does not fit then loosen off some of the fasteners holding the outer panels onto the Corner Pieces. Use x8 25mm M4 Fasteners to attach the Wraith 2.0 Manifold to the Corner Pieces. -
Page 14: Step 7 - Assemble Cable Shroud/Drive Cage And Attach It To The Case
Step 7 - Assemble Cable Shroud/Drive Cage and attach it to the case • • Struts x5 M3 x 25mm Fasteners x3 • • Drive Mount x1 Parts Involved M3 x 8mm Fasteners x5 • Cable Shroud x1 • M3 Thread Insert x4 Attach the x5 Struts to the Drive Mount using the x5 M3 8mm fasteners with arrows in diagram 1. - Page 15 For the maximum capacity configuration install the drives on their edge. Wraith 2.0 also has one 3.5” drive position in-front of the GPU for a side mounted 3.5” drive. Drive Configuration 1 Drive Configuration 2 Revision 1.00...
-
Page 16: Step 8 - Side Panel Window Installation
M4 x 6mm Fasteners x4 There are two PSU mounting locations on Wraith 2.0. The rear panel PSU mounting location is for Wraith Volta so you will need to install the PSU cover in this location using x4 6mm M4 Fasteners. -
Page 17: Filling & Draining The Loop
There are various options for drain valves. No drainage system will ever drain a loop 100%. The only way trapped coolant can be removed is the hard way in any build, dismantling the loop and individually draining each section. For more information about Singularity Computers and our products, please visit/scan the following links: Revision 1.00...
