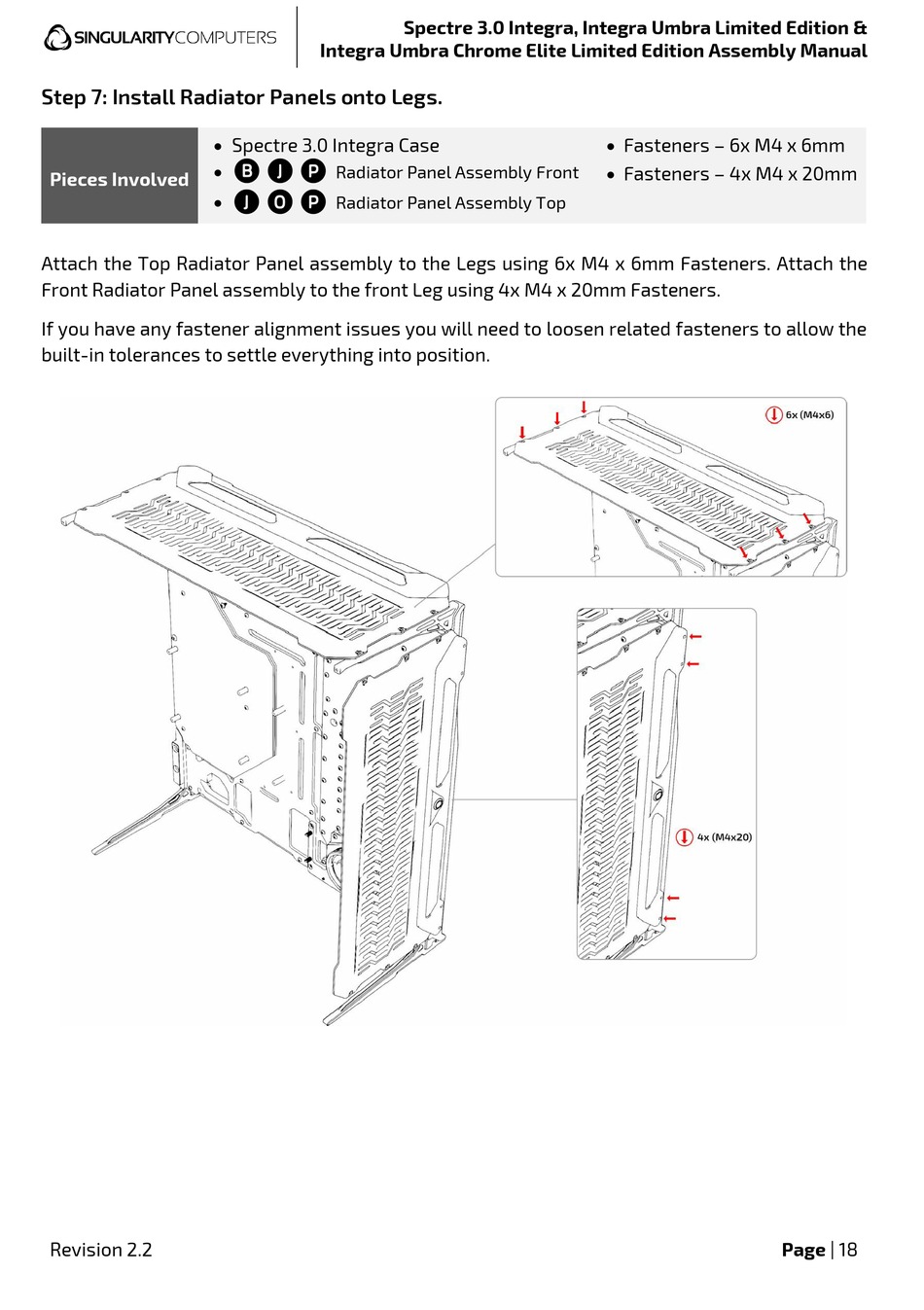

Step 7: Install Radiator Panels onto Legs.

Pieces Involved
Attach the Top Radiator Panel assembly to the Legs using 6x M4 x 6mm Fasteners. Attach the
Front Radiator Panel assembly to the front Leg using 4x M4 x 20mm Fasteners.
If you have any fastener alignment issues you will need to loosen related fasteners to allow the
built-in tolerances to settle everything into position.
Revision 2.2
Integra Umbra Chrome Elite Limited Edition Assembly Manual
• Spectre 3.0 Integra Case
bJp
•
Radiator Panel Assembly Front
Jop
•
Radiator Panel Assembly Top
Spectre 3.0 Integra, Integra Umbra Limited Edition &
• Fasteners – 6x M4 x 6mm
• Fasteners – 4x M4 x 20mm
Page | 18
