Summary of Contents for SINGULARITY COMPUTERS STREAM-S ITX

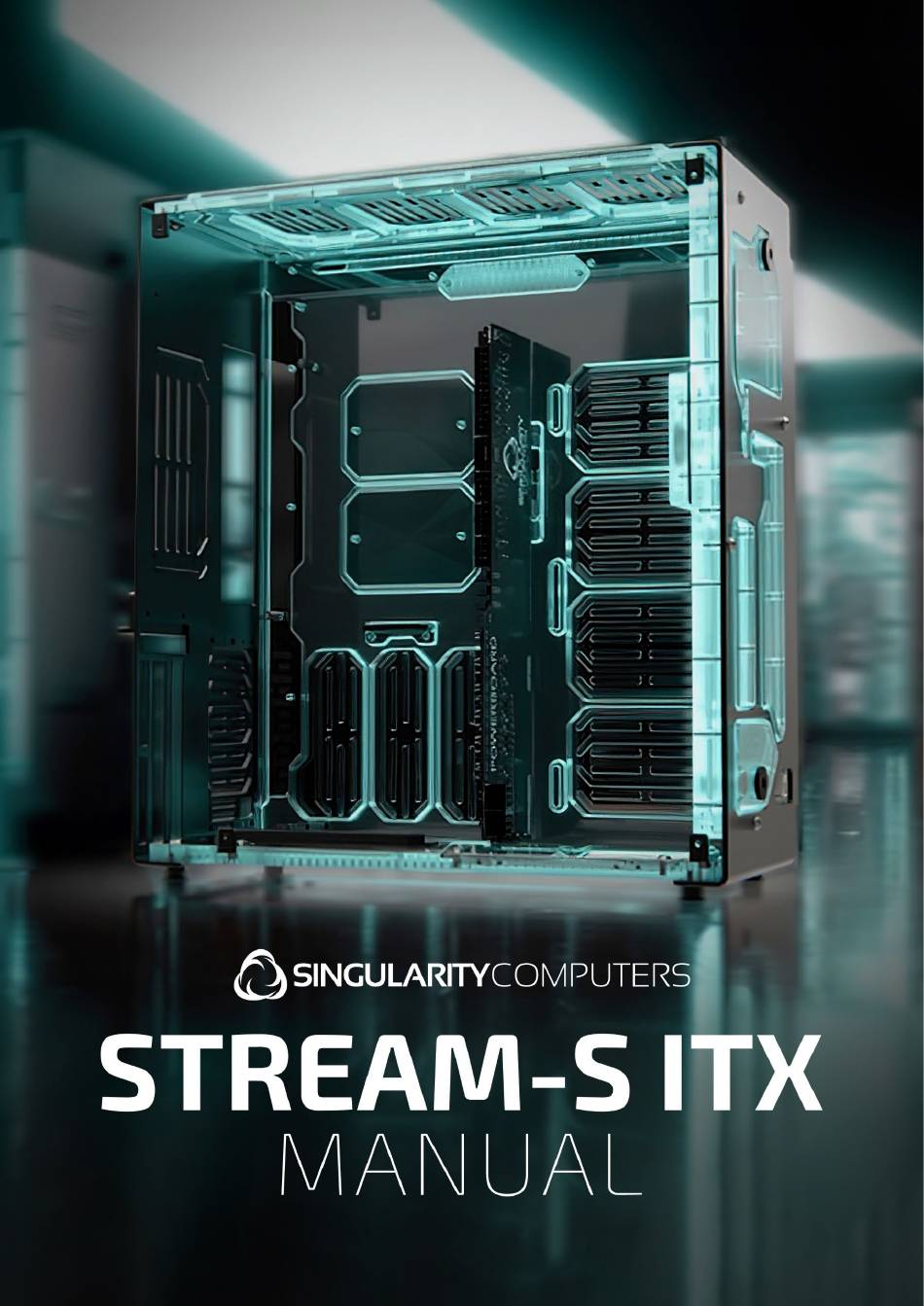

  • Page 1 V0.1...
  • Page 2 Streams-S ITX Manual Table of Contents Introduction ..............................2 Specifications & Included Items ....................... 2 Attach PowerBoard to PSU .........................3 Install PowerBoard & PSU ...........................3 Install Radiator on Rear Wall ........................5 Install 2.5” Drives ............................5 V0.1 Page | 1...
  • Page 3 Streams-S ITX Manual Introduction Stream-S is an SFF case designed for high end water-cooling. It has a distribution plate on the front panel which integrates a pump and reservoir. It fits x2 240mm radiators, a full-sized GPU and 2x 2.5” drives. Stream-S is the first case which does not need wires for the main cables. It has a PowerBoard which connects directly to the PSU and includes flexible PCBs which connect the PowerBoard to the motherboard and GPU.
  • Page 4 Streams-S ITX Manual Attach PowerBoard to PSU The PowerBoard is designed to fit the Asus ROG Loki 750W or 1000W PSUs. Align the connectors with the PSU and plug it in firmly. Check to make sure that all connectors are plugged in 100% of the way or it can cause damage to the PowerBoard, PSU and other components.
  • Page 5 Streams-S ITX Manual Once the PSU and PowerBoard are installed into the case the PowerBoard Attachment Panel can be re-attached. The PSU can also be attached to the Lower PSU Mount. It might be easier to attach this part to the PSU while the PSU is outside of the case.
  • Page 6 Streams-S ITX Manual Install Radiator on Rear Wall For installation of the radiator on the rear wall of the case the Rear Cover Panel will need to be removed. Install 2.5” Drives To install 2.5" drives, remove the Drive Mount Panel by undoing the M4 x 6mm Fasteners which hold it to the bottom panel.
