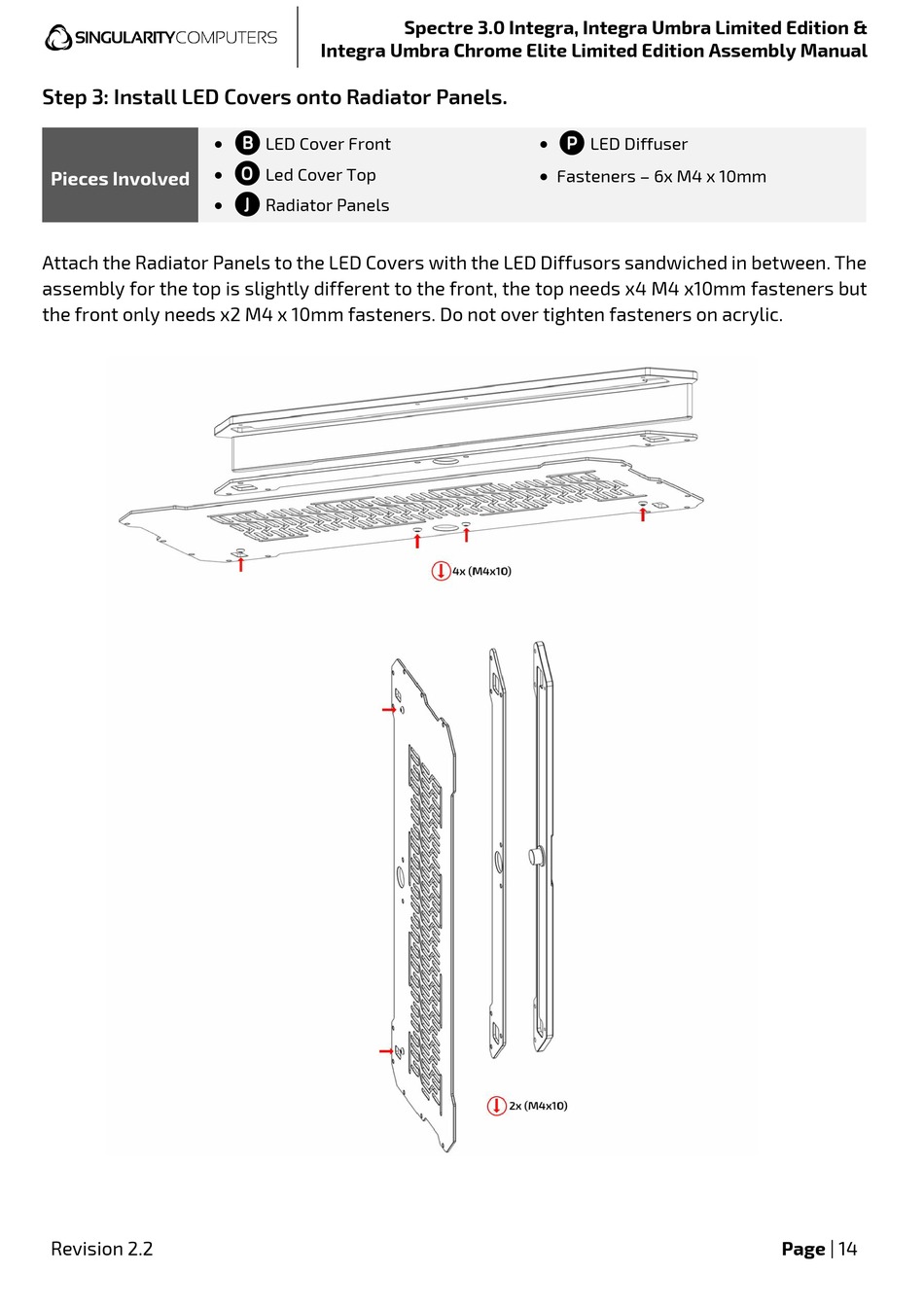

Step 3: Install LED Covers onto Radiator Panels.

Pieces Involved
Attach the Radiator Panels to the LED Covers with the LED Diffusors sandwiched in between. The
assembly for the top is slightly different to the front, the top needs x4 M4 x10mm fasteners but
the front only needs x2 M4 x 10mm fasteners. Do not over tighten fasteners on acrylic.
Revision 2.2
Integra Umbra Chrome Elite Limited Edition Assembly Manual
• B
LED Cover Front
o
•
Led Cover Top
j
•
Radiator Panels
Spectre 3.0 Integra, Integra Umbra Limited Edition &
• P
•
Fasteners – 6x M4 x 10mm
LED Diffuser
Page | 14
