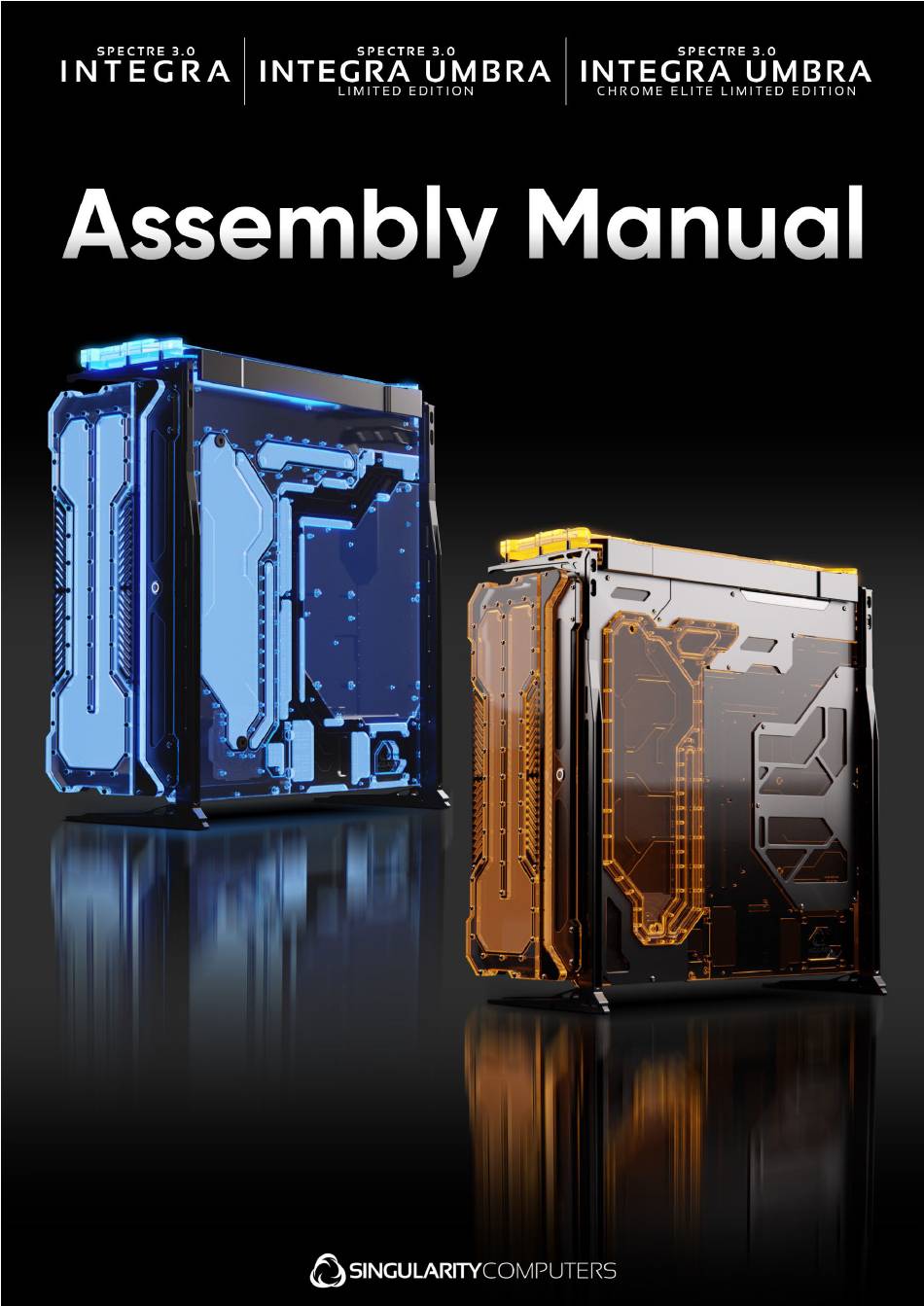

- Page 1 Revision 2.2...
-
Page 2: Table Of Contents
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Table of Contents Introduction ..............................2 Spectre 3.0 Integra Features ........................4 Spectre 3.0 Integra Specifications ......................6 Included Items ............................... 8 Warranty ................................ 9 Table of Fasteners &... -
Page 3: Introduction

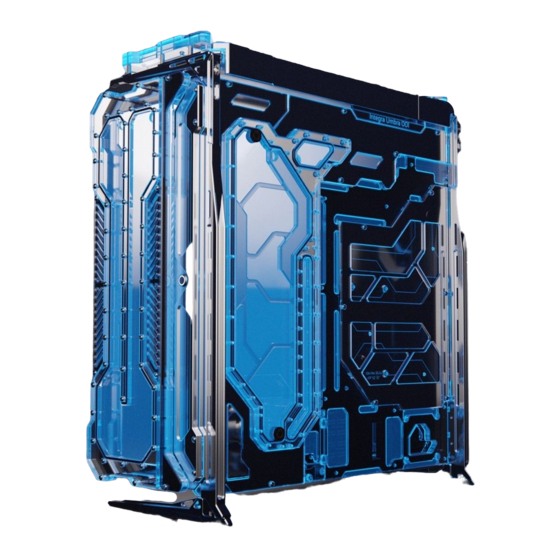

Spectre 3.0 Integra Umbra Limited Edition is the final case in the Eclipse series which includes Penumbra and Antumbra. Umbra is the darkest of the three cases and is a whole new case design based on the new Spectre 3.0 Integra platform. - Page 4 Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Spectre 3.0 Integra Umbra Chrome Elite Limited Edition In contrast to the dark themed Umbra, we have created an extremely limited silver mirror chrome version.
-
Page 5: Spectre 3.0 Integra Features
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Spectre 3.0 Integra Features Integrated Liquid Cooling Features • Reservoir, D5 Pump Top, D5 Pump Cover, Fill Port, Drain Port, parts of the cooling loop. PowerBoard Integration •... - Page 6 GPUs. Design & Engineering We are all experienced system builders at Singularity Computers having built high end water- cooled systems for over 15 years. Our approach to product development begins with a need for our own builds and so the origin is always function.
-
Page 7: Spectre 3.0 Integra Specifications
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Spectre 3.0 Integra Specifications Water-cooling Integration Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. Ports 6x G1/4” BSPP | 1x Fill Port | 1x Drain Port Compatible with all D5 pumps (Not included) Pump Electronics Integration... - Page 8 Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Maximum CPU Cooler Height 170 mm Maximum PSU Length 220mm (Space allowed for cables inside of PSU shroud). Front Panel I/O No Front I/O | Vandal Switch 16mm | White LED Vertical GPU Mount x2 with 3 slots (60mm) spacing.
-
Page 9: Included Items
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Included Items Spectre 3.0 Integra Integra Umbra Integra Umbra Items Limited Edition Chrome Elite Limited Edition Spectre 3.0 Integra Case Distribution Plate Integrated Components: •... -
Page 10: Warranty
That they did not occur after the item was shipped from the Singularity Computers Factory or Retailer. If there are more than 5 marks which are beyond 5mm in length and visible when facing perpendicular to the surface. -
Page 11: Table Of Fasteners & Panels
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Table of Fasteners & Panels Fasteners Used in Used in Type Quantity Type Quantity Step(s) Step(s) M3x6mm Mounting M4x35mm Motherboard Phillips Head M3x6mm Springwasher 5, 7 6, 8 M4x6mm... - Page 12 Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Vertical GPU Included list Revision 2.2 Page | 11...
-
Page 13: Assembly Manual
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Assembly Manual Assembly Note Spectre is built from thick and strong CNC Machined aluminum components with tight tolerances. There is no flex in the metal parts like there is on other cases. Due to this we have had to build tolerances into all the mounting holes on Spectre 3.0 Integra. -
Page 14: Step 2: Install Power Button
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 2: Install Power Button. • • Power Button Pieces Involved LED Cover Front Remove the Power Button retention ring and O-ring. Thread the cable through from the front of the Front LED Cover until the Power Button is in position. -
Page 15: Step 3: Install Led Covers Onto Radiator Panels
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 3: Install LED Covers onto Radiator Panels. • • LED Cover Front LED Diffuser • Led Cover Top • Fasteners – 6x M4 x 10mm Pieces Involved •... -
Page 16: Step 4: Assemble Legs
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 4: Assemble Legs. • 2x Struts • Fasteners – 4x M4 x 10mm • 2x Feet • Fasteners – 4x M4 x 20mm Pieces Involved •... -
Page 17: Step 5: Assemble Psu Shroud
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 5: Assemble PSU Shroud. • • PSU Rear Bracket PSU Bottom Panel • • PSU Front Bracket 2x Side Panel Window Bracket Pieces Involved •... -
Page 18: Step 6: Install Legs Onto Distribution Plate
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 6: Install Legs onto Distribution Plate. • • Distribution plate Fasteners – 6x M6 x 30mm • • Legs Fasteners – 1x M6 x 20mm Pieces Involved •... -
Page 19: Step 7: Install Radiator Panels Onto Legs
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 7: Install Radiator Panels onto Legs. • Spectre 3.0 Integra Case • Fasteners – 6x M4 x 6mm • • Fasteners – 4x M4 x 20mm Radiator Panel Assembly Front Pieces Involved •... -
Page 20: Step 8: Install Psu Shroud, Cable Shroud & Rear Io
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 8: Install PSU Shroud, Cable Shroud & Rear IO. • • Spectre 3.0 Integra Case Rear I/O Support fekmgi • PSU Shroud • Fasteners – 4x M6 x 20mm •... -
Page 21: Step 9: Install Pcie 4.0 Vertical Gpu Mount
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 9: Install PCIe 4.0 Vertical GPU Mount. • Spectre 3.0 Integra Case • Fasteners – 2x M4 x 10mm • PCIe 4.0 Vertical GPU Bracket •... -
Page 22: Step 10: Install Pcie 4.0 2
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 10: Install PCIe 4.0 2 Vertical GPU Mount. (This add-on needs to be purchased separately; it is not included with the case). • Spectre 3.0 Integra Case •... -
Page 23: Step 11: Install Ssd Tray Into Psu Shroud
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 11: Install SSD Tray into PSU Shroud. • Spectre 3.0 Integra Case • Fasteners – 16x M3 x 6mm Pieces Involved • PSU Top Panel 4x 2.5"... -
Page 24: Step 12: Install D5 Pump (Not Included)
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 12: Install D5 Pump (Not included). • Spectre 3.0 Integra Case • D5 O-Ring Pieces Involved • D5 Pump Cover • D5 Pump (Not Included) It is easier to do this when the Case or Distribution Plate is horizontal because then you can sustain downward pressure on the pump while tightening the pump cover to prevent the O-ring moving out of position. -
Page 25: Step 13: Install Side Panel Window
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 13: Install Side Panel Window. Install the Side Panel Window using 4x M4 x 10mm Fasteners. Place the Side Panel Window in front of the case, pick up one corner and align it with the first hole. Install the fastener but do not fully tighten it. -
Page 26: Step 14: Filling & Draining The Loop
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Step 14: Filling & Draining The Loop. • Air Pressure Tester • External Power Supply for D5 Pump Recommended • Long Fill Tube Items Filling the Loop: To fill the loop, we strongly recommend a long fill tube. -
Page 27: Liquid Cooling System Layout
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Liquid Cooling System Layout Revision 2.2 Page | 26... -
Page 28: Spectre 3.0 Integra Powerboard
Spectre 3.0 Integra, Integra Umbra Limited Edition & Integra Umbra Chrome Elite Limited Edition Assembly Manual Spectre 3.0 Integra PowerBoard (Information to be added shortly). Revision 2.2 Page | 27...
