Summary of Contents for SINGULARITY COMPUTERS SPECTRE 2.0
- Page 1 Revision 2.10...
- Page 2 Spectre 2.0 has a 2-year limited warranty. Welcome to Singularity Computers and your new Spectre 2.0! We look forward to seeing what you create. 1: The Integrated Liquid Cooling System is pressure tested at the factory, so there is no need to adjust the fasteners on the manifold.
-
Page 3: Table Of Contents
Contents Introduction & Features ............................3 Integrated Liquid Cooling Components ......................3 Integrated Cable management ........................3 Advanced Manufacturing Techniques & Quality ................3 Specifications ..............................4 Tools Required ..............................5 Assembly Note ..............................5 Case Assembly ..............................6 Step 0: Struts Assembly ..........................6 Step 1: Struts to manifold. -
Page 4: Introduction & Features

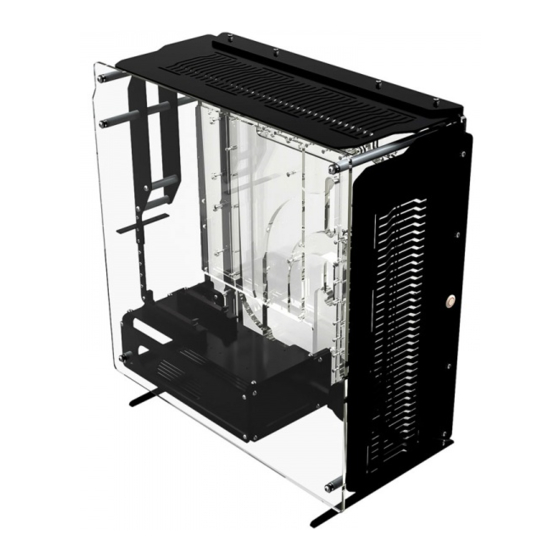

D5 pump, two 360mm x 60mm radiators and can handle all of the most high-end components on the market. A second traditional loop can also be added for dual loops. A Singularity Computers Protium D5 Pump Cover is included with the case. Integrated Cable management Integrated cable management is another unique and also cost saving feature in Spectre. -
Page 5: Specifications
Specifications Form Factor XL-ATX (Max: 320mm x 285mm 7 Expansion Slots, 8th slot fits but component cannot be mounted), E-ATX, ATX, M-ATX, Mini-DTX, Mini ITX. Case Form Factor Mid Tower Case Dimensions L 533 mm x W 303 mm x H 575 mm Case Weight 16 Kg Manifold Weight... -
Page 6: Tools Required
Tools Required • M3 Hex Key – Not included • M6 Metric Hex Key – Not included • M4 Hex Key – Not included Assembly Note Spectre is built from thick billet alloy parts with very tight tolerances. There is no flex in the metal parts like there is on other cases. -
Page 7: Case Assembly
Case Assembly Step 0: Struts Assembly M4 x 20 2 pcs M4 x 30 + Washer 4 pcs Spectre | Assembly Manual... -
Page 8: Step 1: Struts To Manifold
Step 1: Struts to manifold. Parts in this step M6 x 40 5 pcs M6 x 50 2 pcs Spectre | Assembly Manual... -
Page 9: Step 2: Top And Front Plate To Manifold
Step 2: Top and Front Plate to Manifold. Parts in this step M4 x 14 8 pcs M4 Cap Nut 16 pcs M4 x 45 8 pcs M4 Washer 32 pcs M4 Spring Washer 16 pcs Spectre | Assembly Manual... - Page 10 Spectre | Assembly Manual...
-
Page 11: Step 3: Psu Bracket Assembly
Step 3: PSU Bracket Assembly. Parts in this step 3A + 3C M6 x 10 + 18mm Stainless Steel Post 1 set M4 x 8 17 pcs M4 x 6 4 pcs Spectre | Assembly Manual... -
Page 12: Step 4: Psu Bracket Assembly To Manifold
Step 4: PSU Bracket Assembly to Manifold. M6 x 20 4 pcs Spectre | Assembly Manual... -
Page 13: Step 5: Level 1 Stainless Steel Posts
Step 5: Level 1 Stainless Steel Posts. M6 x 50 2 pcs 63mm Level 1 Stainless Steel Posts 2 pcs 180mm Stainless Steel Posts 2 pcs M6 x 40 2 pcs Spectre | Assembly Manual... -
Page 14: Step 6: Level 2 & 3 Rear I/O Assembly
Step 6: Level 2 & 3 Rear I/O Assembly. Parts in this step M6 x 20 4 pcs M6 x 25 Grub Screw 4 pcs 54mm Level 2 Stainless Steel Posts 2 pcs 60mm Level 3 Stainless Steel Posts 2 pcs M4 x 8 1 pc Spectre | Assembly Manual... -
Page 15: Step 7: Attach The Side Panel To The Case
Step 7: Attach The Side Panel to The Case. M6 x 10 5 pcs Step 8: Vertical GPU Addon SINGLE 6-32 x 0.25” 2 pcs DUAL 6-32 x 0.5” + Washer + Nut 2 pcs M4 x 8 M4 x 8 2 pcs Spectre | Assembly Manual...
