SINGULARITY COMPUTERS SPECTRE INTEGRA-M Assembly Manual

Hide thumbs Also See for SPECTRE INTEGRA-M:
Table of Contents

Advertisement

Quick Links

Download this manual
vv
Revision 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPECTRE INTEGRA-M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SINGULARITY COMPUTERS SPECTRE INTEGRA-M

Summary of Contents for SINGULARITY COMPUTERS SPECTRE INTEGRA-M

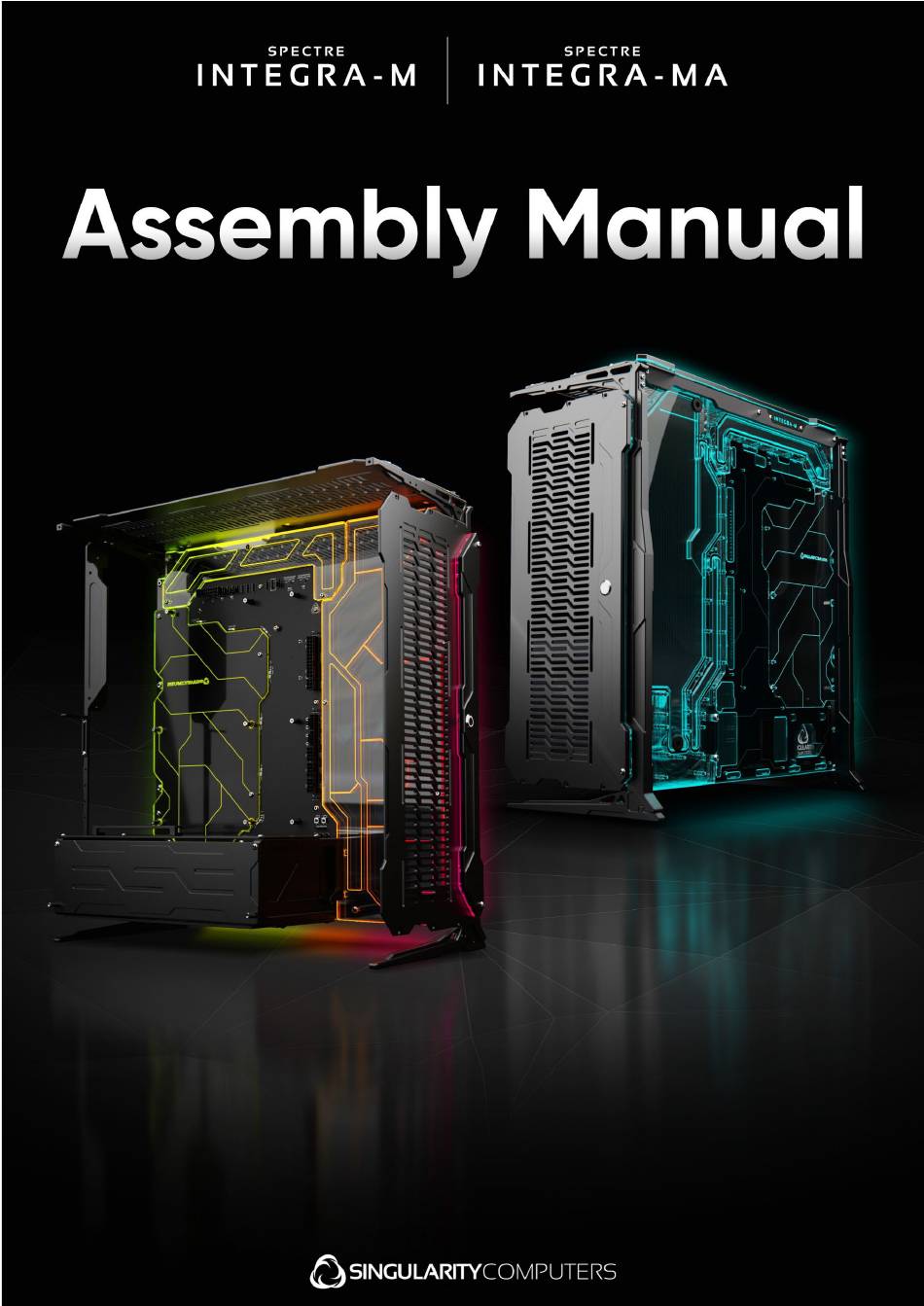

  • Page 1 Revision 1.1...

  • Page 2: Table Of Contents

    Spectre Integra-M/MA Assembly Manual Table of Contents Introduction................................2 Spectre Integra-M/MA Features ........................3 Spectre Integra-M/MA Specifications ......................5 Included Items ..............................6 Table of Fasteners & Panels ........................... 7 Warranty ................................8 Assembly Manual ............................... 9 Step 1: Install ARGB 50cm LED Strips......................9 Step 2: Install Power Button.

  • Page 3: Introduction

    Spectre Integra-M Spectre Integra-M is a more compact ATX version of Spectre. It is a full re-design using everything we have learned from the development of Spectre which has continued since 2015. Integra-M is 25% smaller than Spectre 3.0 (all versions) but maintains all the features, except that it fits ATX...

  • Page 4: Spectre Integra-M/Ma Features

    The PowerBoard is a PCB integrating 24pin, EPS, PCIE and 12VHPWR along with PWM and ARGB Hubs, SATA and Power and Reset Buttons. The Spectre Integra-M PowerBoard also has an integrated touch sensing Power Button. The PowerBoard has x24 ARGB and UV LEDs positioned around the external and internal perimeter to optimally light up the distribution plate.
  • Page 5 Storage • Spectre Integra-M/MA has 7x 2.5” Drive positions. Two are on the top of the PSU shroud, four inside of the PSU shroud and there is one integrated on the PowerBoard. The two on top of the PSU shroud cannot be used with vertically mounted GPUs.

  • Page 6: Spectre Integra-M/Ma Specifications

    Spectre Integra-M/MA Assembly Manual Spectre Integra-M/MA Specifications Water-cooling Integration Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling (Integra-M only) loop. Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port. Pump: (Not included): Compatible with all D5 pumps.

  • Page 7: Included Items

    Spectre Integra-M/MA Assembly Manual Front Panel I/O No Front I/O | Vandal Switch 16mm | White LED Vertical GPU Mount x2 with 3 slots (60mm) spacing. x1 is included. 2nd Vertical GPU Mount Available Separately here. Riser cable not included, compatible with Linkup PCIE 4.0 Riser Cables.

  • Page 8: Table Of Fasteners & Panels

    Spectre Integra-M/MA Assembly Manual Table of Fasteners & Panels Fasteners Type Quantity Type Quantity M3 x 6mm M4 x 20mm M4 x 6mm M6 x 20mm M4 x 8mm M4 x Springwasher M4 x 10mm Standoff M3-M4 18mm M4 x 12mm...

  • Page 9: Warranty

    That they did not occur after the item was shipped from the Singularity Computers Factory or Retailer. If there are more than 5 marks which are beyond 5mm in length and visible when facing perpendicular to the surface.

  • Page 10: Assembly Manual

    Spectre Integra-M/MA Assembly Manual Assembly Manual  Assembly Note Spectre is built from thick and strong CNC Machined aluminum components with tight tolerances. There is no flex in the metal parts like there is on other cases. Due to this we have had to build tolerances into all the mounting holes on Spectre Integra.

  • Page 11: Step 2: Install Power Button

    Spectre Integra-M/MA Assembly Manual Step 2: Install Power Button. Remove the Power Button retention ring and O-ring. Thread the cable through from the front of the Front LED Cover until the Power Button is in position. Install the O-ring onto the Power Button and then tighten the retention ring to hold it in position.

  • Page 12: Step 3: Install Legs Onto Distribution Plate

    Spectre Integra-M/MA Assembly Manual Step 3: Install Legs onto Distribution Plate. Install the Legs onto the Distribution Plate using 8x M6x20mm fasteners. It is best to lay the legs down on a table in position, then place the distribution plate on top, align the legs to the holes and then install the fasteners.

  • Page 13: Step 4: Install Feet And Top Supports

    Spectre Integra-M/MA Assembly Manual Step 4: Install Feet and Top Supports. Install the Feet, for each one using a M4 x 16mm fastener with an M4 Spring Washer on the middle hole and 2x M4 x 10mm fasteners with M4 Spring Washers on the outer holes. It is best do this with the distribution plate laying flat and on the edge of a table so that you can easily access the Feet.

  • Page 14: Step 5: Install Led Diffusors & Radiator Panels

    Spectre Integra-M/MA Assembly Manual Step 5: Install LED Diffusors & Radiator Panels. Attach the Top Cover to one of the Radiator Panels with an LED Diffusor in between using 2x M4 x 10mm fasteners. Attach the Front Cover to one of the...

  • Page 15: Step 6: Assemble And Attach Psu Shroud

    Spectre Integra-M/MA Assembly Manual Step 6: Assemble and attach PSU Shroud. Attach the PSU Bottom Shroud to the PSU Mount and PSU Front Shroud using 4x M4 x 6mm fasteners. Install the PSU Side Shroud using 2x M4 x 6mm fasteners at the top and 2x Standoff M4 M-F 13mm at the bottom.

  • Page 16: Step 7: Install Pcie 4.0 Vertical Gpu Mount

    Spectre Integra-M/MA Assembly Manual Step 7: Install PCIe 4.0 Vertical GPU Mount Step 1: Install Riser Cable. Install the PCIe Riser Cable (not included). Check you have the correct orientation (see diagram to the right). The cutout side of the Vertical GPU Bracket PCIE 4.0 needs to line up with the protruding plastic cover under the Vertical GPU Riser Cable.

  • Page 17: Step 8: Install Pcie 4.0 2 Nd Vertical Gpu Mount

    Spectre Integra-M/MA Assembly Manual Step 8: Install PCIe 4.0 2 Vertical GPU Mount. (This add-on needs to be purchased separately; it is not included with the case). Step 1: Install Riser Cable. Install the PCIe Riser Cable (not included). Check you have the correct orientation (see diagram to the right).

  • Page 18: Step 9: Install I/O Panel

    Spectre Integra-M/MA Assembly Manual Step 9: Install I/O Panel. Install 2x M4 x 18mm Stand Offs onto the Top Support and then install the Rear IO Panel using 3x M4 x 8mm fasteners. Revision 1.1 Page | 17...

  • Page 19: Step 10: Install Ssd Tray Into Psu Shroud

    Step 10: Install SSD Tray into PSU Shroud. 4x 2.5" drives can be installed into Spectre Integra-M/MA. There are two locations to install 2.5" drives, the PSU Bottom Shroud or the PSU Top Panel. The PSU Bottom Shroud has 4x 2.5" side mounted drive positions and it fits inside of the PSU shroud.

  • Page 20: Step 11: Install D5 Pump (Not Included)

    Spectre Integra-M/MA Assembly Manual Step 11: Install D5 Pump (Not included).  Spectre Integra-M only. It is easier to do this when the Case or Distribution Plate is horizontal because then you can sustain downward pressure on the pump while tightening the pump cover to prevent the O-ring moving out of position.

  • Page 21: Step 12: Install Side Panel Window

    Spectre Integra-M/MA Assembly Manual Step 12: Install Side Panel Window. Install the Side Panel Window using 4x M4 x 10mm Fasteners. Place the Side Panel Window in front of the case, pick up one corner and align it with the first hole. Install the fastener but do not fully tighten it.

  • Page 22: Step 13: Filling & Draining The Loop

    Draining the Loop: There are various options for drain valves. For Spectre Integra-M it is in quite a visible location around the back of the case, so we suggest something visually appealing. We like to use no spill quick disconnects but any high-quality drain valve will work.

  • Page 23: Liquid Cooling System Layout

    Spectre Integra-M/MA Assembly Manual Liquid Cooling System Layout  Spectre Integra-M only. Revision 1.1 Page | 22...

  • Page 24: Spectre Integra-M/Ma Powerboard

    Spectre Integra-M/MA Assembly Manual Spectre Integra-M/MA PowerBoard  All PowerBoards need PowerBoard Linking Cables. Revision 1.1 Page | 23...
  • Page 25 Your motherboard has 2X 8pin EPS connectors, then a better power supply needs to be used. Singularity Computers offers custom sleeved and shorter PSU cable kits that are a better fit in the PSU shroud area than stock cables.
  • Page 26 Spectre Integra-M/MA Assembly Manual ARGB On/Off Switch: This switch connects/disconnects the ARGB control signal from the built-in LEDs on the PowerBoard. When turned ON, the LEDs will immediately light up. When turned OFF, the LEDs will not light up from the next time the system is turned ON from a cold boot but will display the last colour they were displaying before the switch was turned OFF.
  • Page 27 PowerBoard inside the acrylic cut out, touch the Singularity Computers logo to turn the system on. Fourth is the power button built into the motherboard, it depends on the model whether it has it or not.

This manual is also suitable for:

Spectre integra-ma
