Start-up

The digital display

Parameter settings
On/Off
Press to turn the cabinet on. Press
the cabinet off. The software version of the cabinet will be shown
when turning the cabinet on, followed by the software variant. The
cabinet is ready when the temperature is displayed.
The cabinet will always commence operation when initially
connected to a power supply. For instance after a power outage or
when plugging the cabinet in for the first time.
Make sure the cabinet is switched off at
the socket before service is performed
on electrical parts.
It is not sufficient to switch off the
cabinet on the
persist in some electrical parts of the
cabinet.
If fuses or similar are to be replaced,
the cabinet must be moved to a no-risk
area.
WARNING –
DO NOT OPEN, MAINTAIN OR SERVICE
IN AN AREA WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
ATTENTION –
High and low temperature alarms set
up in the cabinets' controller (including
EAL alarms) must be accompanied by
additional redundant independent
external alarms to ensure maximum
item safety.
N/A
Defrosting Alarms A2, A3, A4, A5
for 6 seconds to turn
key, as current will

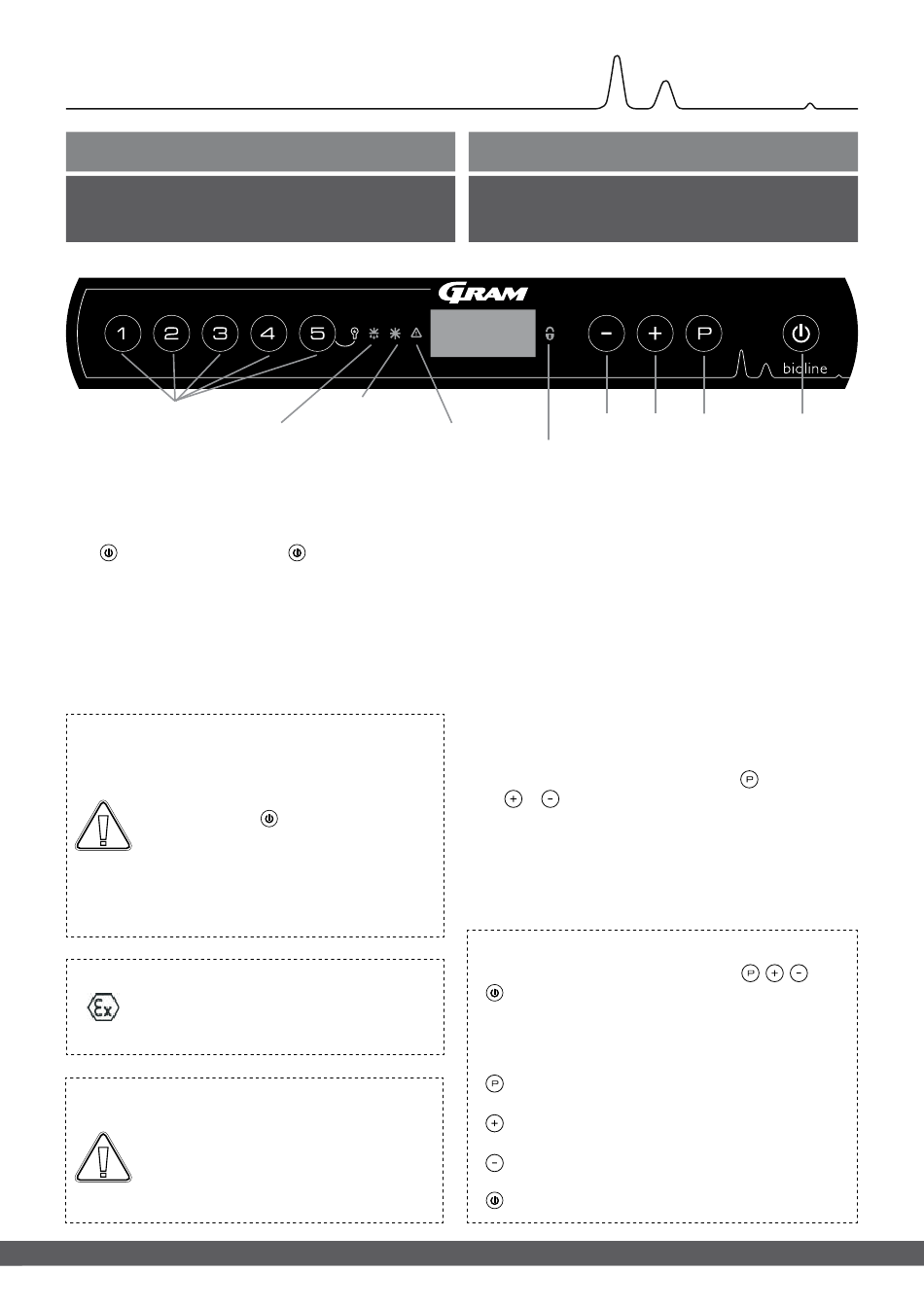

Temperature settings
Key pad lock is
activated
• Parameter setting
Gives access to the cabinets configurable parameters, such as
alarms, test program and sensor values.
• Defrost
Defrost in progress.
• Key pad lock
Keypad is locked, no access to functions or menus.
• Temperature setting
Setting of temperature setpoint and navigation in the menus.
• On/Off
Turn the cabinet On or Off, and navigation in the menus.
Temperature setting
Temperature adjustments are done by holding
either or . Confirm the settings by letting go of the buttons.
All-round introduction to navigating the menu
Beyond setting the temperature and on/off,
is used to navigate the menus and set the parameters
for the cabinet.
The buttons have following functions in the menus:
Open a menu step/confirm a set value in the parameter
settings.
Scroll upwards in a given menu/raise a given value in
parameter settings (alarm limit for instance).
Scroll downwards in a given menu/lower a given value
in parameter settings (alarm limit for instance).
Go a menu step back.
b i o l i n e
On/Off
and pressing
, , and
