Tripad - Javad DELTA-3 User Manual

DGPS accuracy < 0.25 m (post-processing)
< 0.5 m (real-time)
Real-time heading ~ 0.004/L [rad] RMS, where L is the antenna separation
accuracy in [m]
Power Specifications
Battery External
External Input Voltage +4.5 to +35 volts (1 external power port)
Power Consumption 8 W
I/O
GNSS Antenna 50 Ohm TNC, +5 VDC (120 mA) to power LNA.
Connector
Communication Ports Two serial RS232 port (up to 460.8 kbps)
Two high-speed RS232/RS422 serial port (up to 460.8
Kbps)
High-speed USB 2.0 device port (480 Mbps)
Full-duplex 10BASE-T/100BASE-TX Ethernet port
CAN 2.0
Other I/O Signals Two 1 PPS
Two Event Markers
IRIG A134, A137, B124, B137
External Reference Frequency Input/Output
Status Indicator Two LEDs, two function keys (TriPad)
Memory and Recording
Internal Memory Up to 16 GB of on-board non-removable memory for
data storage
Raw Data Recording Up to 100 times per second (100Hz)
Real Time Data
Input/Output JPS, RTCM SC104 v. 2.x and 3.x, CMR
Output NMEA 0183 v. 2.x and 3.0, BINEX
Environmental
Enclosure Aluminum extrusion, waterproof IP66
Operating /Storage
-40° C to +70° C / -
Temperature
Humidity 95%
Dimensions 4.3 x 1.4 x 5.6 / max 6.3 inches
(109 x 35 x 141/ max 160 mm) with connectors
Weight 0.92 lbs (0.42 kg)
6
45° C to +85° C

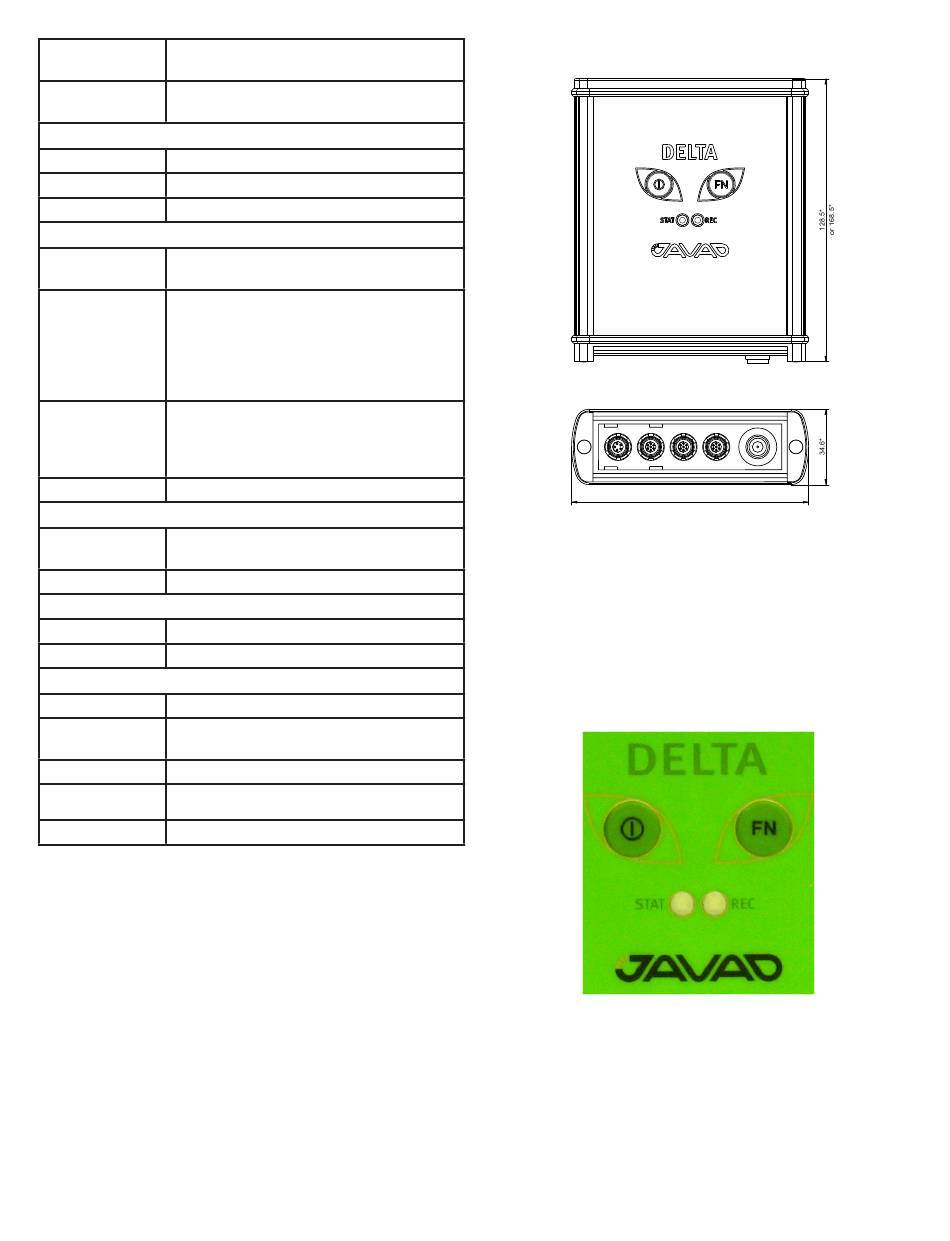

Figure 2.

TriPad

The TriPad is the receiver's minimum interface used
to display and control data input and output.
Figure 3.
The STAT (status) LED displays the number of
tracked satellites.
• Green – eight and more satellites.
• Yellow – five to seven satellites.
• Red – less than five satellites.
• No light – no satellites.
108.6*
Dimensions in mm
DELTA TriPad
