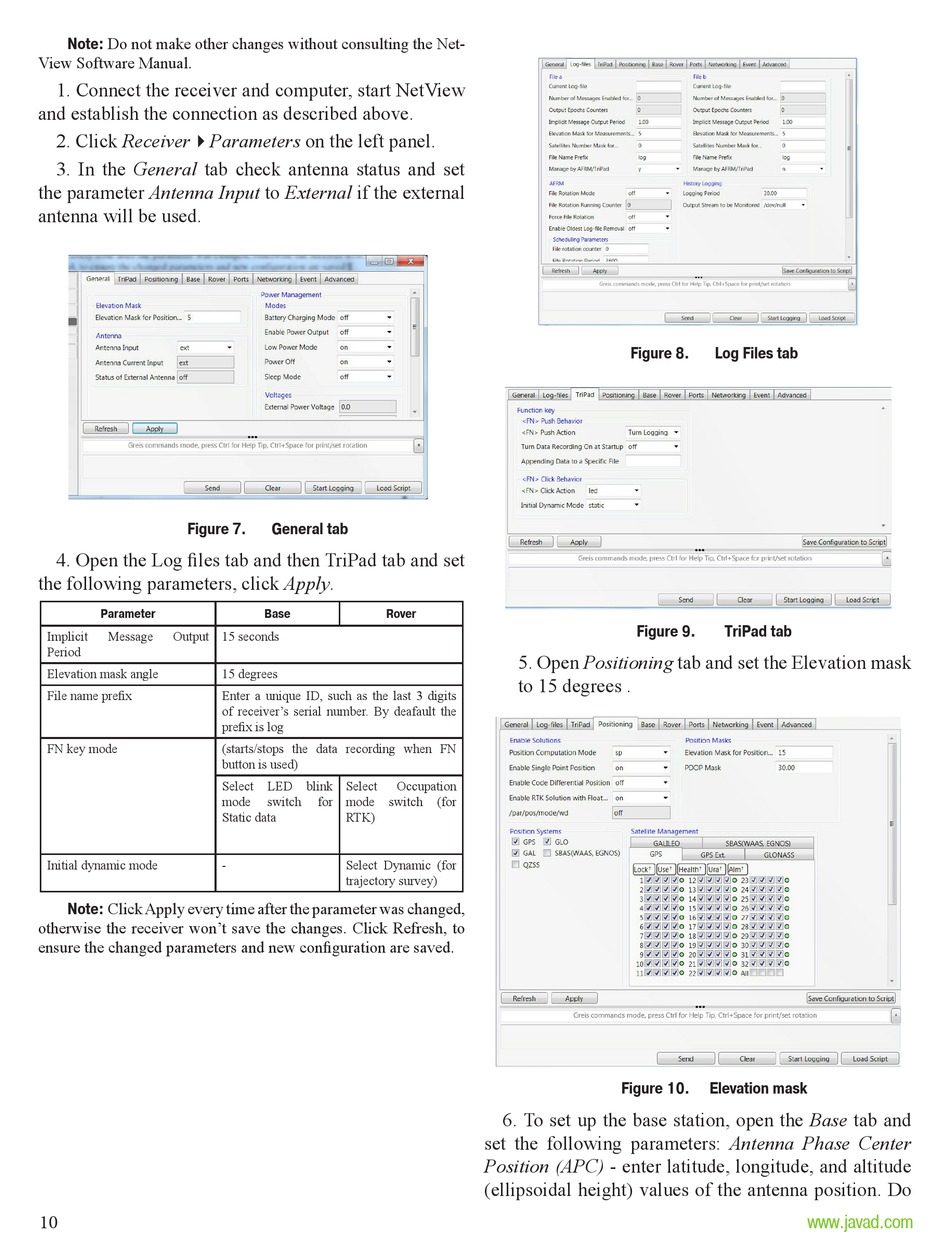

Javad DELTA-3 User Manual page 10

Note: Do not make other changes without consulting the Net-
View Software Manual.
1. Connect the receiver and computer, start NetView
and establish the connection as described above.
2. Click Receiver4Parameters on the left panel.
3. In the General tab check antenna status and set
the parameter Antenna Input to External if the external
antenna will be used.
Figure 7.
4. Open the Log files tab and then TriPad tab and set
the following parameters, click Apply.
Parameter
Implicit Message Output
Period
Elevation mask angle
File name prefix
FN key mode
Initial dynamic mode
Click Apply every time after the parameter was changed,
Note:
otherwise the receiver won't save the changes. Click Refresh, to
ensure the changed parameters and new configuration are saved.
10
General tab
Base Rover
15 seconds
15 degrees
Enter a unique ID, such as the last 3 digits
of receiver's serial number. By deafault the
prefix is log
(starts/stops the data recording when FN
button is used)
Select LED blink Select Occupation
mode switch for mode switch
Static data RTK)
- Select Dynamic (for
trajectory survey)
5. Open Positioning tab and set the Elevation mask
to 15 degrees .
(for
6. To set up the base station, open the Base tab and
set the following parameters: Antenna Phase Center
Position (APC) - enter latitude, longitude, and altitude
(ellipsoidal height) values of the antenna position. Do
Figure 8. Log Files tab
Figure 9. TriPad tab
Figure 10. Elevation mask
