advanced FLOW engineering
Instruction Manual
P/N: 79-21002L

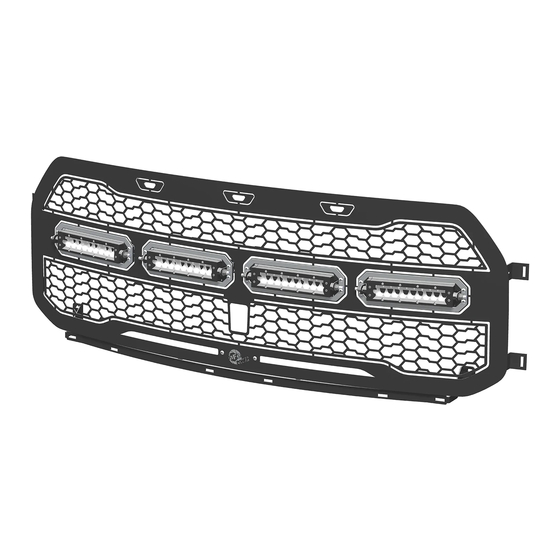

Scorpion Grille with Camera Provision
Make: Ford Model: F-150 Raptor Year: 17-19 Engine: V6 – 3.5L (tt)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scorpion 79-21002L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for aFe Power Scorpion 79-21002L

Summary of Contents for aFe Power Scorpion 79-21002L

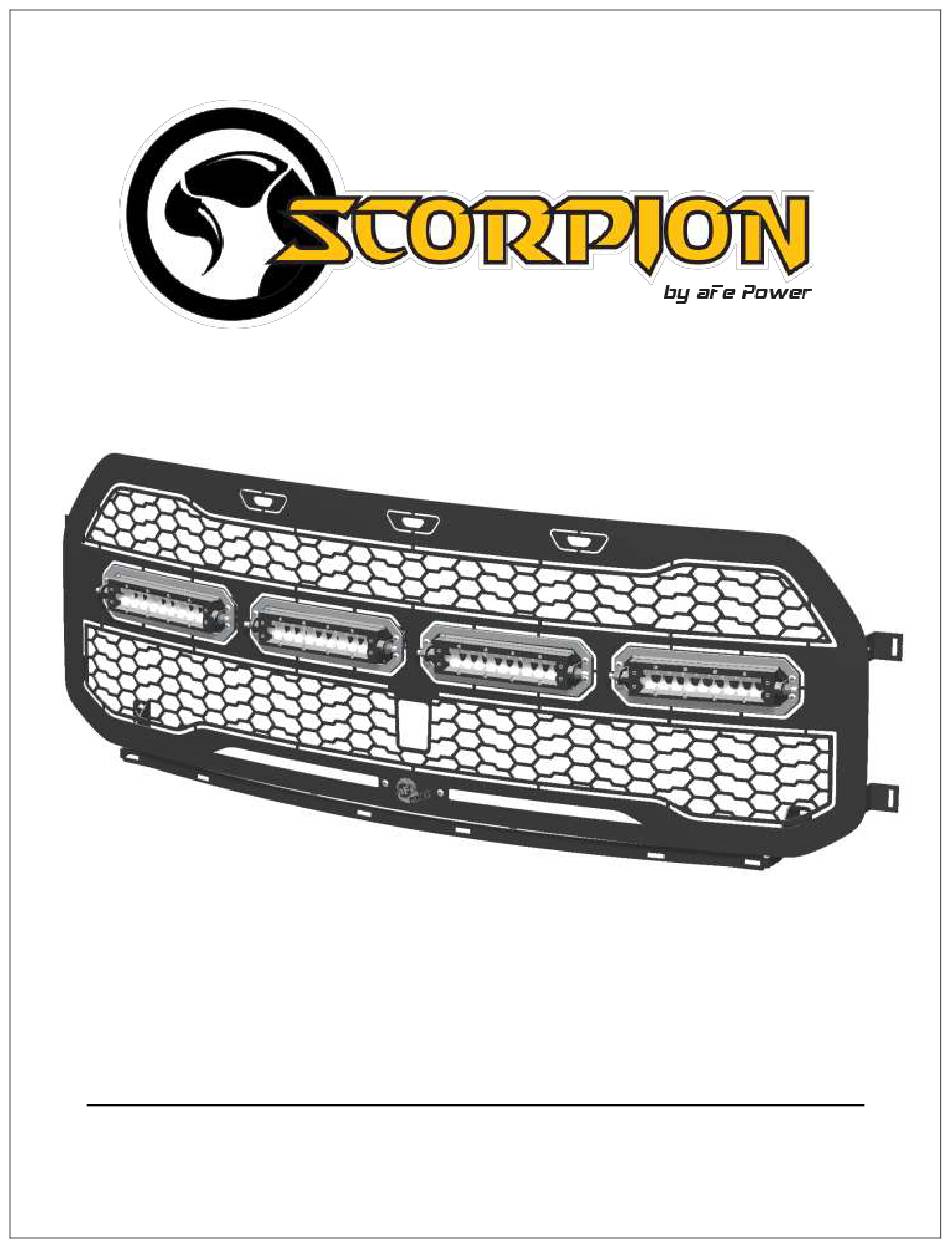

  • Page 1 advanced FLOW engineering Instruction Manual P/N: 79-21002L Scorpion Grille with Camera Provision Make: Ford Model: F-150 Raptor Year: 17-19 Engine: V6 – 3.5L (tt)
  • Page 2 • Please read the entire instruction before proceeding. • Ensure all components listed are present. • Ensure you have all necessary tools before proceeding. • Disconnect the negative battery terminal before proceeding. • If you are missing any of the components, call customer support 951 493 7100 Label Qty.
  • Page 4 Note: Before you begin, use “Painters Tape” to apply a protective guard around the work areas (fender and bumper valance). This will help protect the paint and finish of your vehicle. 1. Disconnect the negative battery terminal. 2. Locate ten (10) plastic clips on top of plastic shroud and one (1) additional on each side located at the top of the headlight body panel cover.
  • Page 5 4. The headlight body panel needs to be removed. You will need to gently pull the panel out of the clips on the lower grille and the headlight. After the clips are out, continue to pull carefully until the headlight body panel is out from behind the headlight. Pull the headlight body panel straight out of the clips on the fender.
  • Page 6 5. Remove the one (1) bolt located on each side of the grille. Save for reinstallation. 6. Located near the hood latch, disconnect the two (2) electrical connectors and the camera washer hose connection.
  • Page 7 7. Remove the four (4) bolts across the top of the grille. Save for reinstallation. 8. Remove three (3) push pins on each side of the grille. Save for reinstallation.
  • Page 8 9. Remove the grille from the truck.
  • Page 9 10. Remove the lower trim body panel from the factory grille by pulling gently. Save for reinstallation.
  • Page 10 11. Remove the seven (7) nuts that line the outside edge and the one (1) 8mm bolt that secures the active shutter assembly. 12. Remove the four (4) plastic clips located on the top lip. 13. Remove the air temperature sensor from the active shutter assembly. 14.
  • Page 11 16. Remove the wire loom from the grille that connects the running lights and the forward- facing camera. 17. Mark the three (3) running lights before removing them so you know the location (Left, Center, Right). Remove the three (3) running lights from the grille. 18.
  • Page 12 Note: To prevent scratching the aFe Scorpion Grille while preforming assembly, use a protective covering between the grille and a flat surface. 21. Remove the supplied aFe Scorpion Grille from the box and place it on a flat surface for assembly.
  • Page 13 22. Install the main lower grille bracket using four (4) of the supplied 10-32 flange nuts and tighten.
  • Page 14 23. Install six (6) of the supplied 6-32 nylon locknuts 3/8” (.375) from the grille. This will act as a stop for the light when it is installed. Make sure that the outside flat edges of the nuts are facing towards each other.
  • Page 15 24. Install the factory running lights (removed in Step 17) onto the studs. Use the six (6) remaining 6-32 nylon locknuts to secure the running lights to the aFe Scorpion Grille. Tighten the nuts.
  • Page 16 25. Install the supplied back plate aFe logo + stud using the two (2) supplied 10-32 x 1/2" button head screws (black) and two (2) supplied 10-32 flange nuts. Tighten the back plate aFe logo + stud to the aFe Scorpion Grille.
  • Page 17 Middle Studs Back plate Stud 26. On the two middle studs on the grille, install two (2) 10-32 flange nuts 15/16” from the backside face of the grille. Make sure to install them with the flange facing away from the grille.
  • Page 18 28. Install the forward-facing camera, removed in Step 18, and tighten using three (3) 10-32 flange nuts.
  • Page 19 29. Route the camera washer hose around the outside edge of the grille (on the right side). Do not attach the hose to anything yet. 30. Attach the factory wiring harness to the running lights and connect the harness to the forward-facing camera.
  • Page 20 31. Remove and discard the two (2) nuts from each of the supplied 6” single row LED lights.
  • Page 21 Note: Depending on your preferred look of the vehicle, you have the option to install the raw aluminum trim pieces or leave them off. Note: Please read the instruction below prior to installation. 32. Begin by taping one (1) of the supplied raw aluminum trim pieces on the front of the aFe Scorpion Grille using two (2) pieces of painter’s tape (one on the top and one on the bottom).
  • Page 22 34. Install the four (4) supplied cable clamps and four (4) supplied 8” cable ties to support the wires from the lights. 35. Plug the two (2) supplied Y-adapters into the light wiring harness.
  • Page 23 36. Reconnect the factory wire harness to the three (3) running lights. Run the harness down over the off-road lights wiring. 37. Secure all the wires and camera washer hose with ten (10) supplied 8” cable ties.
  • Page 24 38. Start the reassembly by reattaching the temperature sensor to the active shutter assembly.
  • Page 25 39. Lay the active grille assembly over the aFe Scorpion Grille and center. Make sure that when you are laying the active shutter grille over the aFe Scorpion Grille, the metal tabs on the top (of the aFe Scorpion Grille), go over the active shutter grille. 40.
  • Page 26 42. Before installing the aFe Scorpion Grille, install the supplied power harness. The Red wire goes on the positive battery terminal (+) and the black wire goes on the negative battery terminal (-). You will need to mount the switch inside the cab or to an available prewired switch.
  • Page 27 43. Place the grille assembly on the truck. It should hang when it is in the proper position.
  • Page 28 44. Center the grille assembly and install the four (4) factory screws removed in Step 7. Tighten to factory specifications.
  • Page 29 Supplied clip Factory clip Note: The left photo is what the stock headlight body panel clips look like. The right photo is what the headlight body panel will look like after the new clips are installed. 45. Remove two (2) factory (circled) headlight body panel retainer clips from each of the left and the right headlight body panels.
  • Page 30 47. Reinstall the three (3) push pins removed in Step 8 on each side of the grille. 48. Reinstall the factory bolts that were removed in Step 5 on each side of the grille.
  • Page 31 49. Reinstall both headlight body panels by carefully pushing them into place.
  • Page 32 50. Use two (2) supplied 1/4-20 X 3/4" screws, two (2) supplied 1/4" washers, and two (2) supplied 1/4" nylon locknuts to secure the head light body panel on both sides (one per side). Tighten all the hardware.
  • Page 33 51. Plug the power harness into the two (2) Y-harnesses on the aFe Scorpion Grille. Secure the assembled wire harness with three (3) 8” cable ties.
  • Page 34 52. Plug the camera washer hose and the two wire connections back in on the top of the grille assembly.
  • Page 35 53. At this point you want to look over your work and examine the gap alignments around all edges and in between the new aFe Scorpion Grille. Carefully close the hood for a complete visual inspection. If adjustment is needed, you can loosen the top mounts and shift side to side for even gaps.
  • Page 36 54. Reinstall the radiator shroud cover and reinstall the push pins to secure it into position. 55. Reconnect the negative battery terminal.
  • Page 37 56. Remove all the painter’s tape if any was applied. 57. Installation is now complete. WARNING...
  • Page 38 PLEASE CONSULT YOUR LOCAL AUTOMOTIVE ELECTRICAL PROFESSIONAL FOR INSTALLATION SERVICES AND ADVICE. aFe Power IS ONLY EQUIPPED TO PROVIDE BASIC TECHNICAL ASSISTANCE DUE TO THE DIVERSITY OF VEHICLES, VEHICLE OPTIONS & MODIFICATIONS AND LIGHTING. CONFIGURATION OPTIONS AVAILABLE. aFe Power products cannot be held liable due to improper component installation and / or faulty wiring.
  • Page 39 GRILLE CARE INFORMATION aFe Power Scorpion Grilles are the finest in the industry but do require normal care. Wash regularly as you would when caring for your vehicles. Never use dish soap. GLOSS BLACK FINISH aFe Power Scorpion Grilles with gloss black powder coated finish may be washed regularly as you would when caring for your vehicles finish using soap and water.
  • Page 40 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7100 x23 E-Mail: Tech@aFepower.com 9/18/2019 DK 06-81292...
