ST STM32 Quick Start Manual page 9

Important Hardware Additional Information
STM32 Nucleo with Expansion boards - Hardware Overview (5/5)

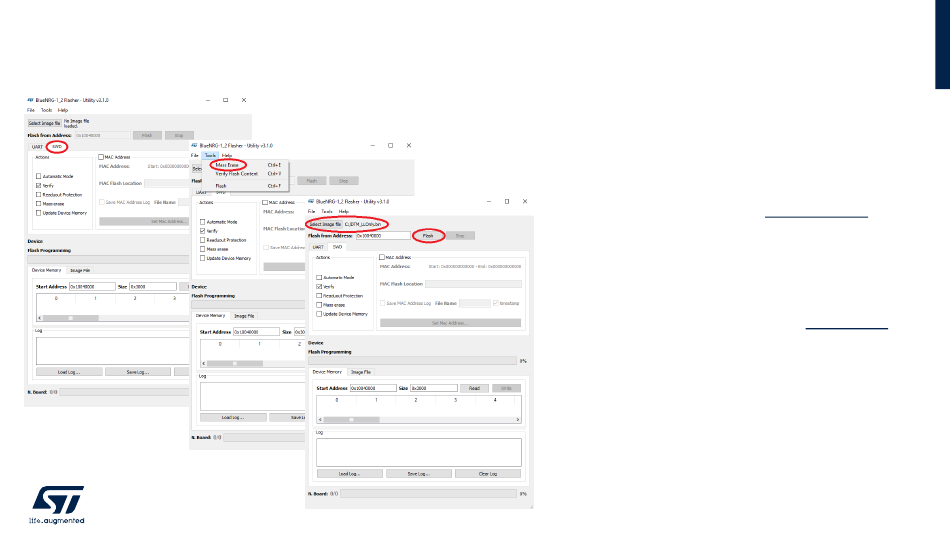

1. install the ST BlueNRG-1_2 Flasher Utility and open it,
then select the SWD tab
2. Erase the flash memory of the BlueNRG-2 chip
3. Download the Link Layer Only firmware for the BLE
module from the following link DTM_LLOnly.bin
4. Load the Link Layer Only firmware in the ST
BlueNRG-1_2 Flasher Utility and then press the
"Flash" button
5. If you need to restore the stock firmware of the BLE
module of X-NUCLEO-BNRG2A1, you can repeat the
procedure using this firmware image DTM_Full.bin
6. If you should find some issues during the update
process, you can try to repeat the procedure closing
the J15 jumper on
expansion board.
the X-NUCLEO-BNRG2A1
9
