Motion MEMS and environmental sensors expansion board
X-NUCLEO-IKS01A3 Hardware Description
• The X-NUCLEO-IKS01A3 is a motion MEMS and environmental sensor
evaluation board system.
• It is compatible with the Arduino UNO R3 connector layout, and is
designed around ST's latest sensors.
Key Product on board
• LSM6DSO MEMS 3D accelerometer (±2/±4/±8/±16 g) + 3D gyroscope
(±125/±250/±500/±1000/±2000 dps)
• LIS2DW12 MEMS 3D accelerometer (±2/±4/±8/±16 g)
• LIS2MDL MEMS 3D magnetometer (±50 gauss)
• LPS22HH MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
• HTS221: Capacitive digital relative humidity and temperature
• STTS751 Digital Temperature sensor
• DIL 24-pin Socket available for additional MEMS adapters and other sensors (UV index)
Hardware Overview (2/5)

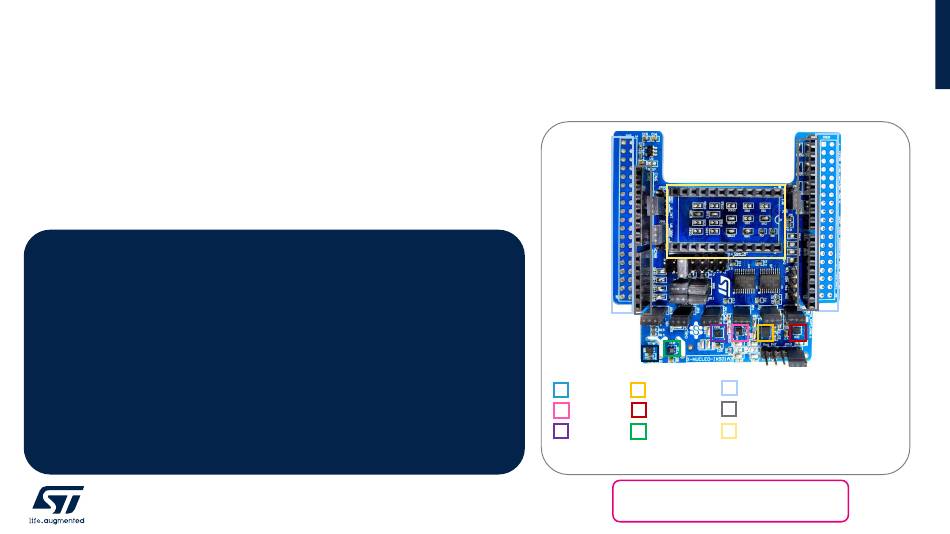

ST morpho connector**
HTS221
LSM6DSO
LIS2DW12 Arduino UNO R3 connector
LPS22HH
LIS2MDL
STTS751 DIL 24-pin
** Connector for the STM32 Nucleo Board
