ST STM32 Quick Start Manual page 5

Motion MEMS and environmental sensors expansion board
X-NUCLEO-IKS01A2 Hardware Description
• The X-NUCLEO-IKS01A2 is a motion MEMS and environmental sensor
evaluation board system.
• It is compatible with the Arduino UNO R3 connector layout, and is
designed around ST's latest sensors.
Key Product on board
• LSM6DSL MEMS 3D accelerometer (±2/±4/±8/±16 g) + 3D gyroscope
(±125/±245/±500/±1000/±2000 dps)
• LSM303AGR MEMS 3D magnetometer (±50 gauss) + MEMS 3D accelerometer
(±2/±4/±8/±16 g)
• LPS22HB MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
• HTS221 Capacitive digital relative humidity and temperature
• DIL 24-pin Socket available for additional MEMS adapters and other sensors (UV index)

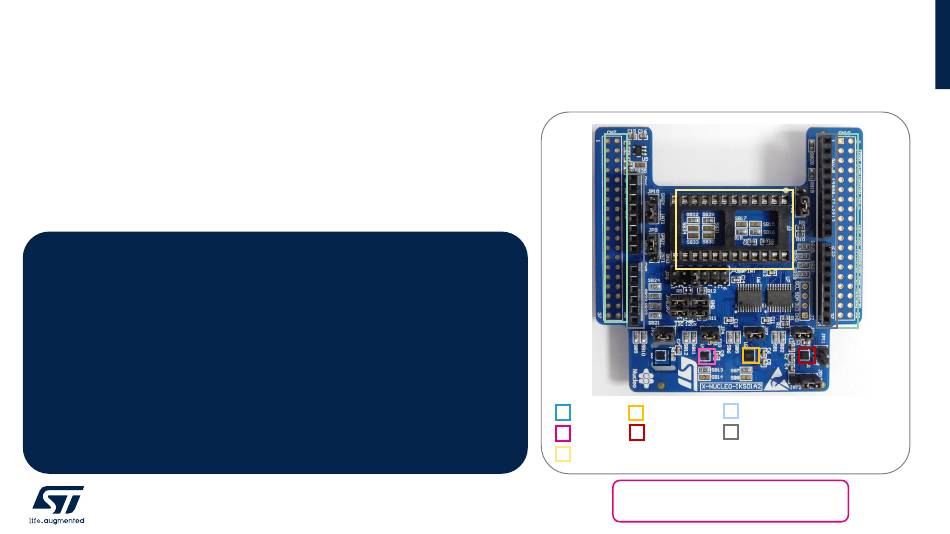

Hardware Overview (1/5)
ST morpho connector**
HTS221
LSM6DSL
LPS22HB LSM303AGR Arduino UNO R3 connector
DIL 24-pin
** Connector for the STM32 Nucleo Board
Latest info available at www.st.com
X-NUCLEO-IKS01A2
5
