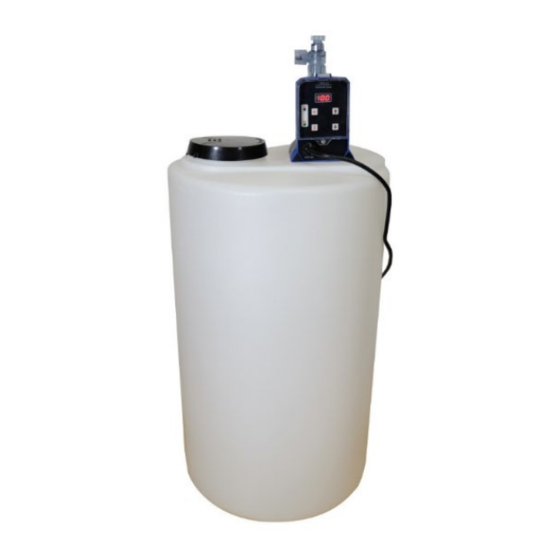

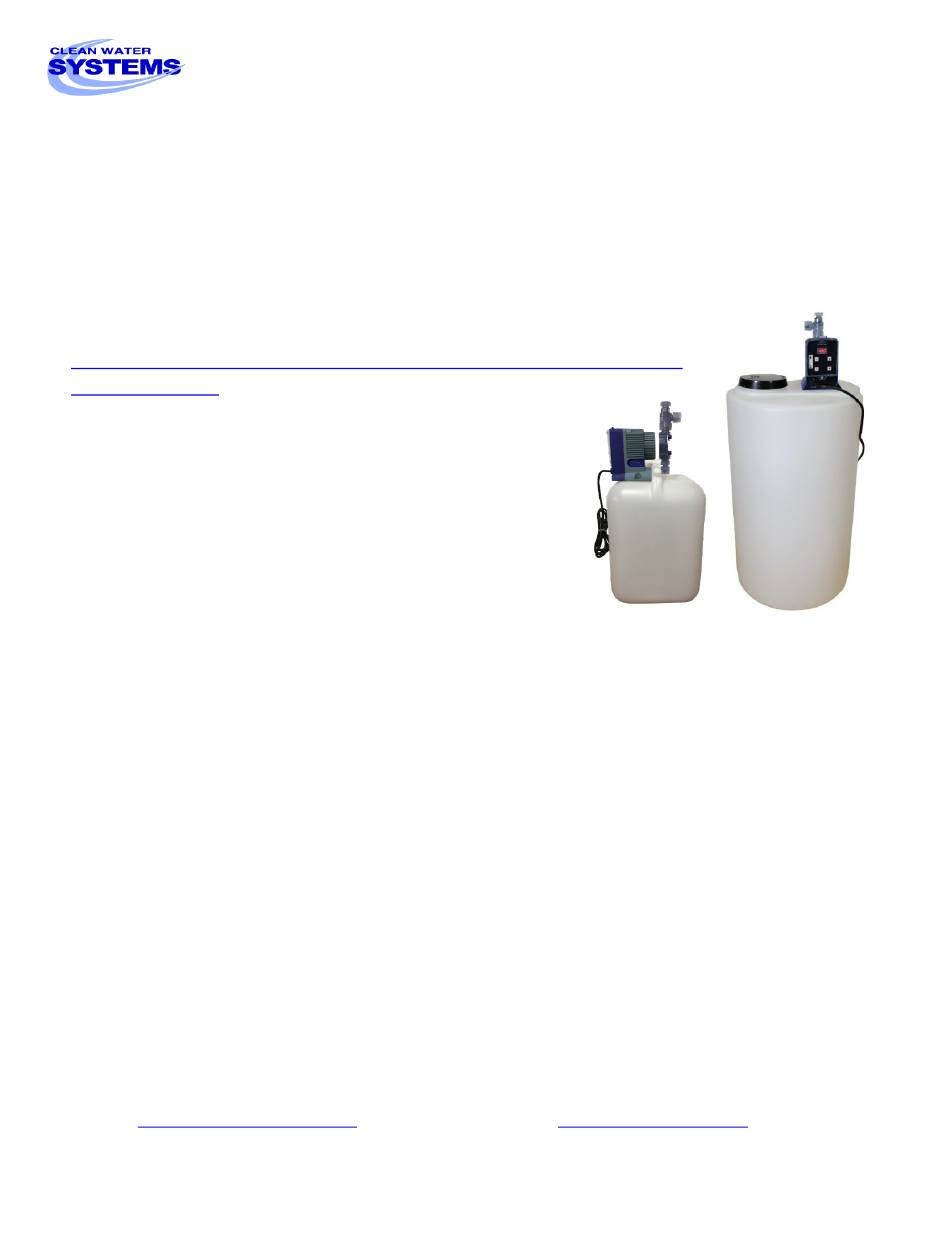

J-PRO-22 Alum
Installation & Start-Up Guide
No Alum Included in Pump Box
Want larger text? Click the link to read this online or download the PDF:
https://www.cleanwaterstore.com/technical/water-treatment-manuals/J-PRO-
22-Alum-Guide.pdf
Thank you for purchasing a Clean Water System! With proper
installation and a little routine maintenance, your system will be
providing treated water for many years.
Please review this start-up guide entirely before beginning to
install your system and follow the steps outlined for best results.
Specifications:
Pumps 0.1 to 22 gallons of solution per day
Injects into line pressures up to 110 PSI
Dual voltage. 110V or 220V, works on either voltage.
Uses maximum 22 watts of power.
Dimensions:
5-gallon model: 10" x 10" x 15". Height including pump is 26"
15-gallon model: 14.5" wide x 24", height including pump is 35".
35-gallon model: 18" wide x 33", height including pump is 44".
USE FACEMASK, RUBBER GLOVES AND EYE PROTECTION WHEN HANDLING ALUM POWDER.
NOTE ABOUT 220V INSTALLATIONS: This pump is dual voltage right out of the box and works on 110v OR 220v.
If you plan to install to run on 220v-240v, we recommend cutting off plug and either hard-wiring to 220v circuit OR
installing a 220v plug-end.
This pump is intended for indoor use, or for outdoors if protected from sunlight and freezing.
2806-A Soquel Ave Santa Cruz CA 95062 For assistance call: 1-831-462-8500
Email us:
support@cleanwaterstore.com
More information online:
www.cleanwaterstore.com
J-PRO-22 Alum Guide Rev 0021622 Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J-PRO-22 Alum and is the answer not in the manual?

Questions and answers

Summary of Contents for Clean Water Systems J-PRO-22 Alum

  • Page 1 This pump is intended for indoor use, or for outdoors if protected from sunlight and freezing. 2806-A Soquel Ave Santa Cruz CA 95062 For assistance call: 1-831-462-8500 Email us: support@cleanwaterstore.com More information online: www.cleanwaterstore.com J-PRO-22 Alum Guide Rev 0021622 Page | 1...
  • Page 2: Table Of Contents

    Priming Problems ............................15 Maintenance Tips ............................16 Need Assistance? ............................16 Spare Parts: ..............................16 J-Pro-22 Metering Pump Warranty and Returns: Your pump comes with a 1 Year Warranty from date of delivery. J-PRO-22 Alum Guide Rev 0021622 Page | 2...
  • Page 3: Pre-Installation

    If the cause of failure is determined to be from exposure to any of these environments, the pump does not qualify for replacement and will not be covered under warranty. For Returns Contact Clean Water Systems & Stores Inc. 2806-A Soquel Ave Santa Cruz, CA 95062831- 462-8500 support@cleanwaterstore.com Pre-Installation 1.
  • Page 4: Typical Installation Diagram

    Typical Installation Diagram How To Set Up Your Alum Pump To Turn On and Off Automatically J-PRO-22 Alum Guide Rev 0021622 Page | 4...
  • Page 5: Wire To Pressure Switch Option

    2. You can install a flow switch and plug the J-Pro22 into that. 3. You can cut the plug and wire direct to pressure switch. Note that the ground wire is yellow color, brown and blue are hot wires. Wire To Pressure Switch Option J-PRO-22 Alum Guide Rev 0021622 Page | 5...
  • Page 6: Use Pre-Wired Flow Switch Option

    The J-Pro-22 is a dual voltage pump. It has a 110 volt- style plug but can run on 220v or 110v. It uses a maximum of 22 watts power when running. Use Pre-Wired Flow Switch Option J-PRO-22 Alum Guide Rev 0021622 Page | 6...
  • Page 7: J-Pro-22 Installation Instructions

    J-PRO-22 Installation Instructions While you can mount the pump on a shelf above the solution tank, it is strongly advised to mount the pump directly on top J-PRO-22 Alum Guide Rev 0021622 Page | 7...
  • Page 8: Mount Pump To Solution Tank

    Use the harder/stiffer translucent tubing for connection from discharge-side (12 o’clock) to the injection check valve. Use the softer clear tubing for the foot valve to suction-side (6 o’clock) connection. J-PRO-22 Alum Guide Rev 0021622 Page | 8...
  • Page 9: Install Discharge Side Tubing

    7. Install tubing that came with your pump and connect pump to injection check valve. 8. Cut tubing to desired length with enough slack to avoid kinks. Injection check valve can be installed into PVC, copper or other piping. J-PRO-22 Alum Guide Rev 0021622 Page | 9...
  • Page 10: Install Suction Tubing From Pump To Solution Tank

    2. Do not allow weight to sit at the bottom of the tank. Connect tubing to the foot valve and put the ceramic weight on. 3. Run the tubing up through the hole and connect to the Inlet/ Suction side of pump Suction Ceramic Connector Foot J-PRO-22 Alum Guide Rev 0021622 Page | 10...
  • Page 11: Connect Tubing From Degassing Port ("Kicker Port")

    Connect Tubing from Degassing Port (“Kicker Port”) You can use the soft tubing for this run, connect tubing to the degassing port fitting, pass tubing through the hole you drilled down into the tank 4-6”. J-PRO-22 Alum Guide Rev 0021622 Page | 11...
  • Page 12: Prime & Start The Pump

    Down arrows are to adjust the Speed of the pump, from 0-100. The Set button and the Auto light indicator have no function on this model, they are for use with a flow meter. J-PRO-22 Alum Guide Rev 0021622 Page | 12...
  • Page 13: Solution Strength And Settings For Alum

    After injection, a Sediment / Turbidity Backwash Filter is recommended. As a final stage, a Nano-Ceram filter system is recommended. This removes fine particles and turbidity as well as filter coliform bacteria if present. J-PRO-22 Alum Guide Rev 0021622 Page | 13...
  • Page 14: Formula For Calculating Solution Strength And Settings

    Therefore, in this scenario set the JPRO-22 to at 30% speed. If your well flow rate is much lower than 12 gallons per minute, you can use a more diluted alum solution. If your flow rate is higher you can turn up the speed of the pump. J-PRO-22 Alum Guide Rev 0021622 Page | 14...
  • Page 15: Troubleshooting And Maintenance

    100 psi. J-PRO-22 Alum Guide Rev 0021622 Page | 15...
  • Page 16: Maintenance Tips

    These installation parts are included with initial order, but you may wish to have spares on hand, or replace the injection check valve, foot valve or diaphragm later. P7007540 Diaphragm Replacement P7007550 Injection Check P7007570 Valve Foot Valve J-PRO-22 Alum Guide Rev 0021622 Page | 16...
