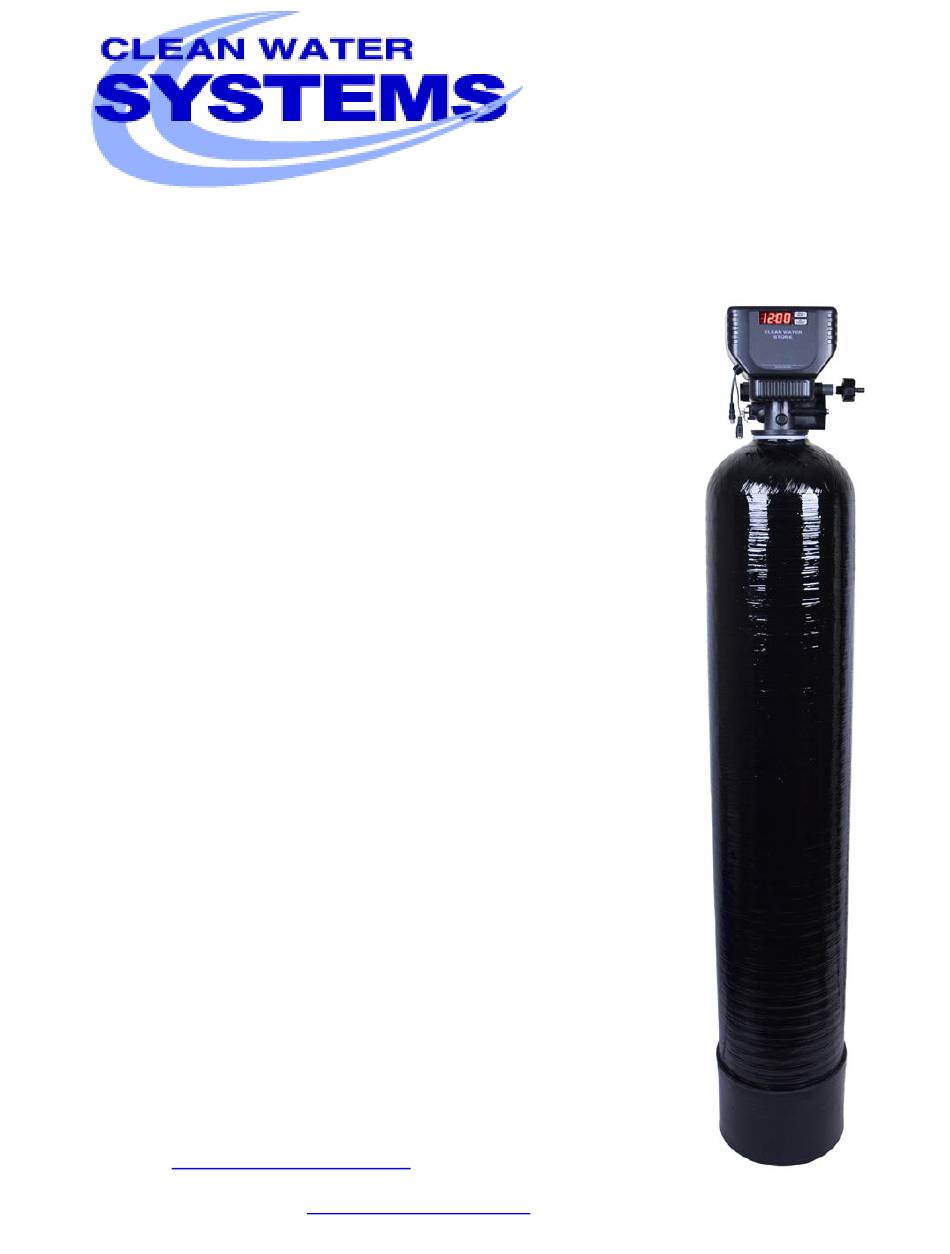

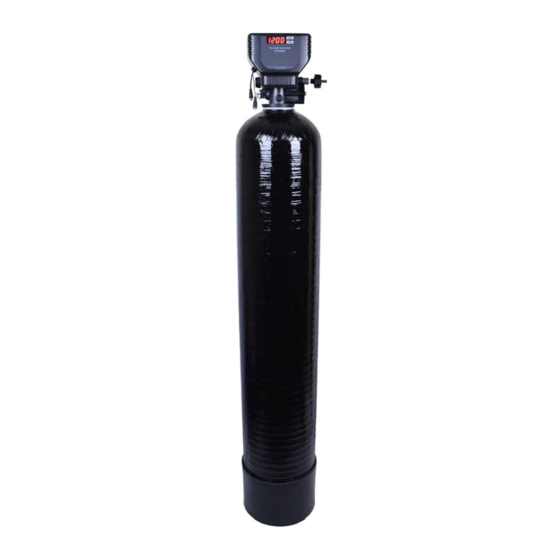

Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide
Air Charger Sulfur Filter 5900e-AIR Installation &
Start-Up Guide
Thank you for purchasing a Clean Water System!
With proper installation and a little routine maintenance
your system will be providing sulfur odor-free water for many years.
Please review this start-up guide entirely before beginning
to install your system and follow the steps outlined for best results.
MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO
AVOID BREATHING DUST.
2806-A Soquel Ave Santa Cruz CA 95062
For assistance call: 1-831-462-8500
Email us:
office@cleanwaterstore.com
More information online:
www.cleanwaterstore.com
Clean Water Made Easy
www.cleanwaterstore.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clean Water Systems 5900e-AIR
Summary of Contents for Clean Water Systems 5900e-AIR
- Page 1 Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Clean Water Made Easy www.cleanwaterstore.com Air Charger Sulfur Filter 5900e-AIR Installation & Start-Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing sulfur odor-free water for many years.
-
Page 2: Table Of Contents
Normal Operation: ..........................17 Battery back-up: ............................17 How To Start An Extra Regeneration Cycle: .................... 17 Troubleshooting the 5900 Air Charger Sulfur Filter 5900e-AIR Filter: ............18 Backwash Flow Rate ..........................18 Error Codes: ............................18 What To Do If Your Filter Tank Does Not Sit Level On the Floor: ............18... -
Page 3: Packing List
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Packing List: 1.5 Cubic Foot Size System Air Charger Sulfur Filter 5900e-AIR control valve w/ bypass assembly and pipe connector kit (1” or 3/4”) 10” x 54” standard filter tank with distributor tube Blue media funnel for adding Air Charger Sulfur Filter media 1.5 cubic feet of Jacobi Catalytic Carbon media... -
Page 4: How Your Air Charger Sulfur Filter 5900E-Air Works
How Your Air Charger Sulfur Filter 5900e-AIR Works: The Air Charger Sulfur Filter 5900e-AIR, when properly applied, is an efficient and cost effective system for the removal of sulfur odors. The Air Charger Sulfur Filter 5900e-AIR control valve maintains a compressed “air pocket”... -
Page 5: Pre-Installation
Make sure to connect the IN pipe to the Air Charger Sulfur Filter 5900e-AIR inlet and the OUT pipe to the outlet (see Fig 3). As you face the Air Charger Sulfur Filter 5900e-AIR control from the front, the water enters on the right and exits on the left. -
Page 6: Installation Of Your System Into Copper Or Metal Piping Systems
We recommend PEX or PVC pipe up to the Air Charger Sulfur Filter 5900e-AIR and then copper after it, if you have copper plumbing. -
Page 7: Fig 2 - Typical Air Charger Sulfur Filter 5900-Air
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Fig 2 - Typical Air Charger Sulfur Filter 5900-AIR piping installation with ball valve and hose bib after the filter Page 7 www.cleanwaterstore.com Rev 082616... -
Page 8: Fig 3: 5900 From The Rear
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Fig 3: 5900 from the rear showing the inlet (left) and outlet (right) end- connector fittings 3/4” or 1” NPT in Noryl plastic. Brass end-connectors are also available for connecting to copper tubing. -
Page 9: Assembly And Installation Instructions
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Assembly and Installation Instructions Wrap the top of distributor tube with blue painter’s masking tape or black electrical tape so that no gravel or media will go down the distributor tube when adding the media. You do not want to use duct tape, as the stickiness of that tape may cause the distribution tube to come up when you remove the tape. -
Page 10: Bypass Valve Assembly Instructions
Sulfur 5900e-AIR threads into the tanks. Also note that when installing the Sulfur 5900e-AIR valve on to the top of the filter tank, do not over-tighten. Tighten by hand; there is no need for a pipe wrench or other wrench. - Page 11 It is OK to run the drain line up and over the Sulfur 5900e-AIR valve up to 4 feet above the top of the tank. If the drain line will be more than 20 feet, use larger diameter tubing such as ¾”...
-
Page 12: Fig 7: 5900 Bypass And Service Mode Positions
6. Next, you will need to program the system to work as a Sulfur 5900e-AIR Filter. There are a few settings that must be changed before the system can be put into service. Plug in the control valve and continue on to the next page to begin the programming instructions. -
Page 13: Programming Your Valve
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide 5900 Air Charger Sulfur Filter 5900e-AIR up to 4 feet above the top of the tank. If the drain line will be more than 20 feet, use larger diameter tubing such as ¾” or 1”. Note that it is desirable to be able to run the drain line into a bucket in order to test the backwash flow rate in the future. -
Page 14: Master Programming Mode
Note: If no buttons are pressed for 60 seconds or longer the menu will automatically be exited. Next you will need to set the Master Programming to be used as an Air Charger Sulfur Filter 5900e-AIR filter, continue on to the Master Programming to finish the programming instructions. Master Programming Mode: Entering Master Programming Mode -To enter Master Programming Mode press and hold both buttons for 5 seconds. - Page 15 Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Not Programmable. This is the Air Release cycle. [ Not Displayed ] 10 minutes. This is the Backwash cycle. [ 2 - 10 ] 0 minutes. This is the Brine Draw cycle, not used on your valve. [ 3 - 0 ] 12 minutes.
-
Page 16: Initial Backwash
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Initial Backwash: MAKE SURE BOTH RED HANDLES ON BYPASS ARE CLOSED! 1 If days remaining is not already at 1 press and hold the Set/Change button. Now, press and hold the set change button again, until the valve begins the backwash cycle and the display reads 1, with the dashes flashing. -
Page 17: Maintenance
Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide Maintenance: Normal Operation: -Normal display alternates between time of day and days until regeneration. -Days remaining until the next regeneration will count down from the regeneration day override value to 1 day remaining. -
Page 18: Troubleshooting The 5900 Air Charger Sulfur Filter 5900E-Air Filter
One problem that may occur is if you do not have enough backwash flow rate to properly clean the Air Charger Sulfur Filter 5900e-AIR filter. You can verify the backwash flow rate by running the drain line into a bucket and timing it when the 5900 is in backwash. Confirm your backwash flow rate according to your tank size below: 1.5 CF... - Page 19 Air Charger Sulfur Filter 5900e-AIR Installation & Startup Guide 3) The valve will advance to the BW (backwash) position, and start counting down. Press the Regen button again, and wait for the valve to advance and stop at the Rapid Rinse (RR) position.
