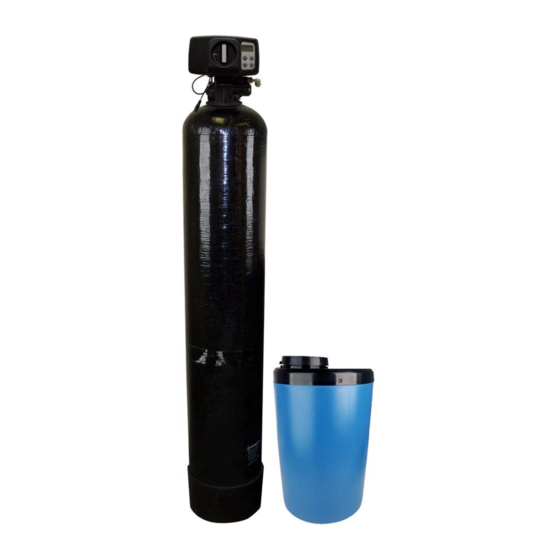

Pro‐OX Iron Filter 1650 with Chlorine
Side Tank Installa on & Start‐Up Guide
Thank you for purchasing a Clean Water System! With proper installa on
and a li le rou ne maintenance your system will be providing iron free wa-
ter for many years.
Please review this start-up guide en rely before beginning to install your
system, and follow the steps outlined for best results.
PRO-OX MEDIA CONTAINS DUST.
USE PAPER MASK AND VENTILATE AREA TO AVOID BREATHING DUST
Ques ons?
Call us toll-free: 1-888-600-5426 or 1-831-462-8500
Email us:
support@cleanwaterstore.com
See more informa on on our website:
DURING INSTALLATION
www.cleanwaterstore.com/resources
Clean Water Made Easy
h p://www.cleanwaterstore.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clean Water Systems Pro-OX Iron Filter 1650 with Chlorine
Summary of Contents for Clean Water Systems Pro-OX Iron Filter 1650 with Chlorine
- Page 1 Clean Water Made Easy h p://www.cleanwaterstore.com Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Start‐Up Guide Thank you for purchasing a Clean Water System! With proper installa on and a li le rou ne maintenance your system will be providing iron free wa- ter for many years.
-
Page 2: Table Of Contents
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Table of Contents Packing List ..............................3 Pre-Installa on ............................. 4 Best Prac ces for Piping & Drain Installa on ....................4 How Your Iron Filter Works ......................... 5 Assembly and Installa on Instruc ons ...................... -
Page 3: Packing List
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Packing List 0.75 Cubic Foot Size System Quan ty (1): CWS 165 control valve w/ bypass assembly and pipe connector kit (1” or 3/4”) Quan ty (1): 8” x 44” standard filter tank with distributor tube Blue media funnel for adding Pro-OX media 12 lbs. -
Page 4: Pre-Installa On
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Pre‐Installa on 1. Review your packing list and make sure you have received all the parts before beginning installa on. 2. If you are going to turn off the water to your house and you have an electric water heater, shut off the power to the water heater before beginning installa on in case the water heater is accidentally drained. -
Page 5: How Your Iron Filter Works
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide 7. The drain line tubing (not supplied) is connected to a drain from the drain outlet using flexible 1/2” ID tubing. Note that the drain can run up above the 165 control valve and into a drain—it does not have to drain down, as the filter backwashes under line pressure from your well pump. - Page 6 Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Fig. 2—Typical Pro‐OX 1650 iron filter piping installa on with ball valve and hose bib a er filter www.cleanwaterstore.com Rev 080814 Page 6...
- Page 7 Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Fig. 3—Canature 165 valve from the rear showing the inlet (le ) and outlet (right) end‐connector fi ngs (1” or 1‐1/4” NPT in Noryl plas c). Brass end‐connectors are also available for connec ng to copper tub‐ ing.
-
Page 8: Assembly And Installa On Instruc Ons
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Assembly and Installa on Instruc ons 1. By hand, unscrew the en re Canature 165 control valve from top of tank if it was shipped screwed on. Place distributor tube in tank if not already inside. - Page 9 Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Fig. 5—Canature 165 bypass and pipe connectors 9. Lubricate the bypass valve O-rings with some vegetable oil or silicone grease and connect the bypass assembly to the control valve by sliding the bypass valve firmly into its body. 10.
- Page 10 Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Fig. 6—Pro‐OX 1650 Chlorine Side Tank Installa on × 14. Insert 3/8” diameter tubing into the chlorine side tank connec on. Simply push the tubing into the fi...
-
Page 11: 17. Programming
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide 17. PROGRAMMING: a. First, press the menu bu on labeled “ ” once. If it says “SCREEN LOCKED,” you may have to press and hold the upper le bu on labeled “ “ about 3 seconds un l a beep sounds to unlock the display screen. - Page 12 Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide i. Step 7: BRINE—this stands for Brine Draw. During this cycle more chlorine bleach from your chlorine tank will be sucked into the filter tank. Set to 60 MIN, for a 60 minute brine draw cy- cle.
-
Page 13: Maintenance
Pro‐OX Iron Filter 1650 with Chlorine Side Tank Installa on & Startup Guide Maintenance Add 1 cup of Clorox or other non-perfumed bleach to the chlorine side tank 1 to 4 mes a month. If there is sulfur or high levels of manganese, we recommend once a week. If there is no sulfur odor, then add 1 cup of Clorox to the chlorine side tank once a month.
