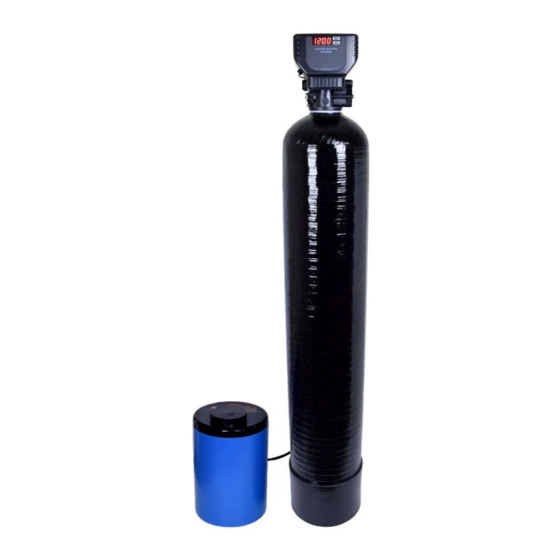

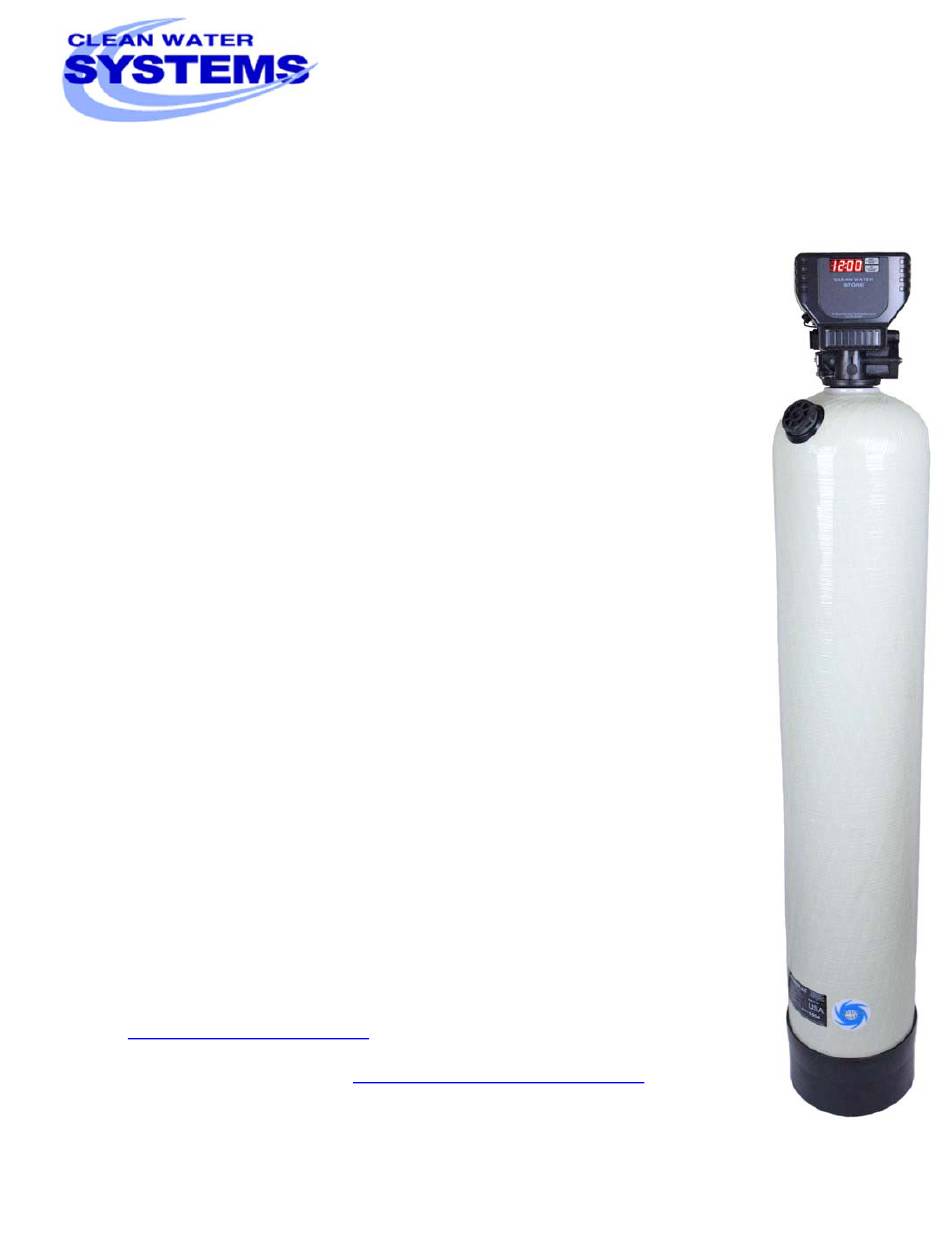

5900e Neutralizer Installation & Start‐Up Guide
Thank you for purchasing a Clean Water System! With proper installation and a little
routine maintenance your system will be providing neutral pH water for many years.
Please review this start‐up guide entirely before beginning to install your system, and
follow the steps outlined for best results.
CALCITE MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO AVOID
BREATHING DUST.
Questions?
Call us toll‐free: 1‐888‐600‐5426 or 1‐831‐462‐8500
Email us: support@cleanwaterstore.com
See more information on our website: www.cleanwaterstore.com/resources
