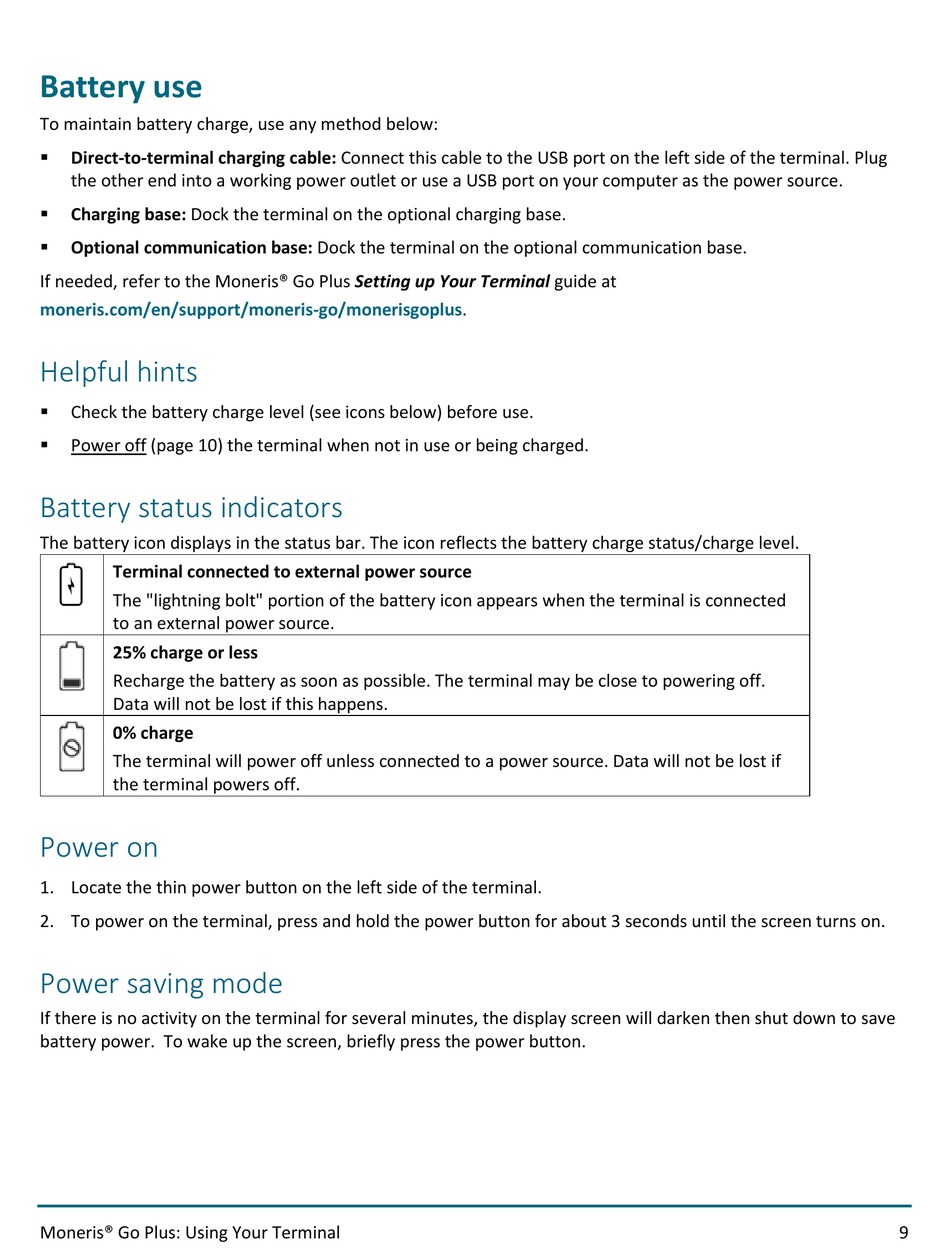

Battery Use; Helpful Hints; Battery Status Indicators; Power On - Moneris Go Plus Manual

Battery use

To maintain battery charge, use any method below:
Direct-to-terminal charging cable: Connect this cable to the USB port on the left side of the terminal. Plug

the other end into a working power outlet or use a USB port on your computer as the power source.
Charging base: Dock the terminal on the optional charging base.

Optional communication base: Dock the terminal on the optional communication base.

If needed, refer to the Moneris® Go Plus Setting up Your Terminal guide at
moneris.com/en/support/moneris-go/monerisgoplus.

Helpful hints

Check the battery charge level (see icons below) before use.

Power off (page 10) the terminal when not in use or being charged.


Battery status indicators

The battery icon displays in the status bar. The icon reflects the battery charge status/charge level.
Terminal connected to external power source
The "lightning bolt" portion of the battery icon appears when the terminal is connected
to an external power source.
25% charge or less
Recharge the battery as soon as possible. The terminal may be close to powering off.
Data will not be lost if this happens.
0% charge
The terminal will power off unless connected to a power source. Data will not be lost if
the terminal powers off.

Power on

1. Locate the thin power button on the left side of the terminal.
2. To power on the terminal, press and hold the power button for about 3 seconds until the screen turns on.

Power saving mode

If there is no activity on the terminal for several minutes, the display screen will darken then shut down to save
battery power. To wake up the screen, briefly press the power button.
Moneris® Go Plus: Using Your Terminal 9
