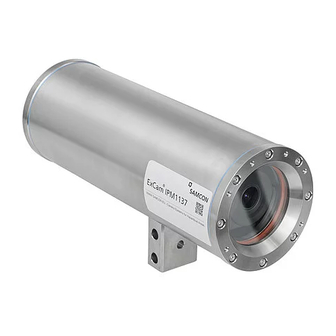

Samcon RoughCam IPM1137 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
RoughCam
IPM1137
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoughCam IPM1137 and is the answer not in the manual?

Questions and answers

Related Manuals for Samcon RoughCam IPM1137

Summary of Contents for Samcon RoughCam IPM1137

  • Page 1 ® RoughCam IPM1137 User Manual...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................5 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 Cables and glands ....................6 2.3.1 Connection cable for devices with flipConnect ................6 2.3.2 Connection cable (SKD01-T/ASKD02-T) .................. 7 2.3.3 Cable glands PoE and protection hose ..................
  • Page 3 Figure 6-1 Removing the weather protection roof ............22 Figure 6-2 Wiper in center position .................. 23 Figure 6-3 Opening the RoughCam IPM1137 (similar illustration) ........23 Figure 7-1 Axis IP Utility ....................27 Figure 7-2 User interface to operate the wiper ..............27 Figure 7-3 Turning the wiper on ..................

  • Page 4: Introduction

    Introduction The RoughCam IPM1137 is a cost-effective megapixel network camera for use in hazard- ous areas. The camera offers 5 MP resolution (2592 x 1944),a powerful remote zoom focus lens and a Machine Learning Processing Unit (MLPU). The RoughCam series can be used for a wide range of industrial applications. The camera system is ideal for the toughest industrial conditions, both indoor and outdoor areas.

  • Page 5: Technical Data

    Explanations: RoughCam IPM1137 Functional camera description of the RoughCam Series (technical data/ specification of the individual camera module) T10 = SAMCON Production- Type 10 (cameras for safe areas) VA2.X.KX.BOR = T11 housing (stainless steel 1.4404) with large diameter Ø =113mm) VA2.1.K1.BOR =...

  • Page 6: Electrical Parameters Of The Camera

    Devices equipped with flipConnect are supplied without a cable tail or a cable gland, only with non-explosion-proof blanking plugs (nylon PA3200, red) for fitting a suitable explosion- proof cable kit. Quicklink for suitable cables and cable glands: https://www.samcon.eu/fileadmin/documents/de/60-Montage%26Installation/flipConnect-Compatibility.pdf Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 6 of 32...

  • Page 7: Connection Cable (Skd01-T/Askd02-T)

    10 x D after relocation Data line: 4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Figure 2-1 Sectional view of ASKD02-T Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 7 of 32...

  • Page 8: Cable Glands Poe And Protection Hose

    2.3.3 Cable glands PoE and protection hose System cable SKD01-T  gland Capri ADE1F2 Cap No.5 (7-12mm) System cable ASKD02-T  gland Capri ADE4F Cap No.6 Documentation ADE4F, Declaration of Conformity, Instruction Manual, Datasheet Video-technical characteristics We use the AXIS M1137 MkII Box Camera in our enclosure. For details, please refer to ®...

  • Page 9: Installation

    Please pay attention to the national and local regulations for mounting heavy loads. In case of doubt, take appropriate security measures. Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/roughcam/roughcam-ipm1137/ Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 9 of 32...
  • Page 10 Optional mounting accessories WALL MOUNT BRACKET WMB-VA2.1/2.2 Wall bracket Wall bracket for devices of T10-VA2.1 series WMB-... Suitable for hanging the camera on walls. Material: stainless steel 1.4404 Load bearing: 25 kg Dimensions: 80 x 100 x 275 mm WALL MOUNT BRACKET WMB-VA2.3 Wall bracket Wall bracket for devices of T10-VA2.3 series WMB-...

  • Page 11: Electrical Connection

    The user is NOT authorised to do electrical connection procedures inside the enclosure. Potential equalization Figure 5-1 RoughCam IPM1137 potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw terminal is provided at the rear side, at the bottom (right) (see Figure 5-1).

  • Page 12: Connection Work At The Device And Fuses

    We show the procedures of electrical connection via flipConnect in the following video tu- torial: “Plug & Play Cable Connection via flipConnect” https://go.samcon.eu/flipconnect Figure 5-2 Connection via flipConnect Unscrew the red blind plug (with integrated auxiliary tool) from the housing and keep it save.
  • Page 13 Choose a suitable cable and cable gland (e.g. the provided). Put the gland over the ca- ble. Caution: the selected plug must be of the same length or shorter than the supplied one. Follow the respective instructions of the components. Plug in the RJ45 plug with the cable pigtail into the socket until the lock engages.
  • Page 14 Push the cable down. Fasten the cable gland’s outer ring. Use Loctite and refer to the operating instructions of the selected gland in order to observe the appropriate fastening torques. Done. Attention! Use appropriate RJ45 plug! Pay attention to shielding, cross-section and outer diameter of the cable! Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 14 of 32...

  • Page 15: Connection Work At The Device Without Flipconnect

    - 12.95 W"), or Class 6 (models with heater), or Class 5 (models with wiper). Make sure there is sufficient power on the switch (power sourcing equipment) depending on the model variant used.The data transfer of the RoughCam IPM1137 series is done via a 100 Mbit/s Ethernet connection (100BASE-TX).
  • Page 16 Figure 5-5. RoughCam IPM1137 T10-VA2.X.KX.BORX-X.H-005.N-P Video Tutorial: Please view our video tutorial : “SAMCON 01 Wiring the cable SKDP03-T to the junction box” https://go.samcon.eu/v01 Figure 5-6 Video Tutorial ExTB-3 Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 16 of 32...
  • Page 17 The pin assignment of the SKD01-T is executed in accordance with the standard EIA/TIA- 568B for 100BaseTX and 24VDC, as follows: Camera Colour Terminal Cross-sec- Comment SKD01-T tional sur- (T568B) (IEC60757) face WH / OG 0.32 mm Solid conductor 0.32 mm Solid conductor WH / GN 0.32 mm...
  • Page 18 SKD01-T SKD01-T RoughCam IPM1137 housing Figure 5-7 Sample circuit of terminal box Figure 5-8 Photo of the wired terminal box Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 18 of 32...

  • Page 19: Fusing

    Bring the twisted pair composite up to about 10 mm close to the termi- nals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. 5.2.3 Fusing PoE power supply requires no fuses.

  • Page 20: Appropriate Cables & Cable Entries

    5.2.5 Plug assignments (RJ45) The data transfer of the RoughCam IPM1137 uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE).

  • Page 21: Tests Prior To Switching On Voltage

    Figure 5-9 Plug assignment, RJ45 5.2.6 Tests prior to switching on voltage Attention! Prior to starting the device, perform all tests as indicated by the national regulations. Furthermore, check the correct function and installation of the device in accordance with this User Manual and other applicable regulations.

  • Page 22: Working Inside The Housings

    Opening the camera housing If the RoughCam IPM1137 is equipped with a weather protection roof this has to be re- moved prior to starting your work! To do so, loosen the 4x12mm button head screws M4*0.7 at the front and rear sides of the bracket holders (Figure 6-1).
  • Page 23 Figure 6-2 Wiper in center position To open the stainless-steel housing (T11 VA2.X.x.x) of RoughCam IPM1137, loosen the eight cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange (see Figure 6-2). Caution: do not touch the screw threads with your skin or clothes! On the threads, there is LOC- TITE®...

  • Page 24: Removing / Inserting A Sd Memory Card

    Removing / inserting a SD memory card Note: The RoughCam IPM1137 has a slot for a micro SDHC memory card (card not included). Saved video files can be played and deleted via the web interface. They are also available in a download list. Moreover, the videos available in the memory card can also be accessed via FTP server in the network.

  • Page 25: Closing The Housing

    Closing the housing For closing the housing, proceed in reverse order as when opening. Use exclusively origi- nal screws included in the supply. The cable and power-supply flange is fixed by 8 cylinder-head screws M4*0.7 (ISO metric right-turning) with 12 mm thread length (DIN 912/ ISO 4762, grade 6g). Materials of bolted connections are identical to the stainless steel housing (standard material no.

  • Page 26: Network Access And Visualization

    Assigning the IP address The RoughCam IPM1137 is intended for use in an Ethernet network and requires an IP address to access and control it. In the most today’s networks, a DHCP server is integrated. This server automatically assigns an IP address.

  • Page 27: Password/ Identification

    How to start the wiper The RoughCam IPM1137 is equipped with a wiper. The wiper can be started via a button in the lower right corner of the web interface (see Figure 7-2). Figure 7-2 User interface to operate the wiper...
  • Page 28 The start button for the wiper can be activated or deactivated. Figure 7-3 Turning the wiper on Intermittent wiper controls can be configured via CGI command by the video management system. If you have any questions, please write to support@samcon.eu. Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 28 of 32...

  • Page 29: Maintenance / Modification

    Repair and correction Repairs may only be carried out with original parts of SAMCON Prozessleittechnik GmbH. In case of doubt, send the part in question back to SAMCON Prozessleittechnik GmbH. Rebuilding of or alterations to the devices are not permitted.

  • Page 30: Drawings, 3D Models, Certificates And Further Documentation

    Drawings, 3D models, certificates and further documentation All drawings, 3D models, certificates and other information are available in the download area of the product page on our website: https://www.samcon.eu/en/products/roughcam/roughcam-ipm1137/ If you wish additional technical information, please contact us at: support@samcon.eu...

  • Page 31: Notizen

    Notizen Doc.-ID: 241113-PT10BA-SHe-RoughCam IPM1137_en_rev.00.docx, Page 31 of 32...
  • Page 32 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
