Summary of Contents for Samcon ExCam niteZoom

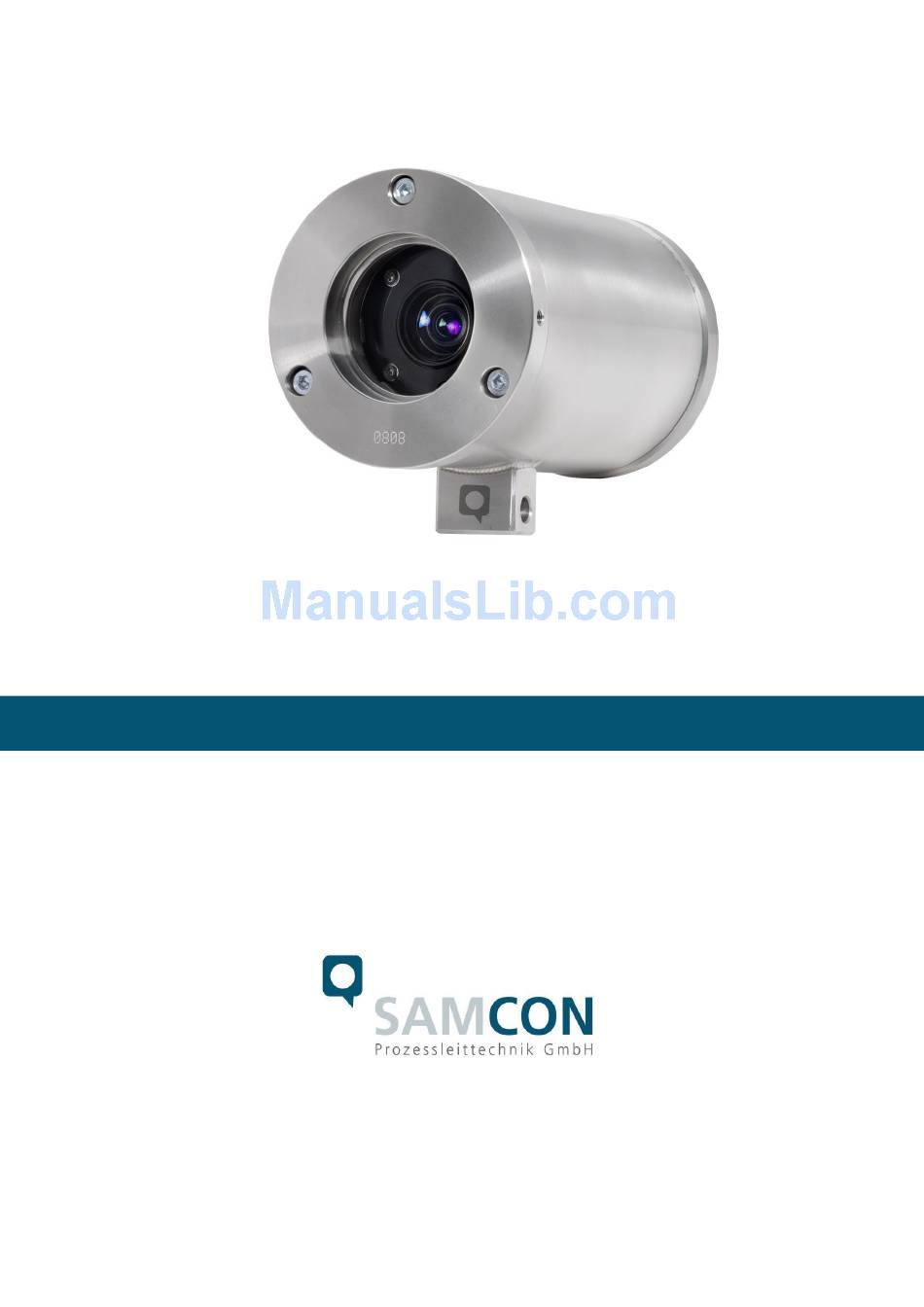

  • Page 1 ® niteZoom ExCam User manual...
  • Page 2: Table Of Contents

    Content Document overview ....................4 Technical Data ......................5 Parameters of the explosion protection ............... 5 Electrical parameters ................... 5 System cable SKAxx ................... 5 Mechanical parameters ..................6 Temperature range ....................6 Sensor ......................... 6 Lens ........................7 Electronical functions ..................7 Safety guidelines ......................
  • Page 3 Figure 5.4 ExCam niteZoom – T03-VA-B-XXX-P-N ............12 Figure 5.5 ExCam niteZoom – T03-VA-B-XXX-P-L ............12 Figure 5.6 Setting the Baud-transmission rate..............15 Figure 5.7 FCB Control Panel of the ExCam niteZoom ........... 16 Figure 5.8 Control and visualization via a video server ........... 16 ®...
  • Page 4: Document Overview

    - User Manual - Datasheet - Datasheet ExCam miniZoom: ExCam miniZoom: - User Manual - User Manual - Datasheet - Datasheet ExCam niteZoom: ExCam niteZoom: - User Manual - User Manual - Datasheet - Datasheet ExCam IP: ExCam IP: - User Manual...
  • Page 5: Technical Data

    Technical Data Parameters of the explosion protection Identification marks according to Directive 94/9/EG: II 2G (zone 1 and 2) II 2D (zone 21 and 22) Explosion protection (gas): Ex d IIC T6 Gb or Ex d IIB T6 Gb Explosion protection (dust): Ex t IIIC T80°C Db IP67 EC-type examination: TÜV 09 ATEX 7697 X...
  • Page 6: Mechanical Parameters

    Mechanical parameters Housing material: Stainless steel 1.4301 (AISI 304) and Stainless steel 1.4305 (AISI 303) Optional: Stainless steel 1.4401 (AISI 316) or Stainless steel 1.4404 (AISI 316L) Glass material: Borosilicate Protection level: IP 67 (IEC / EN 60529) Weight T03-VA: With K1 flange: ca.
  • Page 7: Lens

    Lens AF-Zoom lens: 10 x optical / 4 x digital Focal distance (f): 5.1 mm to 51.0 mm Angle of view: 52° (wide) to 5.4° (tele) Aperture: F1,8 to F2,1 Minimal illumination: 0.0004 lux (1/4 s, 1/3 s mode & ICR on) Recommended illumination: 100 to 100.000 lux Minimal object distance:...
  • Page 8: Safety Guidelines

    Product name Model option ATEX housing Explosion Meter Cable Housing Type option group SKA02 termin. heating 005- ExCam niteZoom T03- T03- 005- T03- 005- T03- 005- T03- 005- T03- 005- T03- 005- T03- 005- VA = Execution in stainless steel...
  • Page 9: Commissioning

    Commissioning Attention! Please observe the national regulations regarding security, installa- tion, and accident prevention (e.g. DIN EN 60079-14) as well as the safety guidelines described in this user manual and the ATEX installa- tion manual! Attention! Please observe the installation and commissioning advices described in the ATEX installation manual! Step 1: Installation ®...
  • Page 10: Step 2: Electrical Connection

    Step 2: Electrical connection Attention! The electrical connection of the equipment must be executed by quali- fied personnel only! Attention! ® It is mandatory that the housing of the ExCam Series has to be grounded via a PE-connection! Attention! The minimum cable length of the connection line must not be less than one meter! The connection cable has to be laid in a protected manner! Attention!
  • Page 11: Potential Equalization

    (fix) 5.2.2 Termination of the connection cable (pigtail) ® Corresponding to the selected model key, the ExCam niteZoom can be delivered with the following cable termination options: Figure 5.2 ExCam niteZoom – T03-VA-B-XXX-K-N Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 11 of 24...
  • Page 12: Figure 5.3 Excam Nitezoom - T03-Va-B-Xxx-K-L

    Figure 5.3 ExCam niteZoom – T03-VA-B-XXX-K-L Figure 5.4 ExCam niteZoom – T03-VA-B-XXX-P-N Figure 5.5 ExCam niteZoom – T03-VA-B-XXX-P-L Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 12 of 24...
  • Page 13: Power Supply & Protection

    5.2.3 Power supply & protection Power supply & protection of the camera’s power circuit 5.2.4 The power supply is to be carried out via the red (RD) as well as black (BK) strand. Connection table: Potential Color (IEC 60757) Potential level Profile Comments +12 VDC…+30 VDC...
  • Page 14: Video Picture Connection (Cvbs)

    Shield (bayonet cap) 5.2.6 Control interface (RS-422) Potential Potential Color Profile Comments (Connection at the control board, (ExCam niteZoom) (IEC 60757) video server, converter etc.) 0.25 mm 0.25 mm 0.25 mm 0.25 mm Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 14 of 24...
  • Page 15: Tests Prior To Switching On Voltage

    5.2.7 Tests prior to switching on voltage Attention! Prior to commissioning, all tests as indicated by the national regula- tions have to be executed. In addition, it is mandatory that the proper functioning of the operating device in accordance with this user man- ual and all other applicable regulation has been executed.
  • Page 16: Figure 5.7 Fcb Control Panel Of The Excam Nitezoom

    Figure 5.7 FCB Control Panel of the ExCam niteZoom Figure 5.8 Control and visualization via a video server Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 16 of 24...
  • Page 17: Figure 5.9 Excam

    (auto functions are disabled). In case that the ExCam niteZoom is supposed to resume certain set- tings after the reboot, it is possible to configure „PRESETS“ via the FCB Control Panel, the video server or the VISCA Control Board.
  • Page 18: Work Preparation

    5.3.1 Work preparation Attention! Please carry out any preoperational work carefully and in accordance with the applicable regulations. Note: Depending on the zone classification (DIN EN 60079-10), it might be necessary to obtain a work permit/clearance! When adjusting the camera settings potentially explosive atmosphere must be avoided by any means! 5.3.2 Opening the pressure-resistant housing...
  • Page 19: Maintenance / Servicing / Alterations

    Repairs and Maintenance Repairs must only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. If in doubt, return the applicable part to SAMCON Prozessleittechnik GmbH.
  • Page 20: Drawings

    Drawings Figure 9.1 T03-VA-K1 Figure 9.2 T03-VA-K2 Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 20 of 24...
  • Page 21: Notes

    Notes Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 21 of 24...
  • Page 22 Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 22 of 24...
  • Page 23 Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 23 of 24...
  • Page 24 Schillerstrasse 17, 35102 Lohra-Altenvers www.samcon.eu, info@samcon.eu fon: +49 6426 9231-0, fax: - 31 Doc.-ID: 131106-PT03BA-SS-ExCam niteZoom_en_rev.01, page 24 of 24...
