Installation

Supply Fans

Remove Shipping Tie Down

Remove supply fan shipping tie down hardware. There are
four places on each fan where hardware needs to be

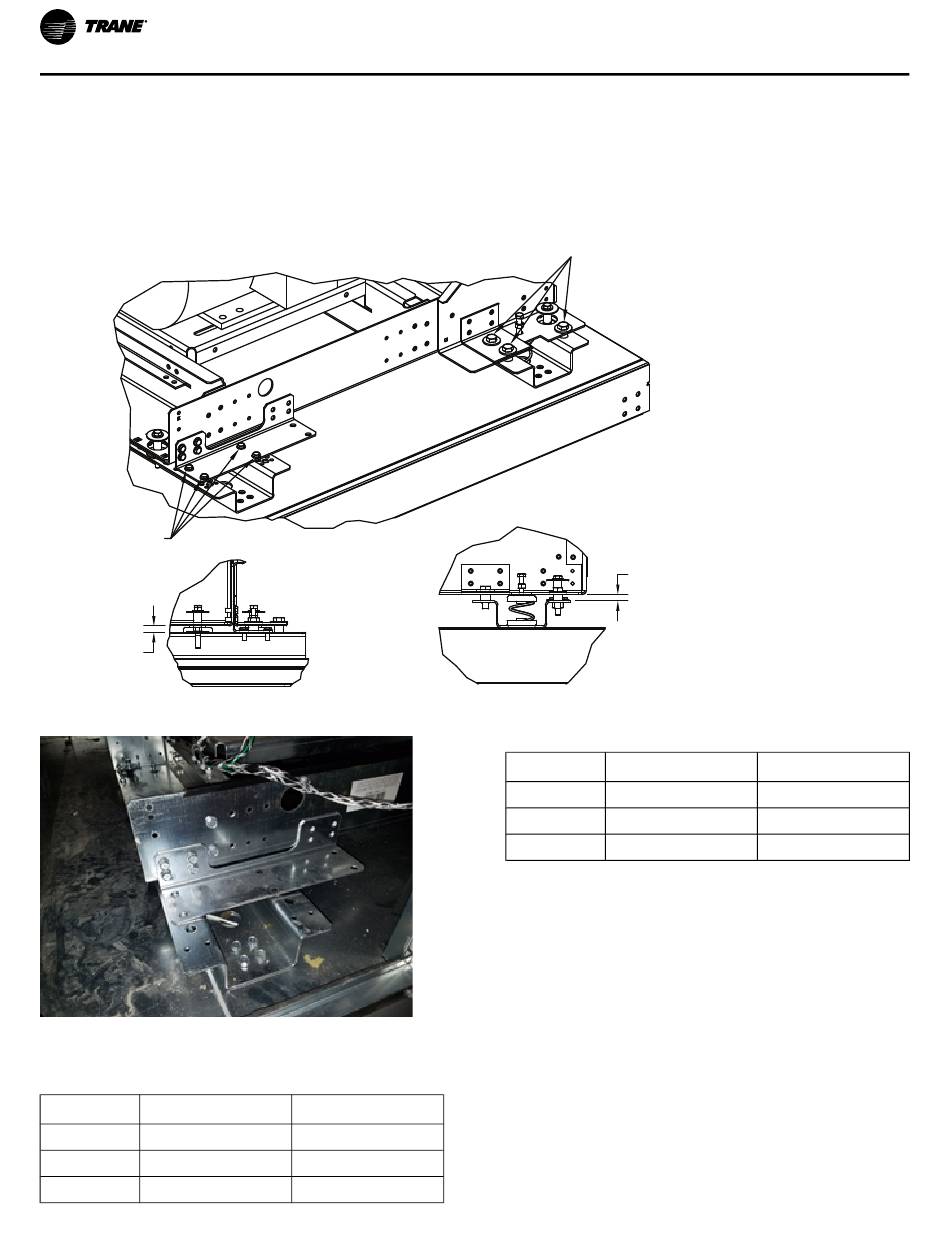

Figure 17. Remove shipping tie-downs
Tiedown
Clearance
Figure 18. Shipping tie-down
Important: Do NOT remove electrical ground wire strap.
Table 11. Supply fan cone overlap measurements
Fan Size Cone Width G (in.)
165 5.18
182 6.44
200 7.05
38
Overlap Q (in.)
0.18
0.38
0.41
removed, shown in Figure 17, p.
to verify there is no wheel-to-cone interference. If
adjustment is required, loosen fan shaft set screw and
reposition fan to get correct wheel/cone overlap.
Tiedown
Clearance
Table 11. Supply fan cone overlap measurements
(continued)
Fan Size Cone Width G (in.)
222 7.83
245 8.62
270 9.45
38. Gently spin each fan
Overlap Q (in.)
0.45
0.50
0.55
