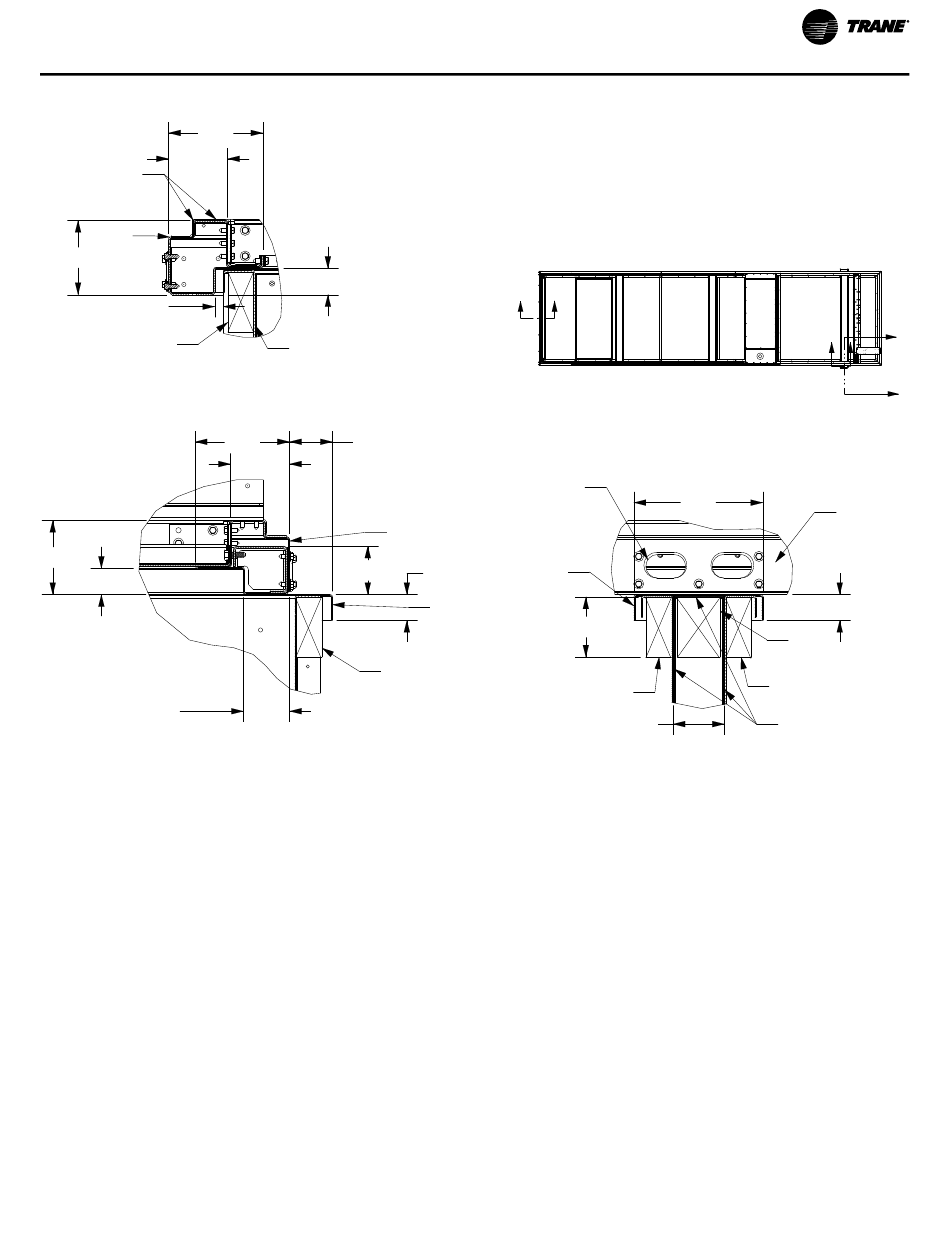

Figure 9. Base and pedestal
5.5"
3.4"
GASKET
BASE
4.3"
.5"
2 X 4 NAILER
TYPICAL ROOF CURB & BASE DETAIL
SECT. A-A
4.3"
1.5"
2.7"
TYPICAL PEDESTAL & BASE DETAIL
(SIDE VIEW OF PEDESTAL)
RT-SVX063G-EN
1.5"
ROOF CURB
5.5" 2.5"
3.4"
BASE
2.8"
2 x 4 NAILER
SECT. B-B
A A
LIFTING LUG
PEDESTAL
1.5"
PEDESTAL
3.5"
2 X 4 NAILER
TYPICAL PEDESTAL & BASE DETAIL
Dimensional Data
PLAN VIEW
7.5"
2 X 4
NAILER
2 X 4 NAILER
3.0"
GASKET
SECT. C-C
(END VIEW OF PEDESTAL)
B
C
C
B
BASE
1.5"
