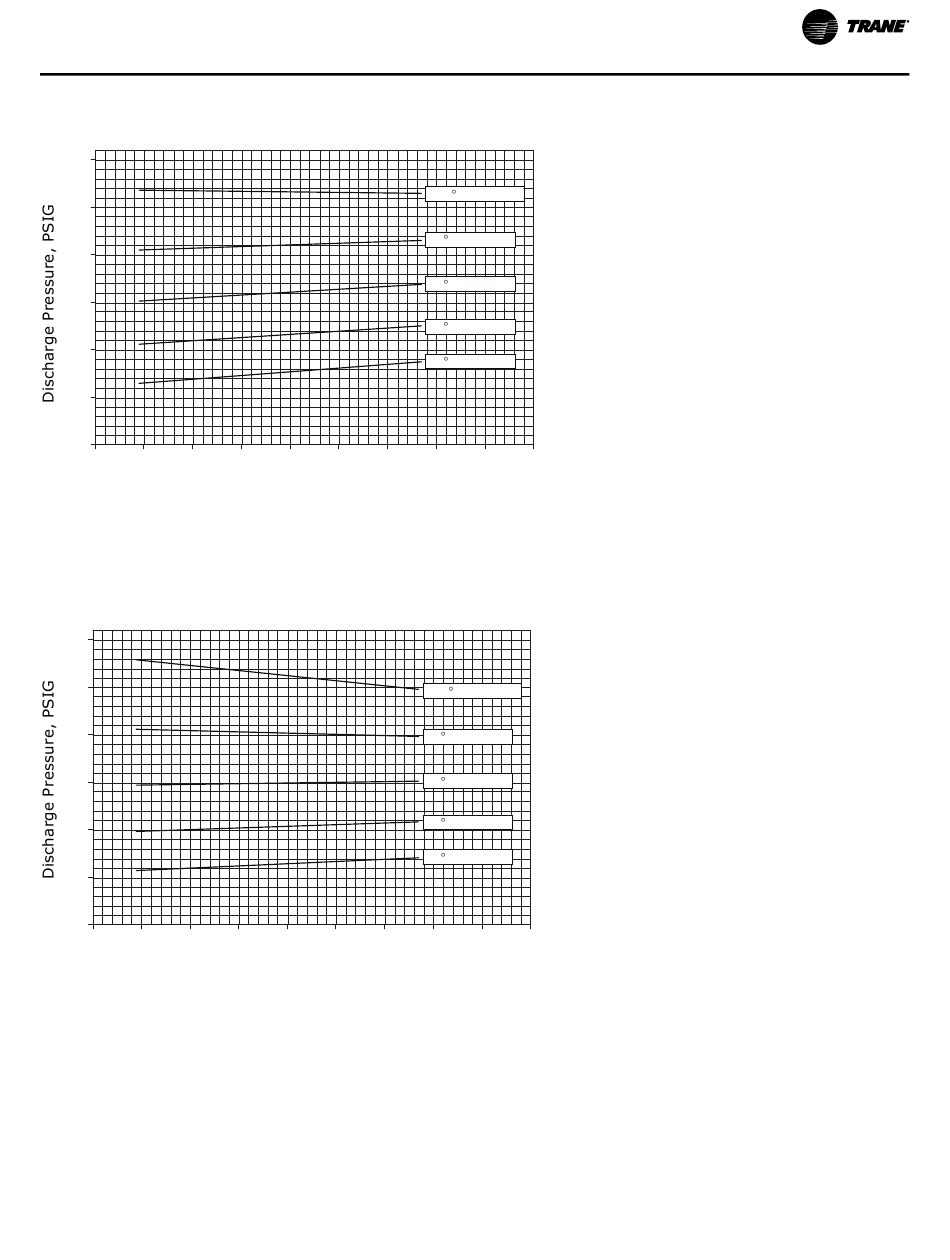

Figure 82. Pressure curve — 60 tons high efficiency
500
450
400
350
300
250
200
90 100 110
Note: Full load acceptable subcooling range: 13-23°F
Figure 83. Pressure curve — 60 tons eFlex variable speed
60T eFlex Variable Speed - circuit 1 only
(Use 60T Standard Capacity for circuit 2)
500
450
400
350
300
250
200
90 100 110
Note: Full load acceptable subcooling range: 13-23°F
RT-SVX063G-EN
60T High Efficiency
120 130 140 150
Suction Pressure, PSIG
120 130 140 150
Suction Pressure, PSIG
105 F Ambient
95 F Ambient
85 F Ambient
75 F Ambient
65 F Ambient
160 170 180
105 F Ambient
95 F Ambient
85 F Ambient
75 F Ambient
65 F Ambient
160 170 180
