Dimensional Data

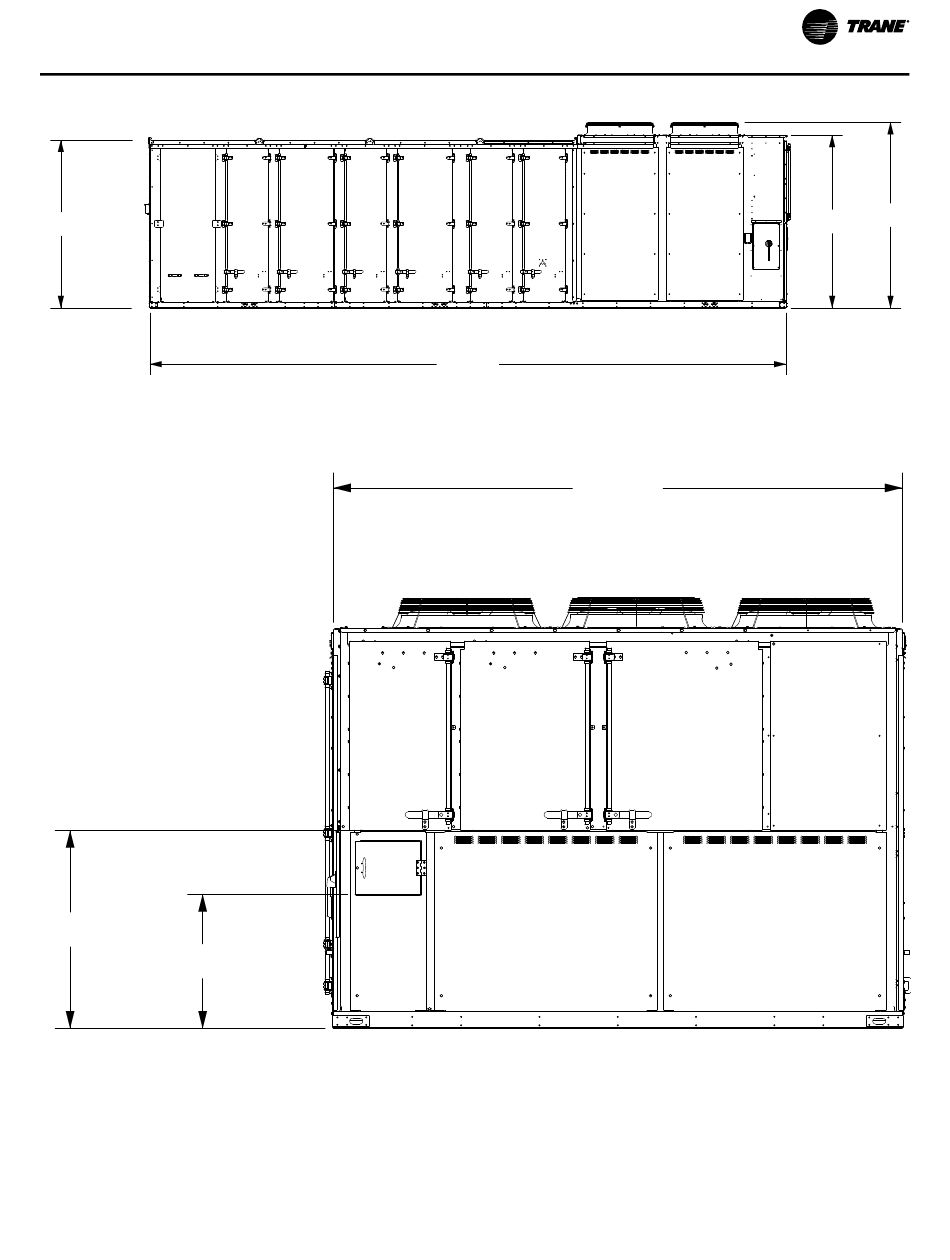

Figure 4. 40 to 55 ton — left view of sample configuration (inches)
81.59 87.66
79.33
300.88
LEFT SIDE VIEW
40-55T / ELECT. HT. / CART. FILTERS
Figure 5. 60 to 75 ton — front view (inches)
116.13
40.38
27.32
FRONT VIEW
60-75T
