Service and Maintenance

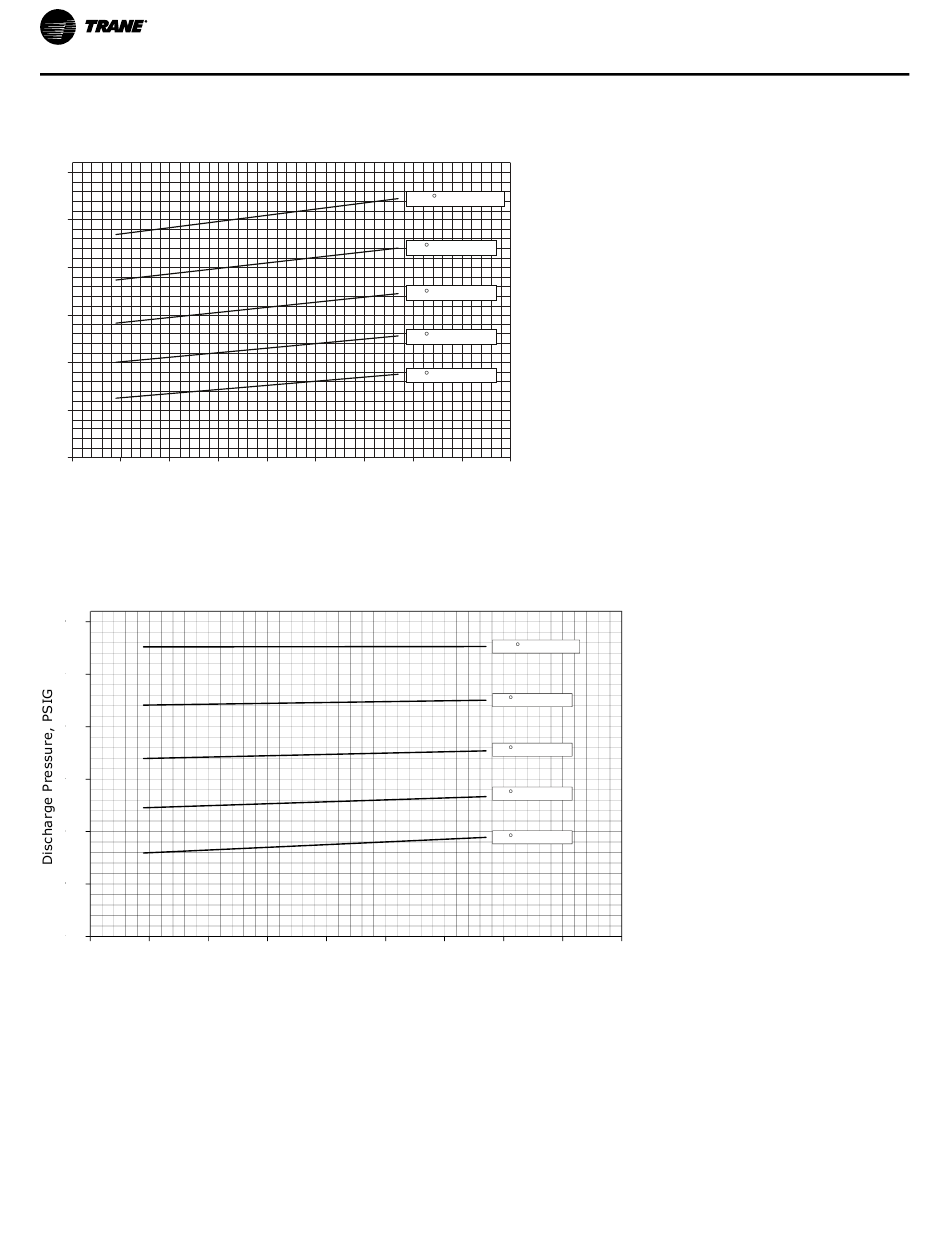

Figure 68. Pressure curve — 25 tons eFlex variable speed
25T eFlex Variable Speed
500
450
400
350
300
250
200
90 100 110 120
Suction Pressure, PSIG
Note: Full load acceptable subcooling range: 19-23°F
Figure 69. Pressure curve — 30 tons standard efficiency
500
450
400
350
300
250
200
90 100 110
Note: Full load acceptable subcooling range: 13-23°F
