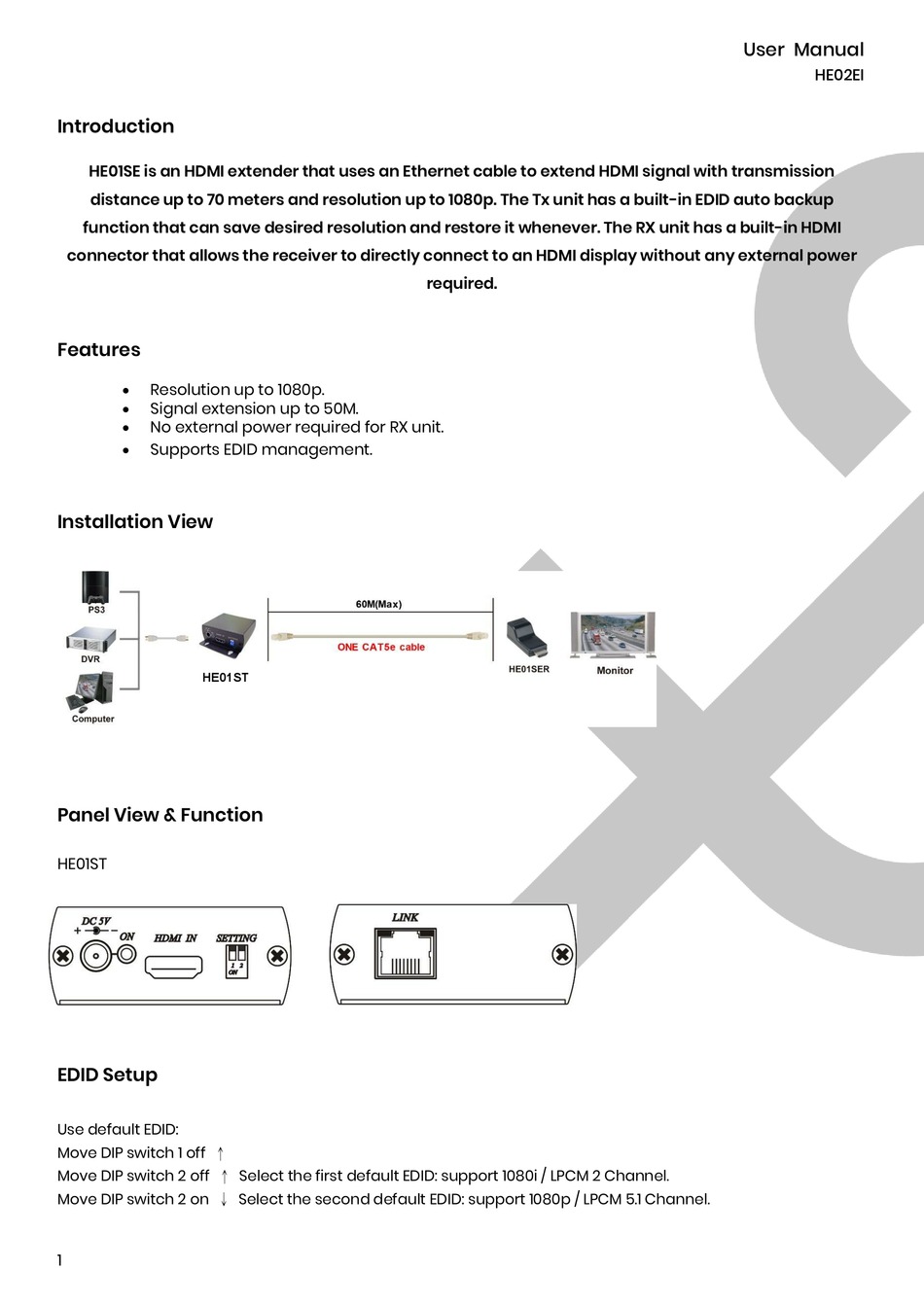

Installation View - SC&T HE01SE User Manual

Introduction
HE01SE is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission
distance up to 70 meters and resolution up to 1080p. The Tx unit has a built-in EDID auto backup
function that can save desired resolution and restore it whenever. The RX unit has a built-in HDMI
connector that allows the receiver to directly connect to an HDMI display without any external power
Features
Resolution up to 1080p.

Signal extension up to 50M.

 No external power required for RX unit.
 Supports EDID management.

Installation View

HE01ST
Panel View & Function
HE01ST
EDID Setup
Use default EDID:
Move DIP switch 1 off ↑
Move DIP switch 2 off ↑ Select the first default EDID: support 1080i / LPCM 2 Channel.
Move DIP switch 2 on ↓ Select the second default EDID: support 1080p / LPCM 5.1 Channel.
1
required.
