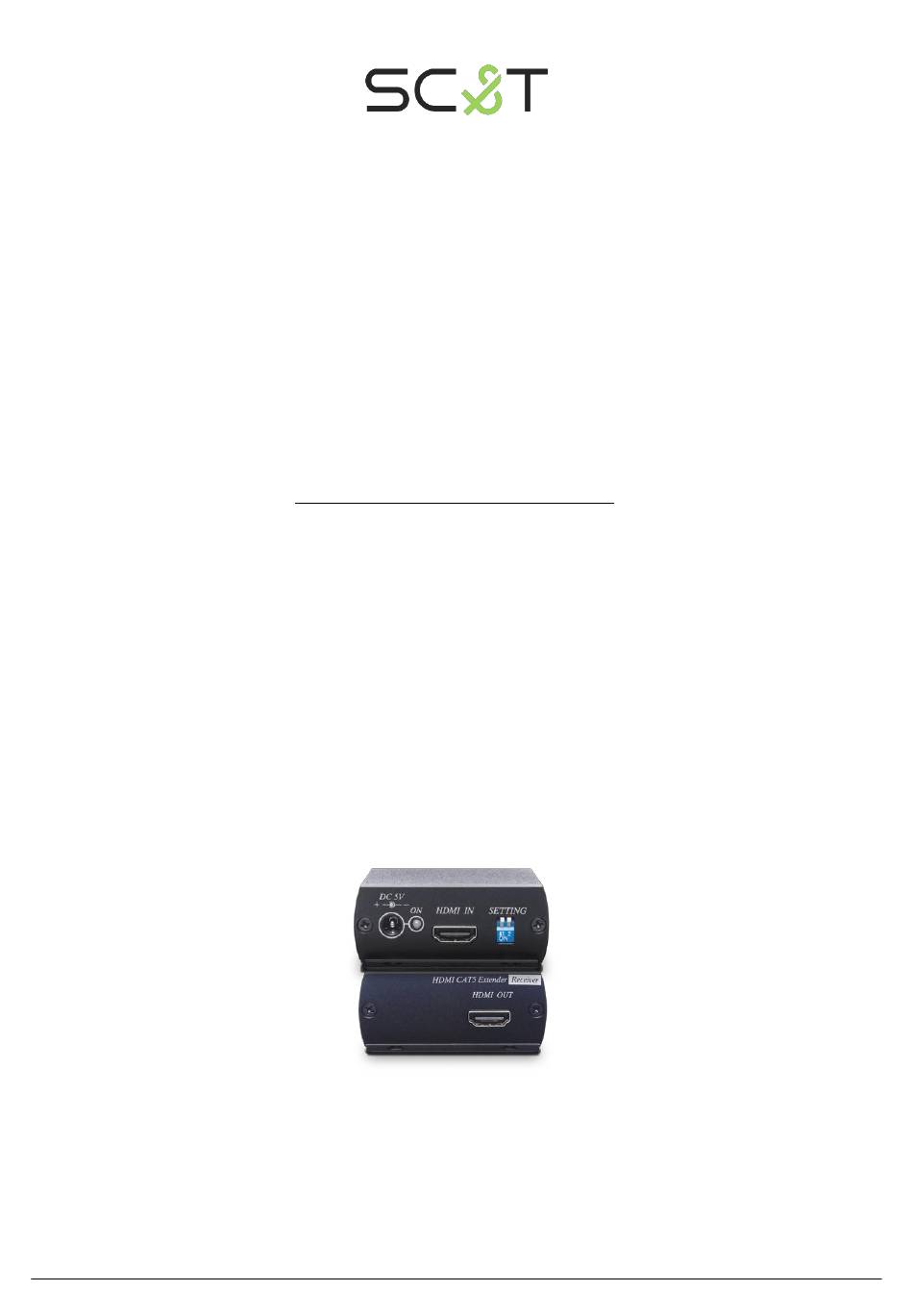

- Page 1 HDMI Extender User Manual Model : HE01S 4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender Smart Cabling & Transmission Corp. V1.0...
- Page 2 HE01S Introduction HE01S is an HDMI extender that can use Ethernet cable to send an HDMI signal for up to 50 meters. Its RX unit requires no power when the transmission distance under 30M. its transmitter unit has EDID auto backup function that can save desired resolution and restore it whenever.
- Page 3 User Manual HE01S GREEN ON Sending power or video to receiver unit YELLOW No data input or unsupported video format Dip Switch function Use the default EDID. ↑ Use the backup TV EDID. ↓ Select the first default EDID: support 1080i / LPCM 2 Channel.
- Page 4 User Manual HE01S HE01ST to HE01SR Resolution/Cable Distance(Meter) 1080p/CAT5e 1080p/CAT6 1080i,720p/CAT5e RJ45 Define Video Link (use TIA/EIA-568-B) 1. Orange-white TMDS DATA2 + 2. Orange TMDS DATA2 - 3. Green-white TMDS CLOCK + / HDMI 5V 4. Blue TMDS DATA1 + 5.
- Page 5 User Manual HE01S Specification ITEM NO. HE01ST HE01SR Support Compliance HDMI 1.3, HDCP, 3D Max. Video Resolution 1080p@60Hz Max. Transmission Distance 60M at 1080i, 40M at 1080p Video Bandwidth 2.25 Gbps Ports & Interfaces Video Input 1 x HDMI Type A...
