- Page 1 HDMI Extender User Manual Model : HE01SI HDMI & IR CAT5e Extender 1080p 40M Smart Cabling & Transmission Corp. V1.0_1604120...
-
Page 2: Installation View

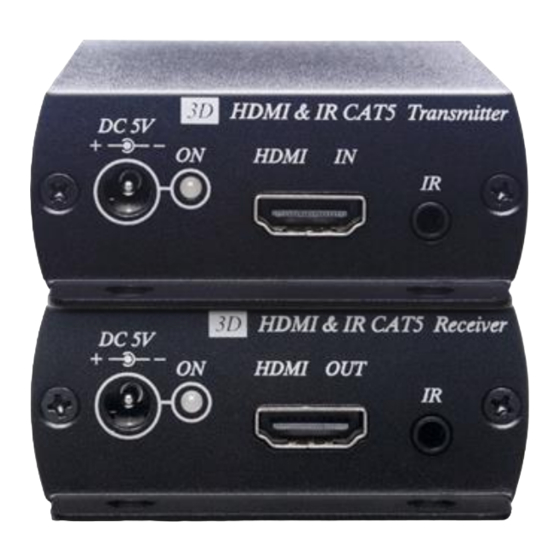

HE01SI Introduction HE01SI is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission distance up to 70 meters and resolution up to 1080p. The extender transmits a 2-way IR signal from either TX or RX side. -
Page 3: Dip Switch Function
User Manual HE01SI Use External EDID Move DIP switch 1 on↓, HE01SIT unplug the power. 2. HE01SIT connect to HDMI connector of TV for auto backup. 3. Plug the power for HE01SIT, TV EDID back up completed (Blue Power LED keep flash) 4. -
Page 4: Transmission Distance
User Manual HE01SI IR Switch Setting 1. When use BD/DVD remote controller (DVD at remote side)，HE01SIR IR switch move to RX and connect with Receiver cable; HE01SIT IR switch move to TX and connect with Emitter cable. 2. When use TV remote controller (TV at remote side), HE01SIT IR switch move to RX and connect with Receiver cable;... -
Page 5: Specification
User Manual HE01SI Caution The wiring must away from any equipment with electromagnetic wave, i.e.: Mobile phone, microwave, radio equipment, fluorescent lamp, power lines. 2. If distance less 20meters and not using IR function, HE01SIR do not need external power adapter.
