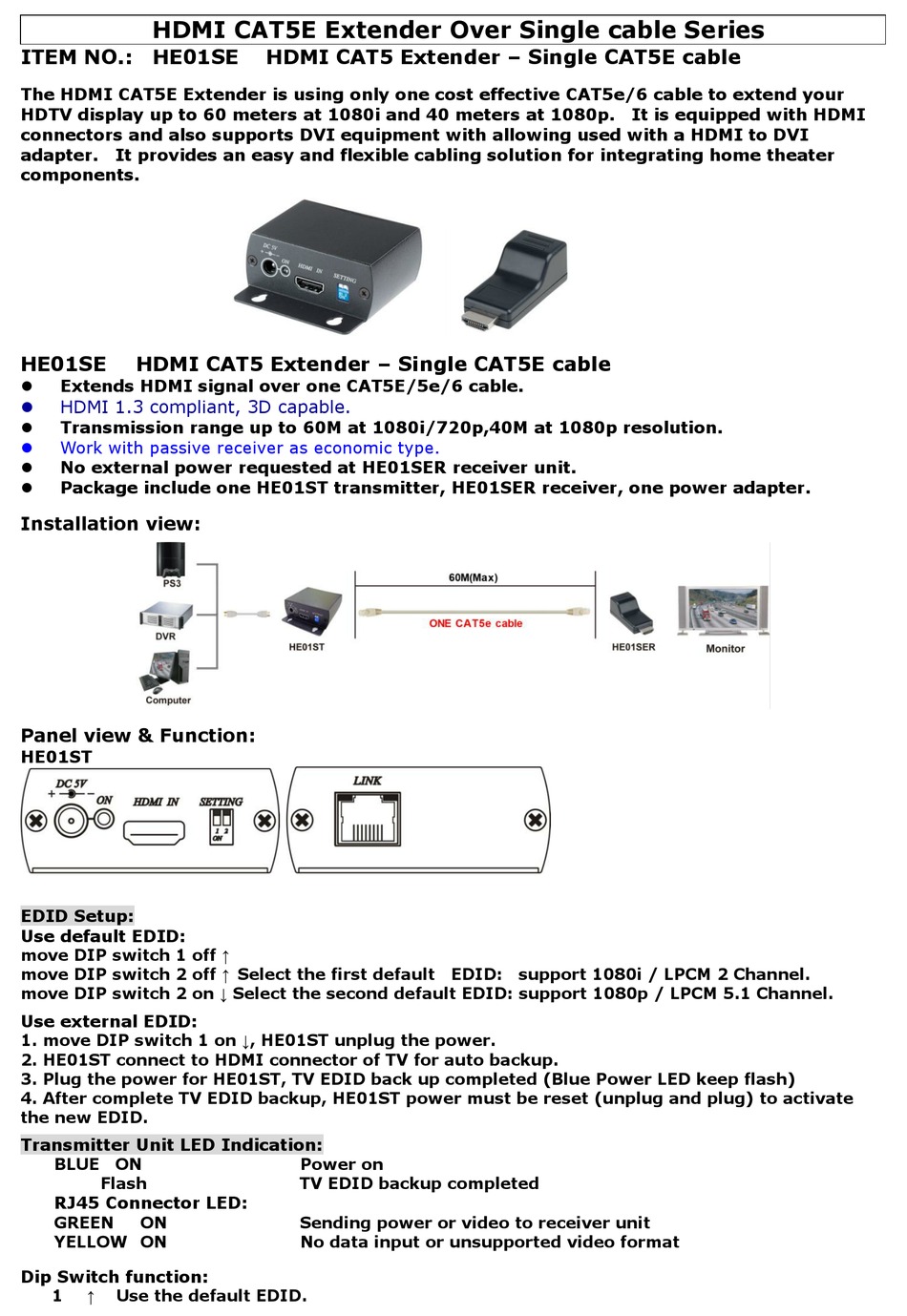

SC&T HE01SE Quick Start Manual

HDMI CAT5E Extender Over Single cable Series
ITEM NO.: HE01SE
The HDMI CAT5E Extender is using only one cost effective CAT5e/6 cable to extend your
HDTV display up to 60 meters at 1080i and 40 meters at 1080p. It is equipped with HDMI
connectors and also supports DVI equipment with allowing used with a HDMI to DVI
adapter. It provides an easy and flexible cabling solution for integrating home theater
components.
HE01SE HDMI CAT5 Extender – Single CAT5E cable
Extends HDMI signal over one CAT5E/5e/6 cable.

HDMI 1.3 compliant, 3D capable.

Transmission range up to 60M at 1080i/720p,40M at 1080p resolution.

Work with passive receiver as economic type.

No external power requested at HE01SER receiver unit.

Package include one HE01ST transmitter, HE01SER receiver, one power adapter.

Installation view:
Panel view & Function:

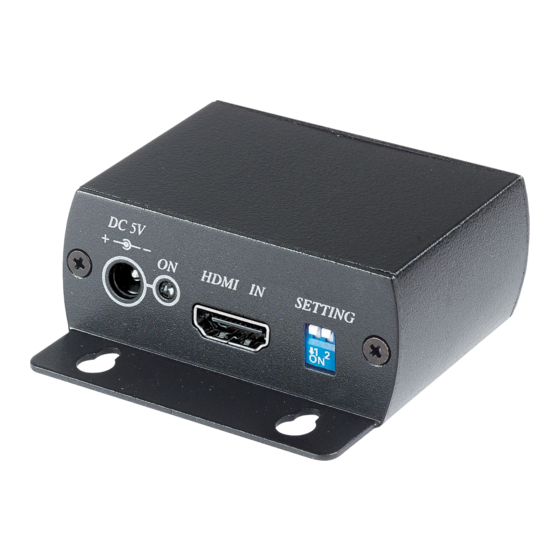

HE01ST

EDID Setup:

Use default EDID:
move DIP switch 1 off ↑
move DIP switch 2 off ↑ Select the first default EDID: support 1080i / LPCM 2 Channel.
move DIP switch 2 on ↓ Select the second default EDID: support 1080p / LPCM 5.1 Channel.
Use external EDID:
1. move DIP switch 1 on ↓, HE01ST unplug the power.
2. HE01ST connect to HDMI connector of TV for auto backup.
3. Plug the power for HE01ST, TV EDID back up completed (Blue Power LED keep flash)
4. After complete TV EDID backup, HE01ST power must be reset (unplug and plug) to activate
the new EDID.

Transmitter Unit LED Indication:

BLUE ON
Flash

RJ45 Connector LED:

GREEN ON
YELLOW ON

Dip Switch function:

1 Use the default EDID.
↑
HDMI CAT5 Extender – Single CAT5E cable
Power on
TV EDID backup completed
Sending power or video to receiver unit
No data input or unsupported video format
