- Page 1 HDMI Extender User Manual Model : HE01ERK Passive HDMI CAT5e Extender Smart Cabling & Transmission Corp. V1.0...

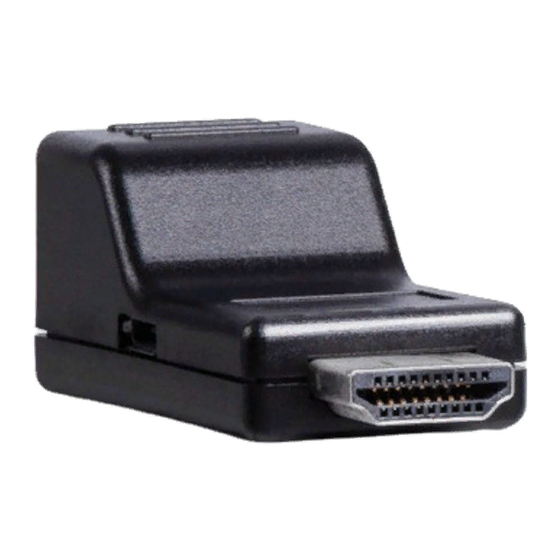

- Page 2 HE01ERK Introduction HE01ERK is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission distance up to 70 meters and resolution up to 1080p. The RX unit has a built-in HDMI connector that allows the receiver to directly connect to an HDMI display without any external power required.
- Page 3 User Manual HE01ERK Transmission Chart Resolution Cable Distance 1920x1200 CAT5e/ CAT6 1920x1080 CAT5e/ CAT6 1280x1024 CAT5e 1280x 720 CAT5e 1024 x768 CAT5e Supported Resolution 1920x1200@60Hz 1920x1080@60Hz 1680x1050@60Hz 1600x1200@60Hz 1600x900@60Hz 1440x900@60Hz 1280x1024@60Hz 1280x960@60Hz ...
- Page 4 User Manual HE01ERK Do NOT connect with any network device to avoid any damage. Package Includes Item Quantity HE01SET (Transmitter) HE01SER (Receiver) Micro USB to DC plug cable Specification ITEM NO. HE01SET HE01SER Support Compliance HDMI 1.3 Video Bandwidth 2.25 Gbps...
