- Page 1 HDMI Extender Series User Manual Model : HE0IC HDMI over Coaxial Extender 1080p 100M Smart Cabling & Transmission Corp. V1.0_1411121 V1.0_1411121...
- Page 2 Introduction HE01C is an HDMI extender that can use a coaxial cable to send HDMI signal with a transmission distance of up to 100M. Its RX unit has a BNC loop-out port to daisy chain for HDMI distribution and extension. For each RX added, you can have one additional HDMI output.

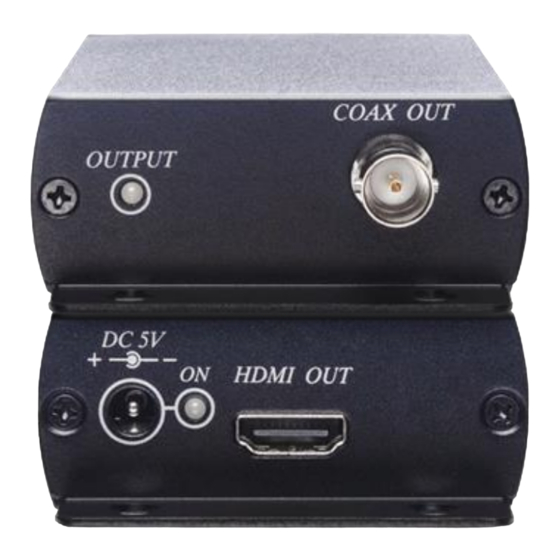

- Page 3 User Manual HE01C LED Indication HE01CT GREEN Power & Signal Power on FLASH Not support HDMI input format BLUE SDI signal SDI signal output HE01CR GREEN Power BLUE SDI signal lock Panel View HE01CT HE01CR HE01CT Switch Instruction Video Support: 480i, 576i, 720p@50/59.94/60Hz, ↑...
- Page 4 User Manual HE01C Specification ITEM NO. HE01CT HE01CR Support Max. HDMI Resolution 1080p@60Hz Max. SDI Resolution 3G-SDI Max. Transmission Distance 100M over 1.5G/ 3G Coaxial Cable or Greater Audio Format LPCM 7.1 Channels, 48kHz, 16 / 20 / 24Bit Ports & Interfaces...
