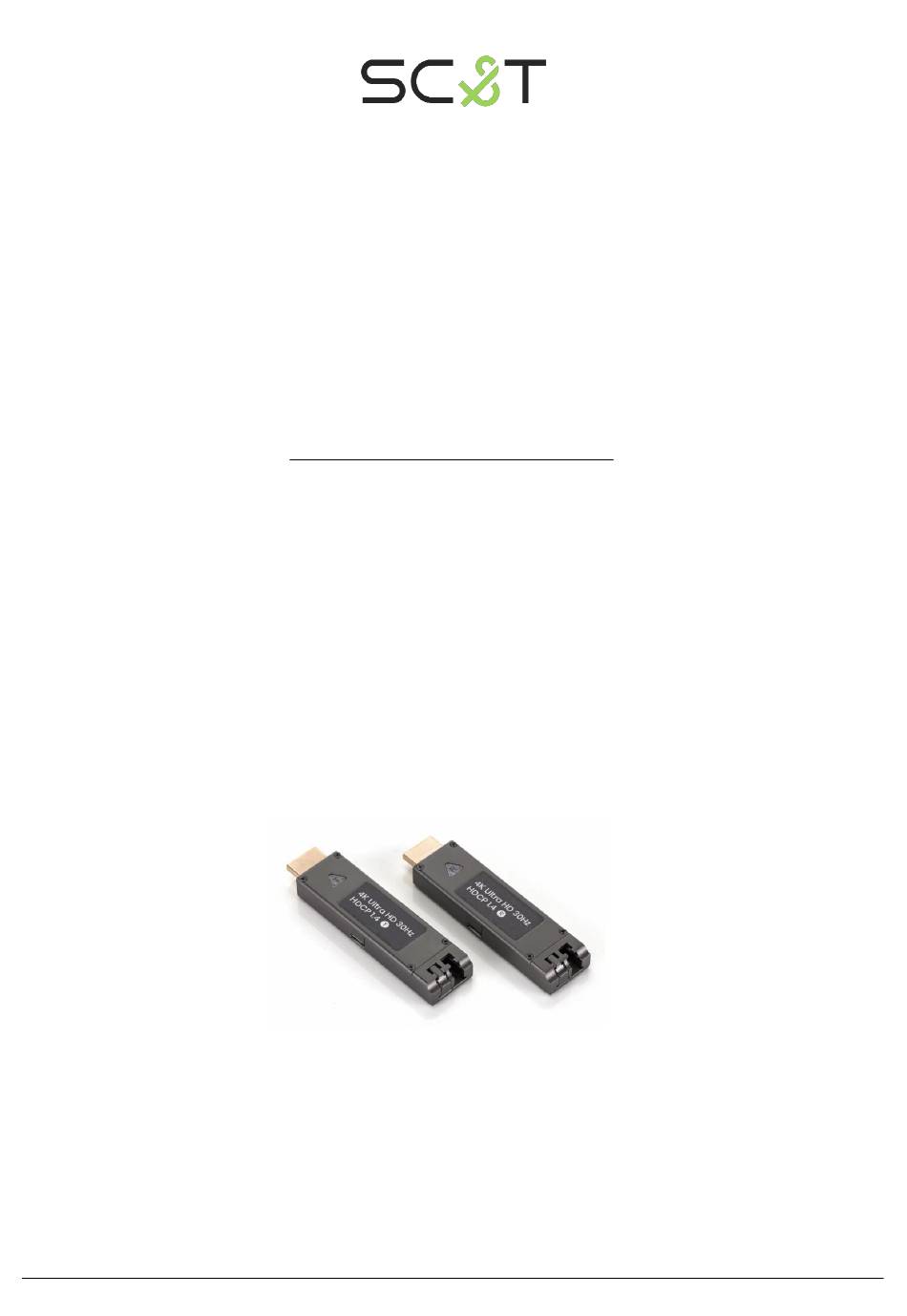

- Page 1 HDMI Extender Series User Manual Model : HE01F-4K Compact 4K HDMI Fiber Extender Smart Cabling & Transmission Corp. V1.0 V1.0...
- Page 2 HE01F-4K Introduction HE01F-4K is an HDMI extender that uses a single fiber optic cable with LC connections to transmit uncompressed 4K 30Hz HDMI signals, with EDID and HDCP signals supported for both multi-mode and single-mode fibers. This small compact size allows you to easily finish installation for any audiovisual applications.
- Page 3 User Manual HE01F-4K Panel view Interface Description HDMI Type-A Connector To connect an HDMI device LED Indicator To indicate power & Link status LC Optical Connector To connect a single/ multi-mode fiber cable Micro USB Connector To input 5V 2A power Installation Guide Connect HE01FT-4K (The transmitter) to an HDMI source.
- Page 4 User Manual HE01F-4K Caution The product DOES NOT support CEC due to EDID pass-through. To support CEC, please contact us for customization. This product is designed for indoor applications. If it is desired for outdoor use, please install ...
- Page 5 User Manual HE01F-4K Specification Model HE01FT-4K HE01FR-4K Compliance Standard HDCP 1.4, 3D, DDC Video Resolution 4K@30Hz 4:4:4 Data Rate 10Gbps 1 KM over single-mode fiber Transmission Distance 300M over multi-mode fiber Wavelength 1310nm 1550nm Ports & Interfaces Video Input 1 x HDMI Type-A...
