- Page 1 HDMI Extender User Manual Model : HE01SL HDMI CAT5e Extender with Chainable Receiver Smart Cabling & Transmission Corp.
-
Page 2: Installation View
HE01SL Introduction HE01SL is an HDMI extender that can extend HDMI signal with resolution up to 1080p and transmission distance up to 70M. It also has a loop-out port at RX unit for daisy chain that can get multiple HDMI outputs by repetitively connecting with the chainable RXs. -
Page 3: Dip Switch Function

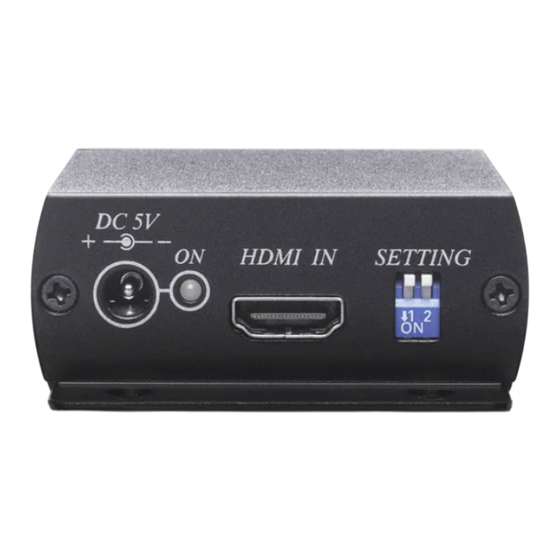

User Manual HE01SL Transmitter Unit LED Indication BLUE Power on Flash TV EDID backup completed RJ45 Connector LED GREEN Sending power or video to receiver unit YELLOW No data input or unsupported video format Dip Switch function 1. ↑ Use the default EDID. -
Page 4: Transmission Distance
User Manual HE01SL Transmission Distance The transmission distance will be affected from different HDMI equipment and cable quality. Lower resolution and good quality cable could extend longer distance up to 100 meters. HE01ST to HE01SLR Resolution/Cable Distance (Meter) 1080p/CAT5e 1080p/CAT6... -
Page 5: Specification
User Manual HE01SL Specification ITEM NO. HE01ST HE01SLR Support Compliance HDMI 1.3, HDCP, 3D Max. Video Resolution 1080p@60Hz Max. Transmission Distance 60M at 1080i, 40M at 1080p Video Bandwidth 2.25 Gbps Ports & Interfaces Video Input 1 x HDMI Type A...
