- Page 1 HDMI Extender User Manual Model : HE01ERK Passive HDMI CAT5e Extender Smart Cabling & Transmission Corp. V1.0...

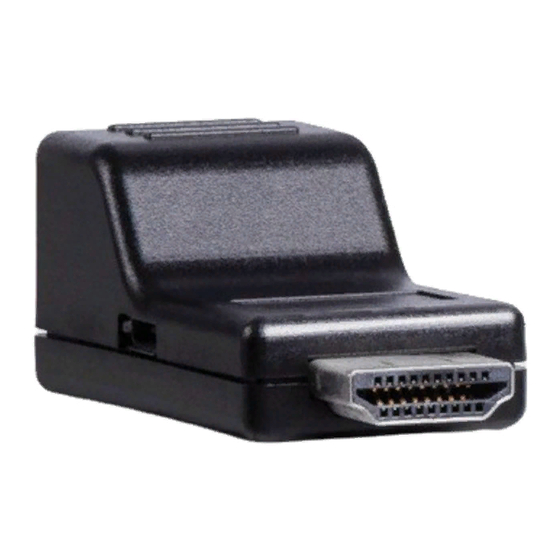

- Page 2 HE01ERK Introduction HE01ERK is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission distance up to 70 meters and resolution up to 1080p. The RX unit has a built-in HDMI connector that allows the receiver to directly connect to an HDMI display without any external power required.
- Page 3 User Manual HE01ERK Transmission Chart The transmission distance will be affected by DVR/NVR or cable quality. HE01SET to HE01SER Resolution Distance based on CAT5e 1920x1200 1920x1080 1280x1024 1280x 720 1024 x768 Supported Resolution 1920x1200@60Hz 1920x1080@60Hz 1680x1050@60Hz 1600x1200@60Hz ...
- Page 4 3. The wiring must be straight through, do not circle the cable to avoid crosstalk interference. 4. HDCP is not supported. HE01ERK isn’t networking product, thus please do not connect with any Ethernet device to avoid any damage. Package Contents:...
- Page 5 User Manual HE01ERK Specification ITEM NO. HE01SET HE01SER Support 2.25 Gbps (HDMI 1.3) Video Bandwidth Up to 1920x1200@60hz Resolution 1.2 Vp-p Input TMDS Video Signal 5 Vp-p (TTL) Input DDC Signal Transmission Distance 40M@1920x1200, 70M@1280x720 Ports & Interfaces HDMI Connector...
